BRAHMA MF2 - PRODUCT DIMENSIONS AND ACCESSORIES; OVERALL DIMENSIONS; ACCESSORIES; CONNECTION SYSTEM

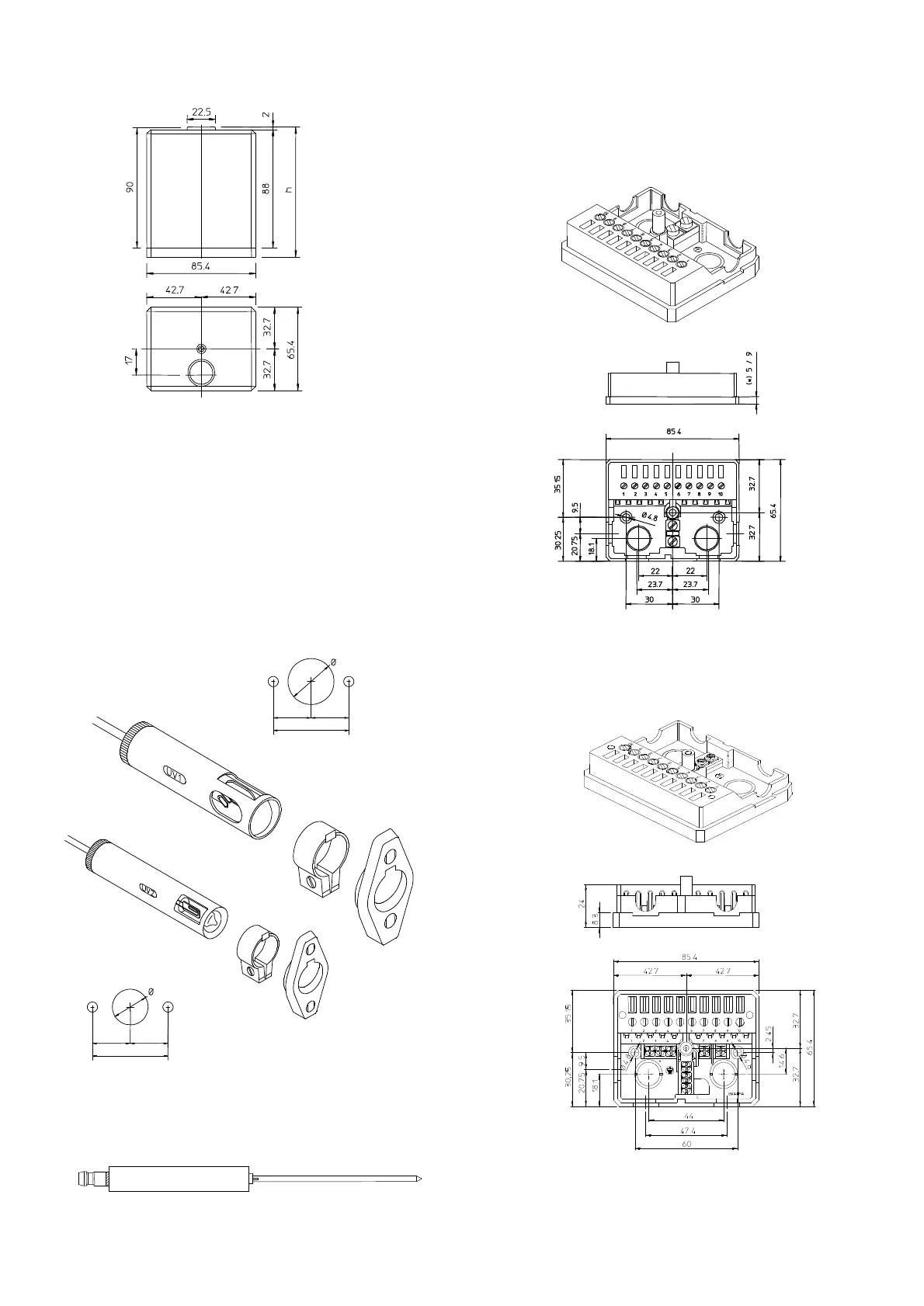

OVERALL DIMENSIONS
The main overall dimensions of the control box inclusive of
connecting sockets are shown in Fig.1.
Fig.1
ACCESSORIES
The control is supplied with inbuilt reset button and lockout
signal.
It can be fitted with UV phototube sensors (see Fig.2) and
with kanthal flame detector probes in different executions
(see, for instance, Fig. 3).
Fig.2
CONNECTION
As regards the interconnection system of this control,
several solutions are possible and different types of
connecting sockets can be employed (see Fig.4 and Fig.5).
Socket NE differs from sockets D and E for its dimensions
and the greater number of terminals connecting neutral and
earth.
Sockets D - E
Fig.4
Socket NE
Fig.5
h: Dimensions depending on the type
95 with socket D
99 with socket E
98.3 with socket NE
of socket:
Drilling plane UV1
22.5
18.5 18.5
37
Drilling plane UV2
17
17
34
17.5
M4 fixing screws
M4 fixing screws
(*) The dimensions differ depending on
the type of socket: 5 with socket D
9 with socket E
2/4 4015_r00
Fig.3
