Brammo Ariel Atom 2 2006 - Schedule I: General Reference

48
A-ARM ADJUSTMENT

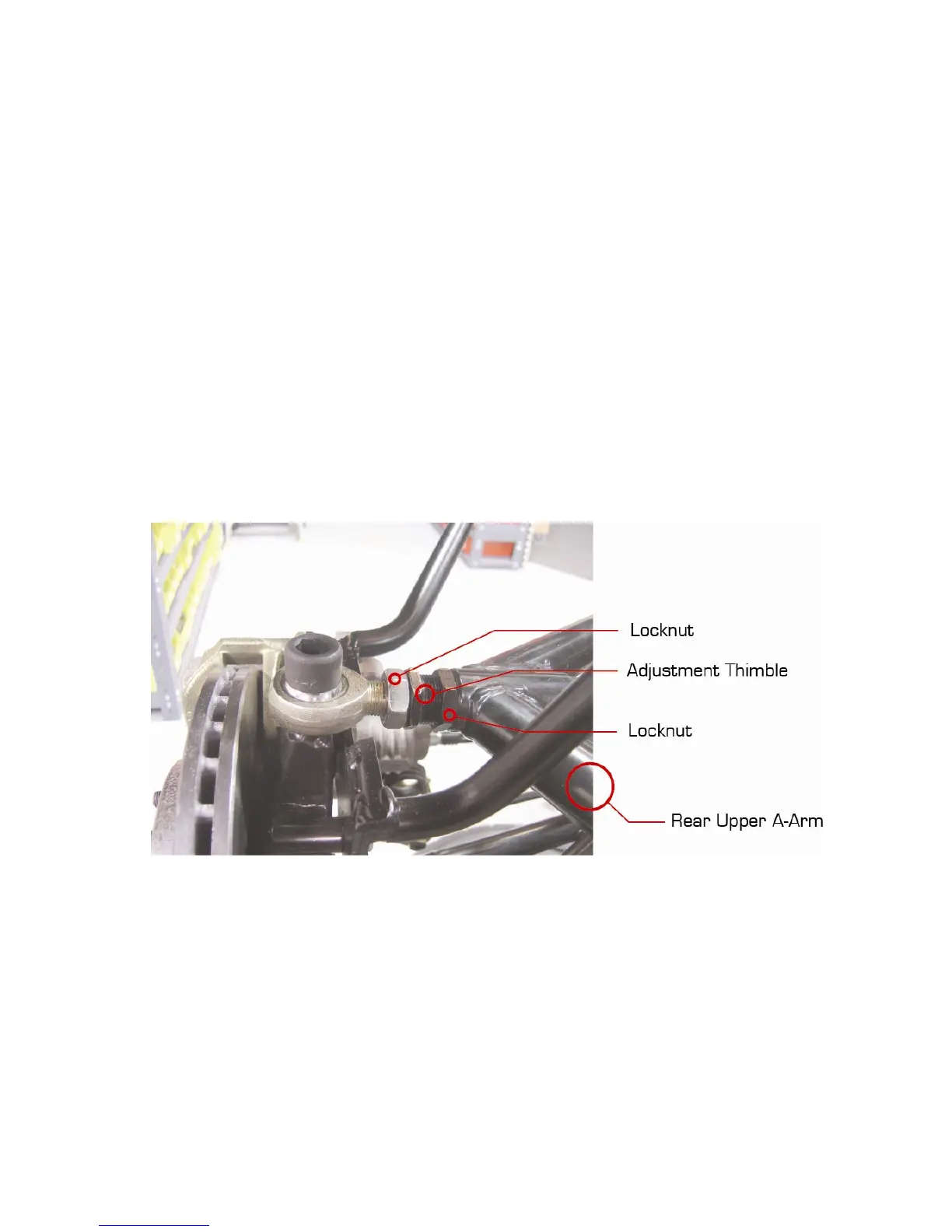

A-Arm adjustments are made with the double threaded "adjustment thimbles" (see photograph) which are
located on both the front and rear upper A-arms for use in adjusting wheel camber. The same mechanism can
be found at the rear lower A-arm for toe adjustment. The adjustment thimbles are secured with lock nuts which
must be re-tightened after any adjustments are made. The vehicle must be re-aligned after any camber
adjustment is made.
