BRAND-MAN Rustler2 - Steps 3-4: Casters and Magnet Panels

10
ASSEMBLY INSTRUCTIONS (CONTINUE)

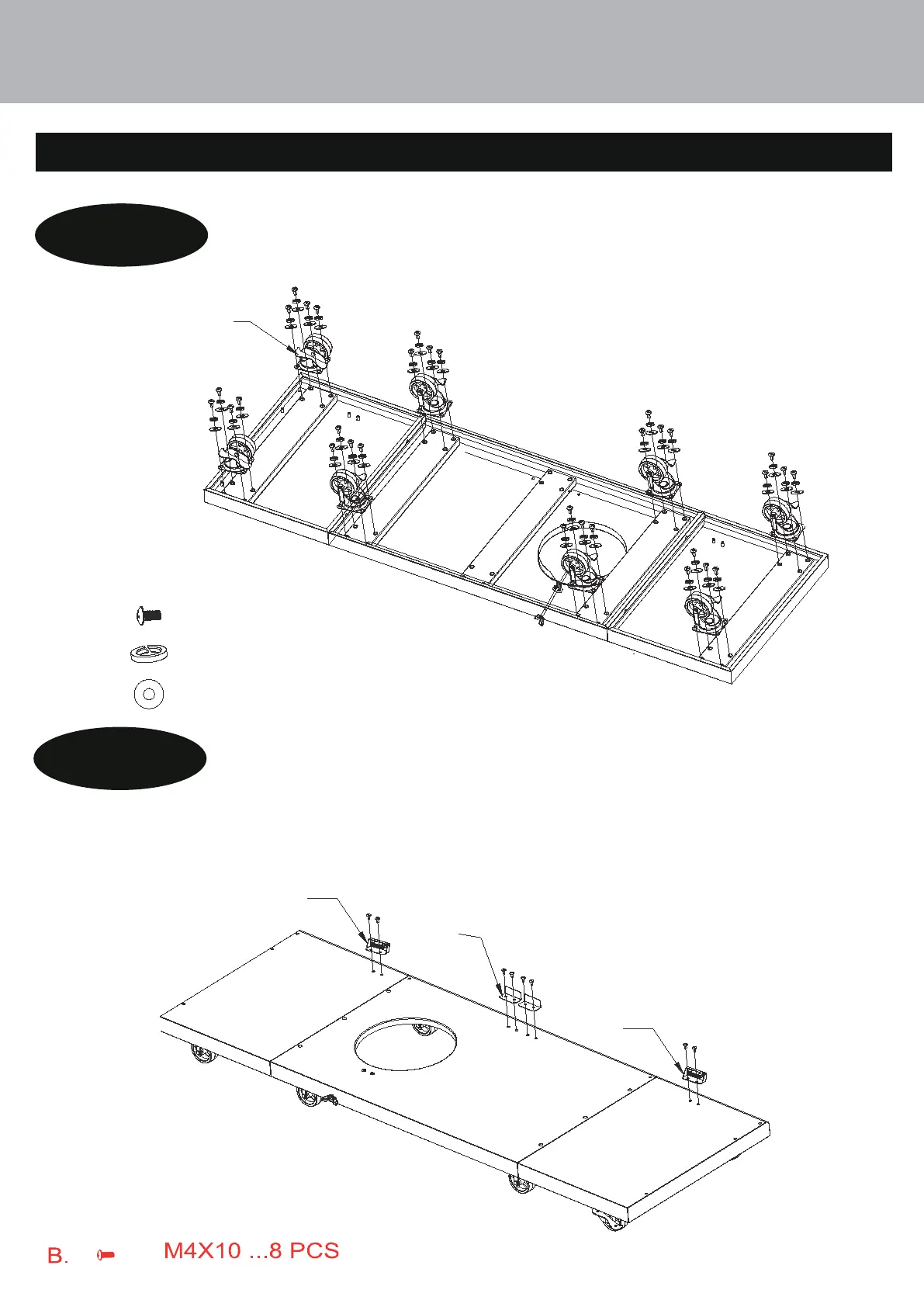

a) Attach all eight Cast rs (15) onto the Cabinet Base Assembly prepared in Step 2,
with four screws (H), four spring washer (K) and four flat washer (I) for each wheel
as shown in the diagram the below.
Step 4
a) Turn the Cabinet Base Assembly over.
b) Secure one Side Cabinet Door Bottom Magnet (42) to Left Bottom Cabinet
Panel (36) with two screws (B).
c) Repeat STEP 4 b) for Bottom plate of right cabinet (30).
d) Attach both Magnet Panel (18) to Cart Bottom Panel (14) with two screws (B) for each
as shown in the diagram.
15
42
18
42
Step3
M6X16 ...32 PCS
H
.
Ø6.2 Spring washer ...32 PCS
K
.
Ø6.2*Ø10 FLAT WASHER ...32 PCS
I
.
