ASSEMBLY INSTRUCTIONS (CONTINUE)

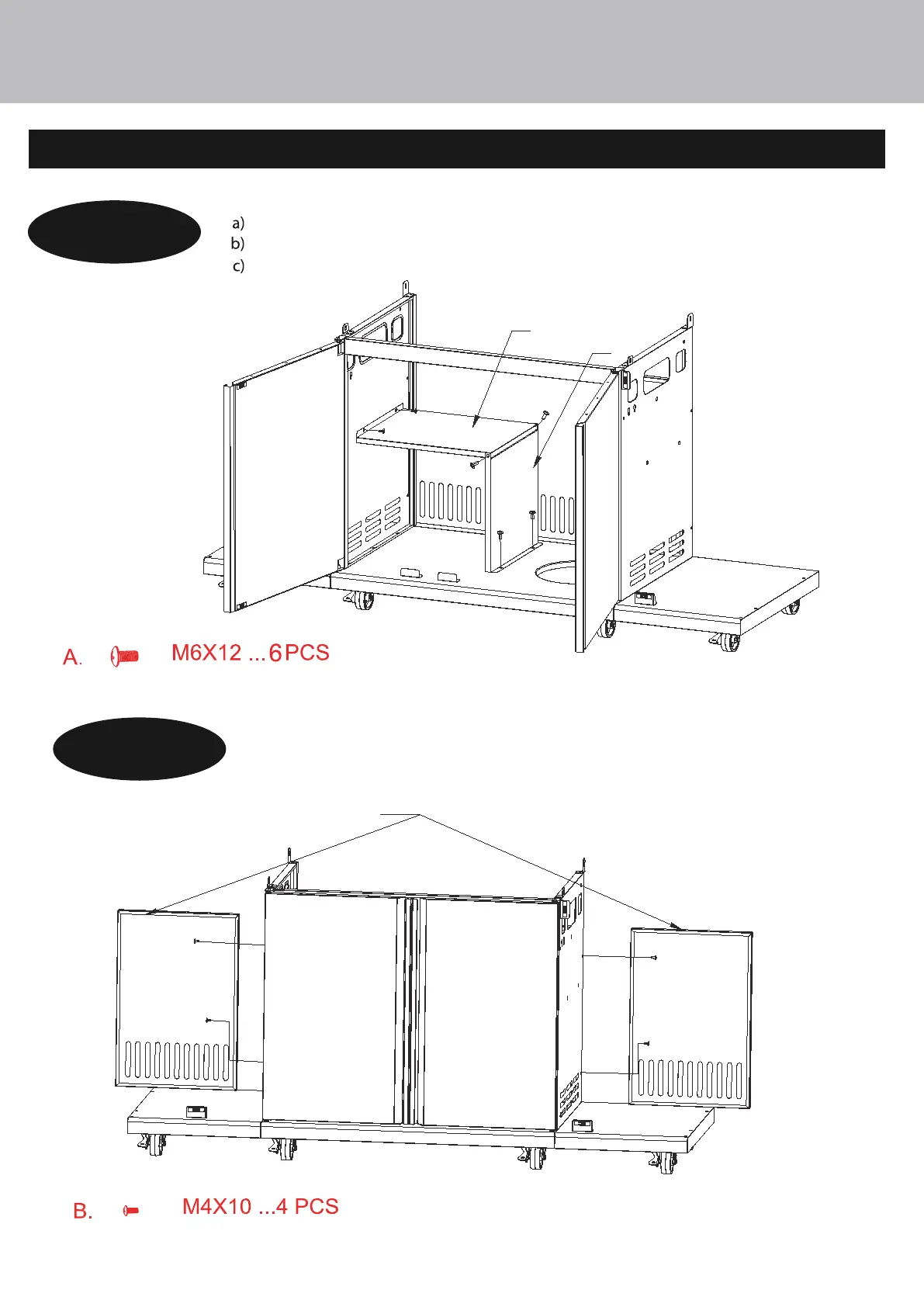

Step 9

Attach Cabinet Internal Panel 1 (25) to Cart Bottom Panel (14) with two screws (A).

Attach Cabinet Internal Panel 2 (29) to Cart Left Side Panel (19) with two screws (A).

Secure both panels together with two screws (A) as shown in the diagram.

Step 10

a) Attach one Side Cabinet Back Panel (31) to the left rear side of

prepared frame assembly from with two screws (B).

b) Repeat STEP 10 a) for right side as shown in the diagram.
