BRAND-MAN Rustler2 - Steps 13-14: Side Shelf Attachment

15

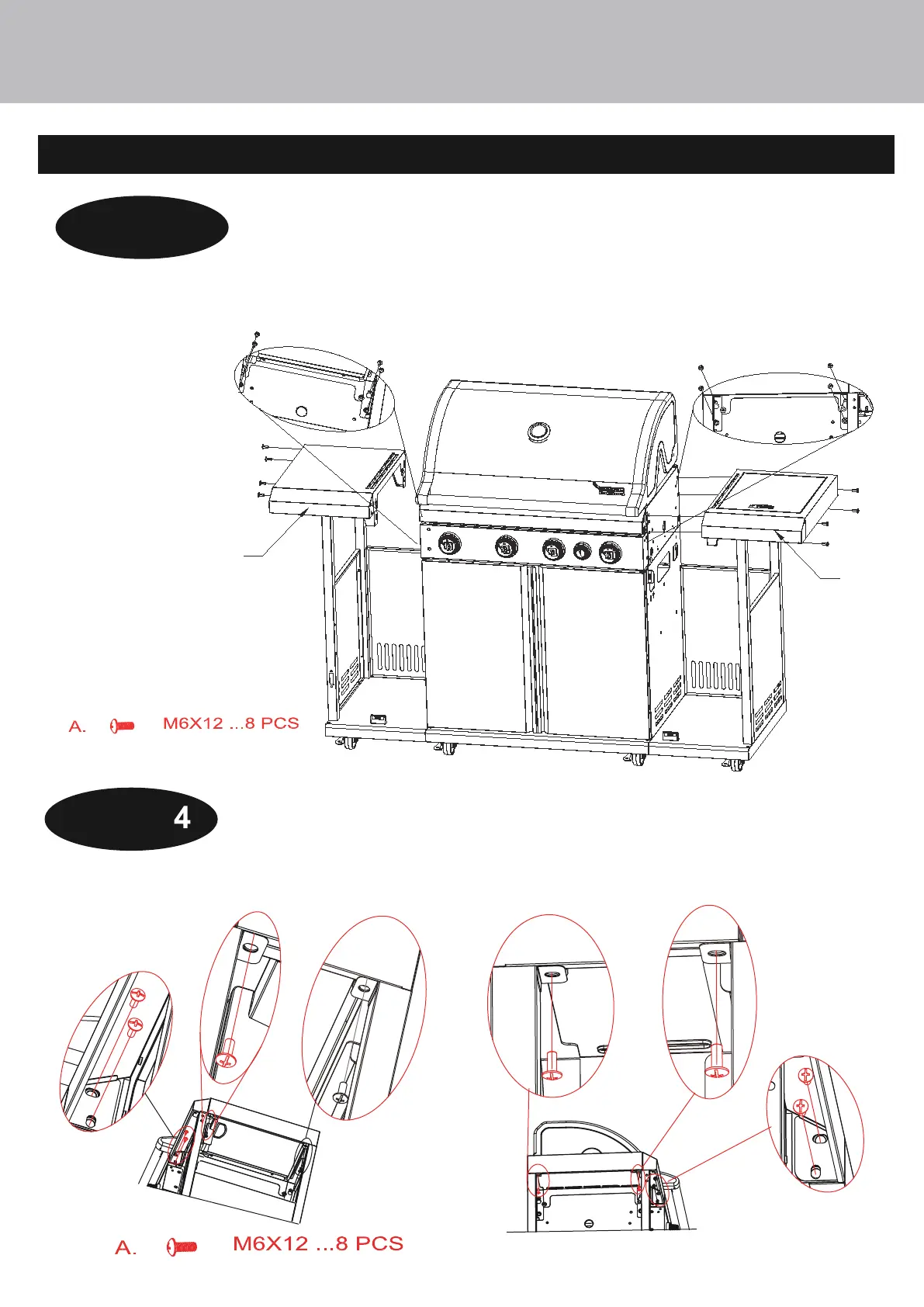

ASSEMBLY INSTRUCTIONS (CONTINUE)
Step 13
leaving screws extended by approximately ¼ inch.
b) Align Left Side Shelf (12) onto extended screws. Press down on the Left Side Shelf (12)
to lock it onto the screws.
c) Align and secure with a further two screws (A).
d) Repeat STEP 13 a-c) for the Right Side Shelf (13) as shown in the diagram.
Step 1
a) Further secure the Left Side Shelf (12) with two more screws (A) on the front of
the side shelf into the Firebox Assembly.
b)
Then an additional two screws (A) at the front and back, to secure with Left
Cabinet Side Panel.
c)
Repeat STEP 14 a-b) for the Right Side Shelf (13) as shown in the diagram.
13
12
a) Attach Left Side Shelf (12) by partially fastening two screw (A) into left side of rebox
