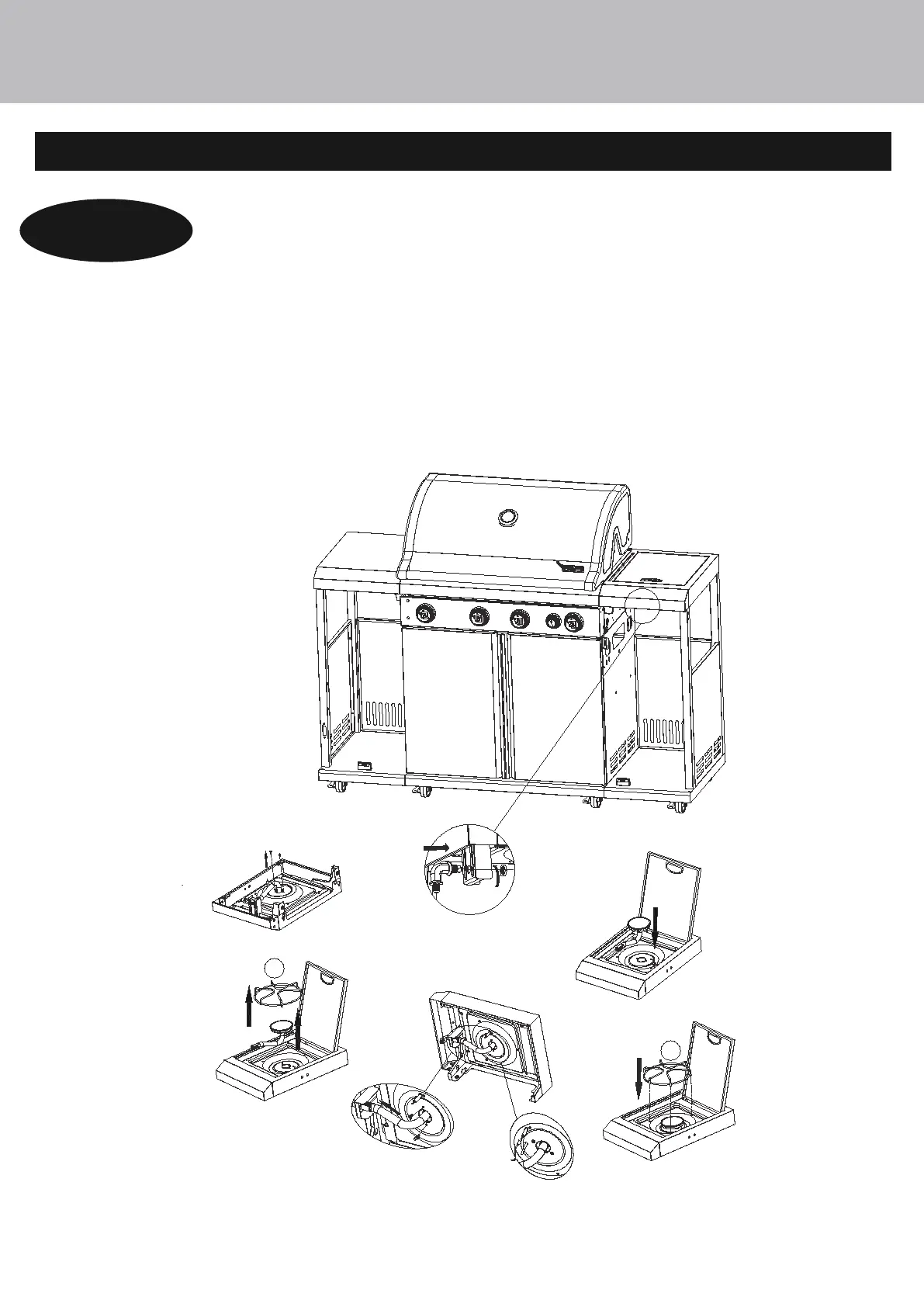

ASSEMBLY INSTRUCTIONS (CONTINUE)
Step 15
a) Unscrew the side burner as shown in Figure 1.
b) Remove the side burner rack and side burner as shown in Figure 2.
c) Attach the side burner nozzle onto the bracket under the Right Side Shelf as shown in Figure3.
d) Re-assemble the side burner, ensure the side burner nozzle enters into the burner pipe and
e) Connect the Ignition line by inserting it onto the electrode (Figure 6).
Make certain the connection is secure.
fix it as shown in Figure 5.
f) Put back the side burner rack.
Figure 1
Figure 2
Figure4
46
Figure 5
Figure 6
Figure 7
46
Figure 3
