ASSEMBLY INSTRUCTIONS (CONTINUE)

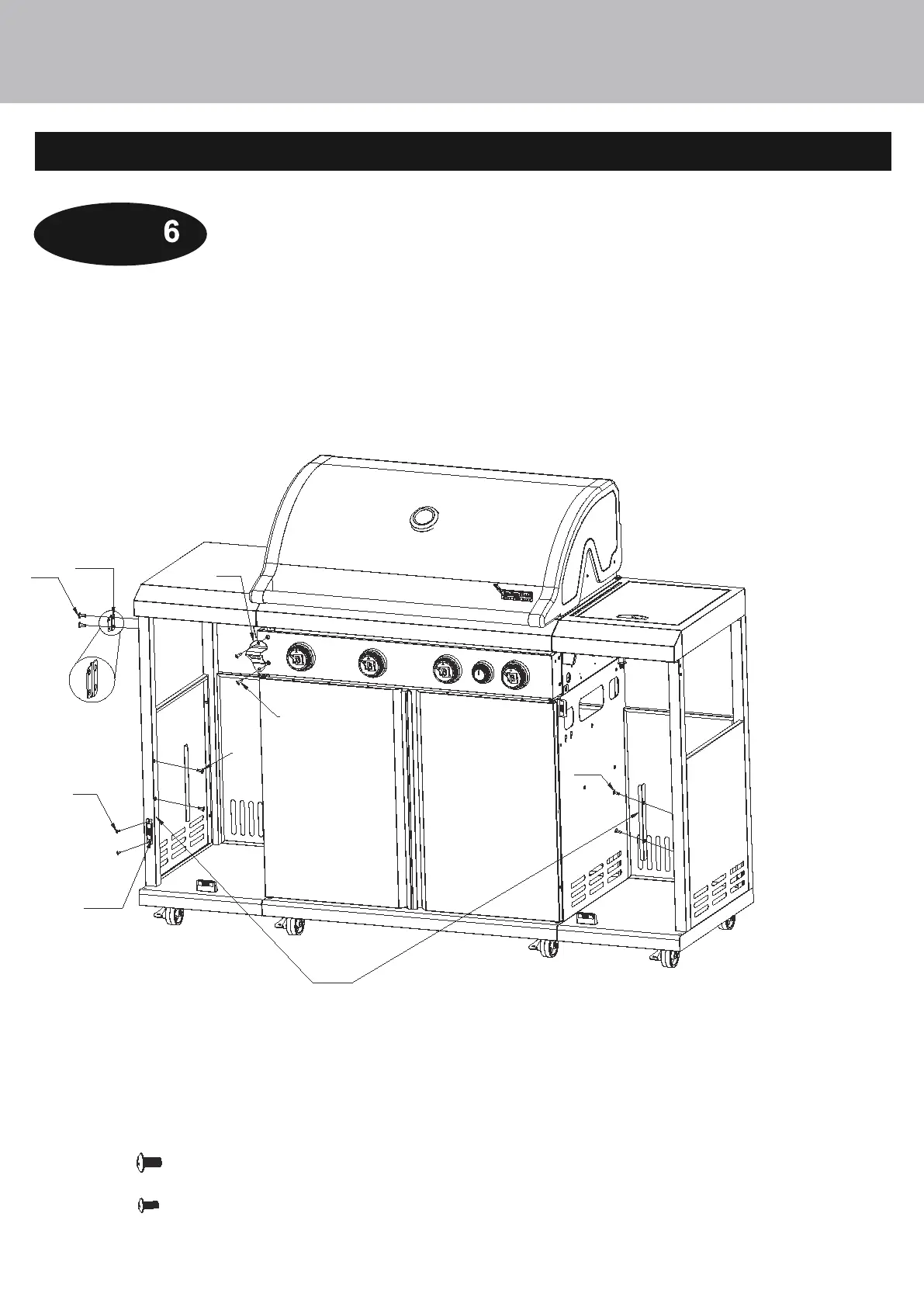

Step 1
a) Install the Left Cabinet Door Pin Support (40) onto the front top side of the Left Cabinet
Side Panel (38) with two screws (A) as shown,
b) Next install the Side Cabinet Down Side Door Magnet (43) on the front of the Left Cabinet
Side Panel (38) with two screw (A) as shown.
c) Attach the Bottle opener (2) with two screws (A) to frame control panel as shown in
diagram.
d) Attach the two Side Door Stoppers (39) with two screws (A) for each as shown below.
2
A
40
A
43
B
39
A
A
M4X12 ...2 PCS
B.
A.
M6X12 ...8 PCS
To Next Page
