19
ASSEMBLY INSTRUCTIONS (CONTINUE)

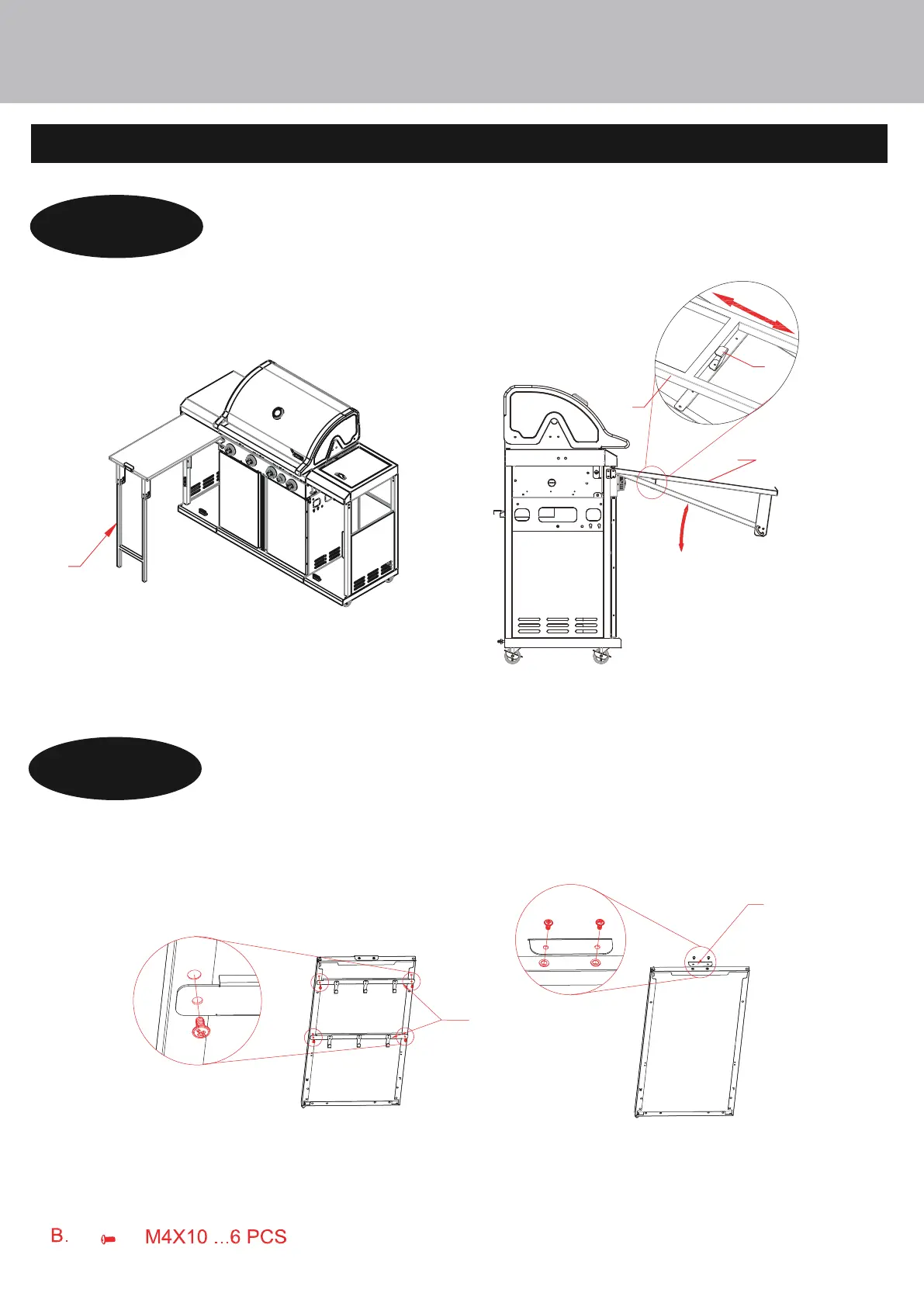

Step 19
a) To open Left Cabinet Door (45), lift bottom of door up and unfold Left Cabinet
Door Leg (37) forming additional counter space.
b)To close, fold the Leg (37) back and rest it on the Support (35) as shown in below diagram.
Step 20
a) Attach the remaining Side Cabinet door handle (41) to top edge of Right
Cabinet Door Panel (34) with two screws (B) as shown in the diagram.
b) Fasten both Right Cabinet Hook Support (33) with two screws for each Right
Cabinet Hook Support (33) as shown in the diagram.
37
45
41
33
37
35
To Next Page
