Branson TA00037774A - Stack Valve Body Sections; Install Mounting Brackets

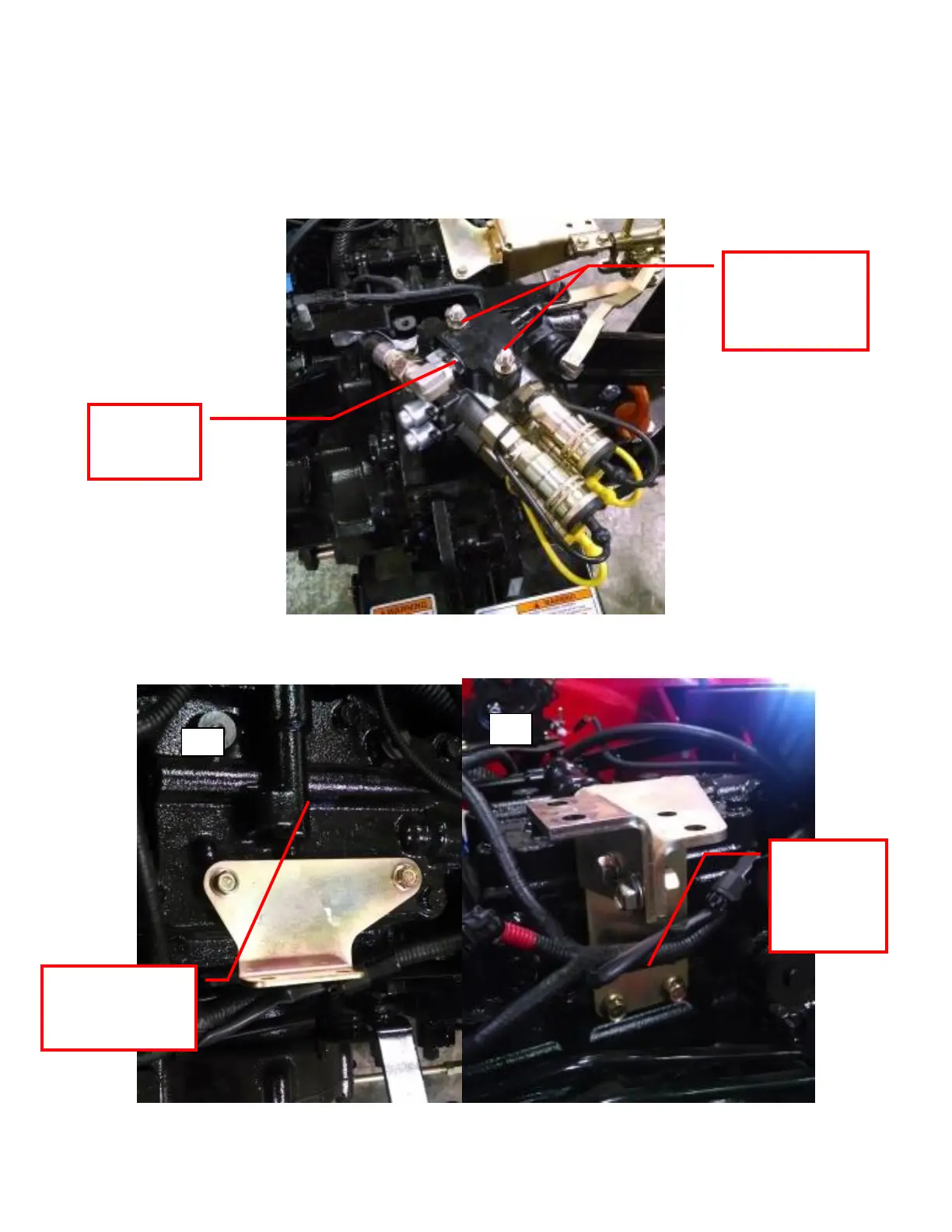

3. STACK THE TWO VALVE BODY SECTIONS AS SHOWN, WITH THE BOTTOM SECTION
SPOOL ACTUATOR FACING THE FRONT OF TRACTOR AND TOP SECTION SPOOL
ACTUATOR FACING THE REAR OF TRACTOR. INSTALL THE PRESSURE REGULATING
BLOCK AND TIGHTEN THE LOCKING NUT ON THE 90° ADAPTER WITH EVERYTHING
ADJUSTED TO FIT.
4. INSTALL BRACKETS AS SHOWN. TIGHTEN SECURELY.
1
2
TIGHTEN
LOCKING
NUT
USE NUTS
AND LOCK
WASHERS
FROM KIT
TOP OF ROCK
SHAFT
HOUSING
SIDE OF
ROCK
SHAFT
HOUSING
