Braun 64797 - Parts List and Diagram

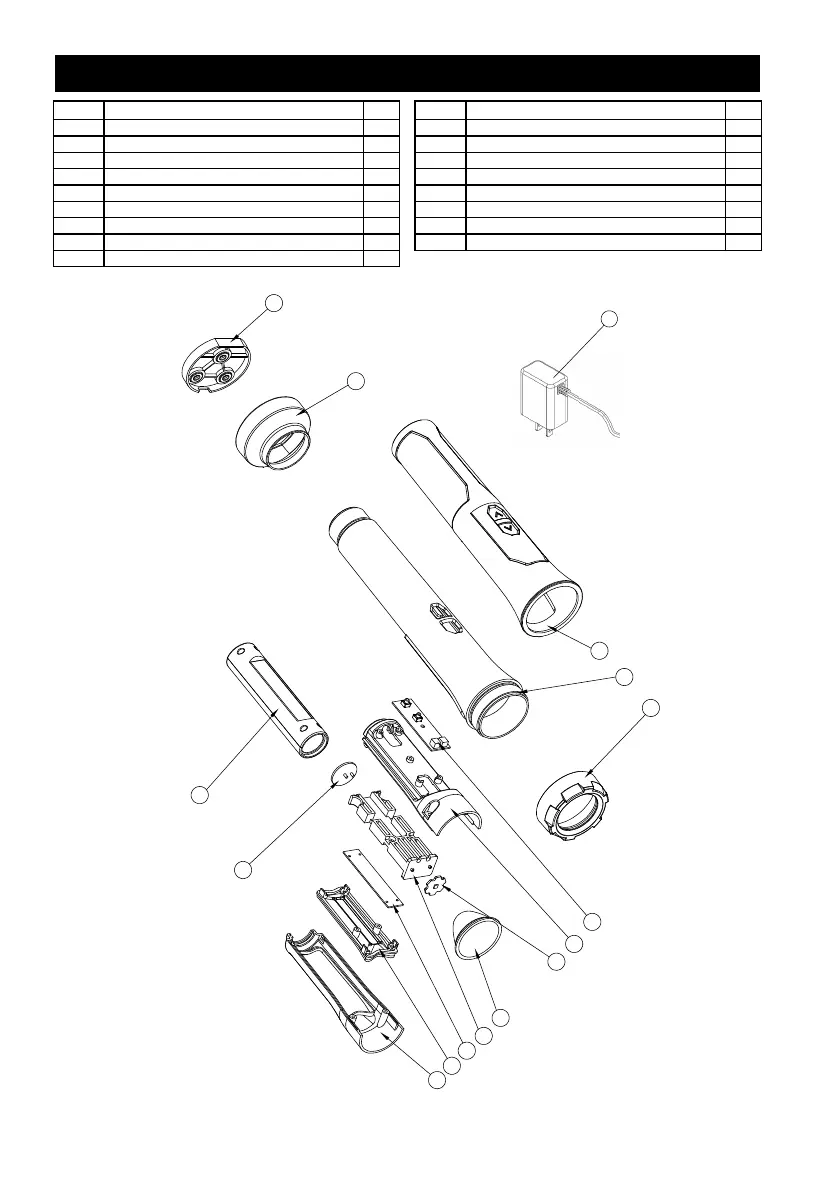

Page 7For technical questions, please call 1-888-866-5797.Item 64797
Parts List and Diagram
Part Description Qty
1 Lens 1
2 Housing 1
3 Cover 1
4 Base 1
5 Bottom Cap with Three Magnets 1
6 Inner Tube (right) 1
7 COB Reflector 1
8 PCB with COB 1
9 Heat Sink 1
Part Description Qty
10 LED Reflector 1
11 PCB with LED 1
12 Inner Tube (left) 1
13 PCB with Selection Buttons 1
14 PCB 1
15 Battery Pack 1
16 Battery (not shown, inside Battery Pack) 1
17 Charger 1
1
2
3
4
5
6
8
9
10
11
12
13
7
14
15
17
