5601 - 5
BINC Rev: 9/99 Service Documentation
Service Information
BAG Rev: 9/99 5601
Dismantling Comb attachment (1) Set sliding switch in "0" position.
Pull off comb attachment by snap action.
Cutter set (2) To be snapped out by pressing buttons "A".

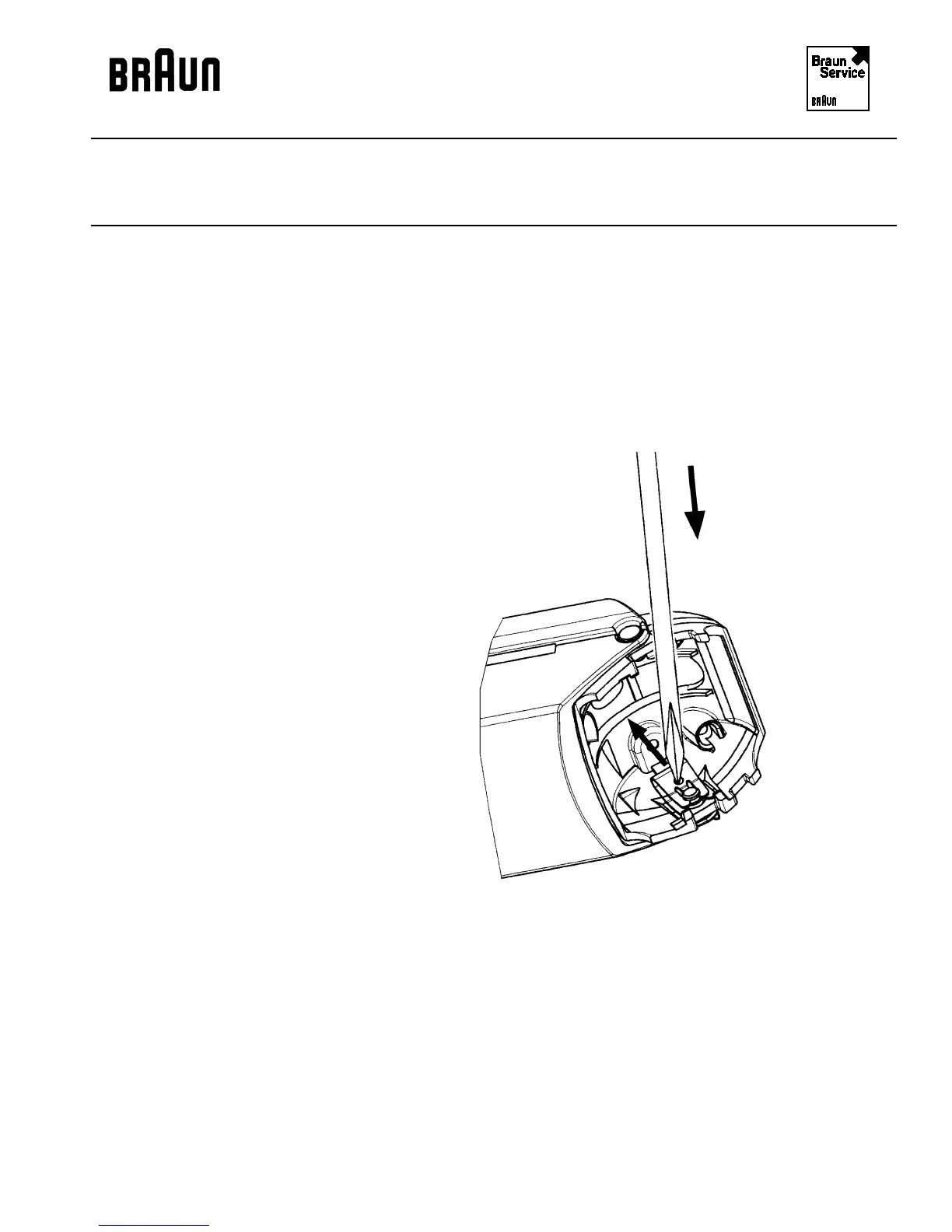

Swivel frame (4) Insert a small Torx screwdriver into the hole of the
springs (3a) and snap them out by pushing towards the
inside of the frame. Remove the pin (3b).
Unhinge and remove swivel frame (4) (see diagram
below).
Housing Unscrew screw "B" (3c) of the housing back part (8).
Press together the housing front part (5) in the area of
the bearing pin; then, insert a wide-bladed screwdriver
into the guide slot on the left side of the sliding switch
and unhinge the housing snaps. Now, pull apart the
housing halves.
Motor (6) Remove the screw (3c) in the housing font part (5).
Unsolder the connecting wires to the PCB (7).
PCB (7) Remove and snap out plug connector.
