14
GB
Unit: mm
Note
Figures in the table may differ slightly depending on the installation.

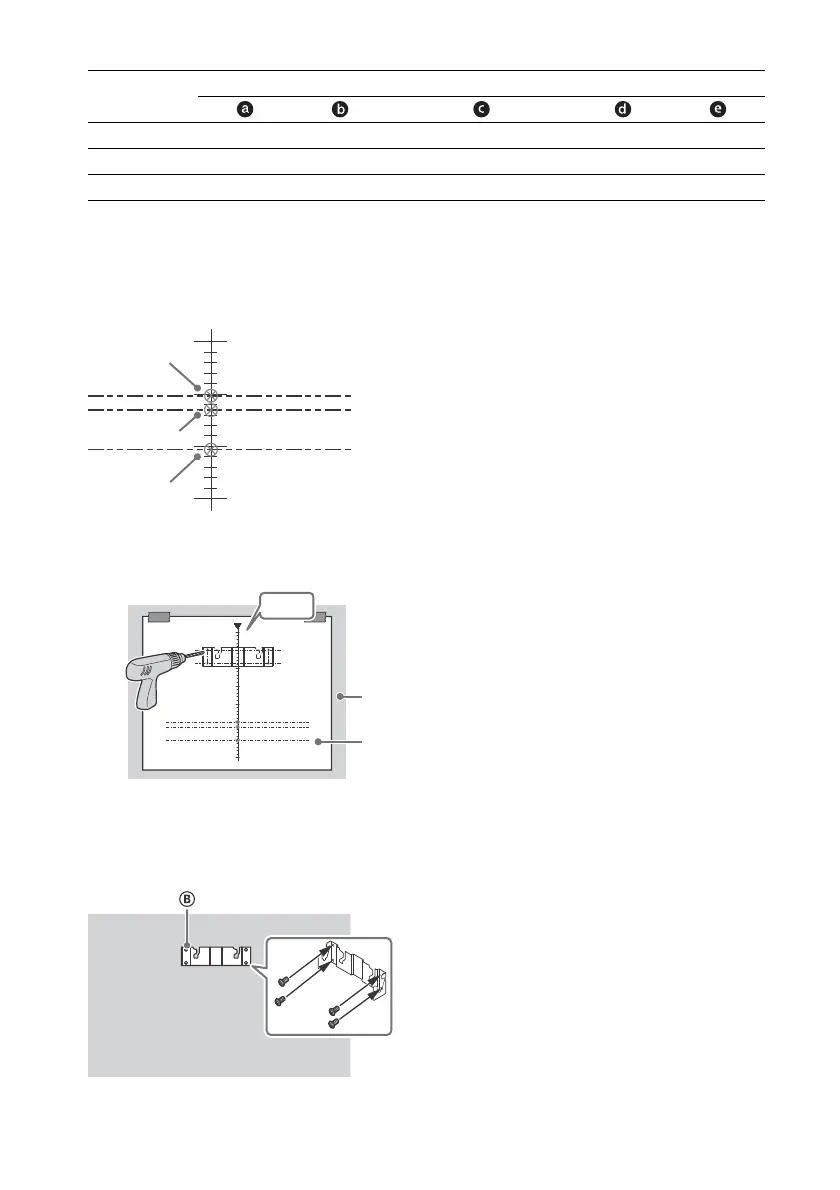

3 Make a mark on the Paper Template A that indicates the centre of the screen for your TV.
Scale on Paper Template A
4 Tape the Paper Template A to the wall and drill holes according to the numbering on the
Paper Template A using an electric drill.
5 Remove the Paper Template A off from the wall.
6 Attach the Wall-Mount Base B to the wall correctly using the screws (8 mm in diameter,
not supplied).
Model Name
KDL-
Display dimensions Screen centre dimension Length for mounting
55W800C 1,230 715 201 566 89
50W800C 1,116 654 215 552 87
43W800C 962 565 253 544 87
150
200
250
300
Mark for
KDL-55W800C
Mark for
KDL-43W800C
Mark for
KDL-50W800C
50
0
50
1
100
150
200
250
300
2
3
4
1, 2, 3, 4
Wall
A
