Unit: mm
Note
• Figures in the table may differ slightly depending on the installation.
• When your TV is installed on the wall, the upper side of the TV slightly leans forward.

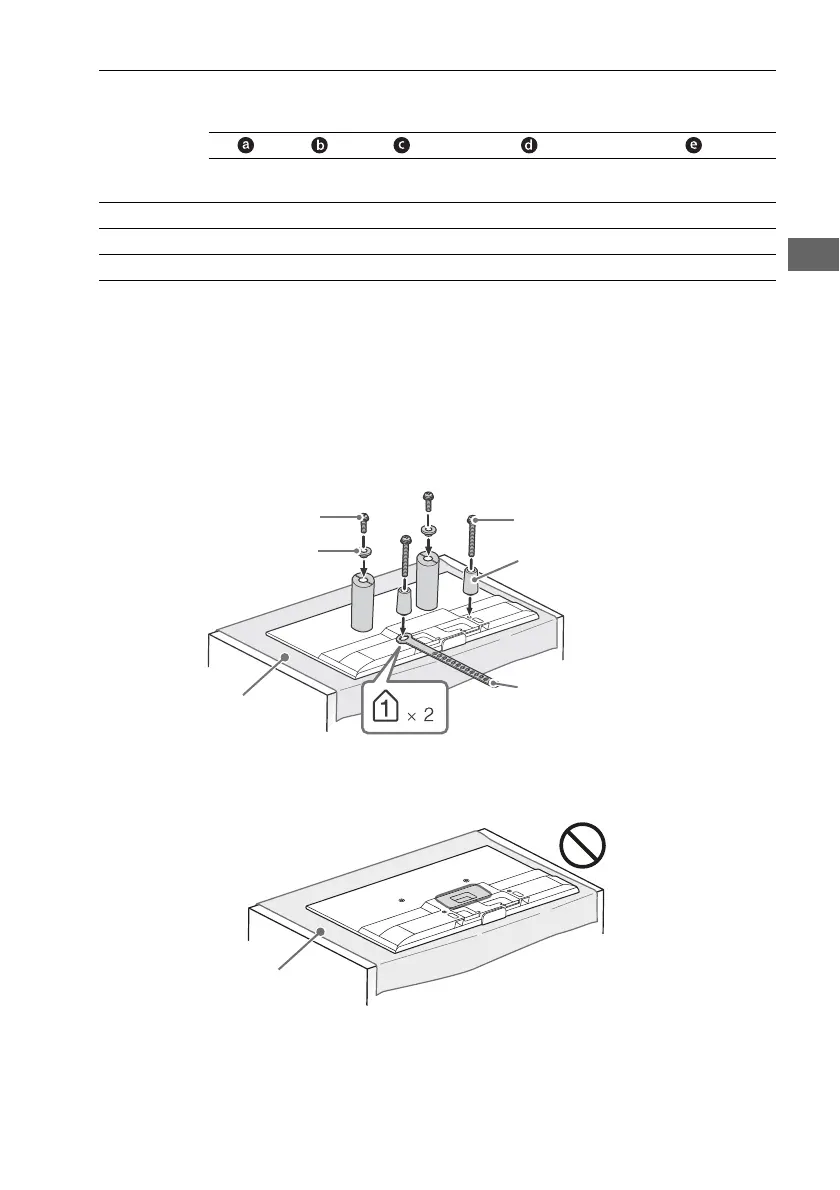

3 Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by
referring to “1” of the Wall-Mount Bracket Installation Guide.
Note
• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
• Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference.
Standard mounting
Slim mounting
Note
• You cannot use some of the terminals on the rear of the TV when using this mounting style.
Model Name
KDL-
Display
dimensions
Screen
centre
dimension
Length for mounting
Standard
mounting
Slim
mounting
Standard
mounting
Slim
mounting
55W800C 1,230 715 99 464 463 123 81
50W800C 1,116 654 127 464 464 122 80
43W800C 962 565 173 464 464 122 80
Pulley
Screw (+PSW 6 x 20)
Spacer (60 mm)
Screw (+PSW 6 x 50)
Belt
Soft cloth
