Chapter 4: Assembling the Bed Face Panel unit.
Chapter 4:Assembling the Bed Face
Panel unit.
REQUIRED TOOLS

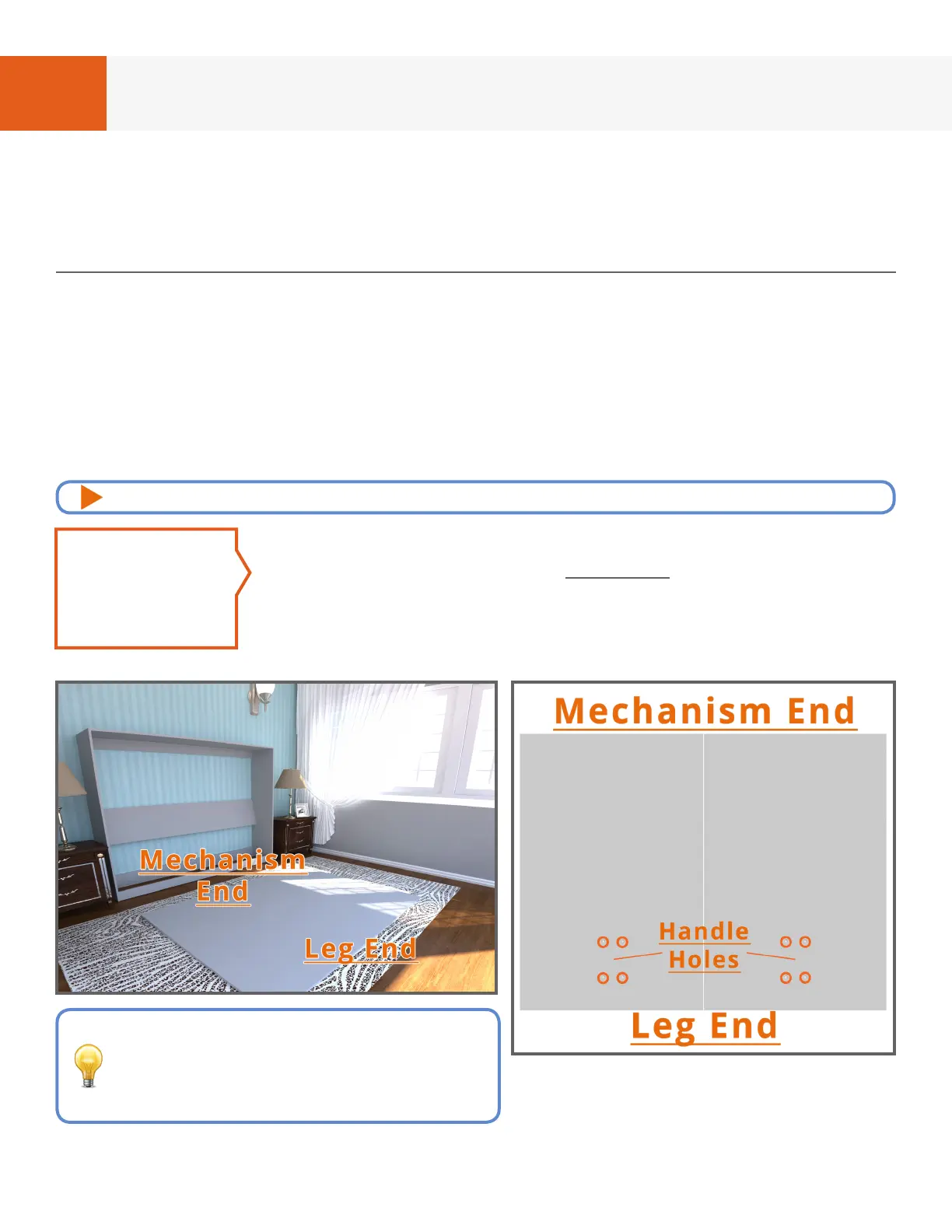

Referring to Fig. 4A, lay doors face down in front of the bed
on a soft surface, such as a carpet, rug or blanket. Pre-drilled
“Handle Holes” should be furthest away from bed cabinet.
STEP 1
REQUIRED HARDWARE
• Hardware Package #3
• Hardware Package #7
• Hardware Package #17 (F & Q only)
• Cordless Drill and/or Impact Driver
• 5/16” Socket
• Phillips Screwdriver
• #2 Square Drive Bit
• Tape Measure
• Masking Tape (Optional)
FIG. 4B - DOORS, OVERHEAD VIEWFIG. 4A
The “Mechanism End” is the end
of the bed that will connect to the
Mechanism and the “Leg End” is the
end that will connect to the legs.
For video instructions of this specic chapter, visit: breda.us/frame
