General Operation:
RECEIVER:
The Receiver is equipped with a Power On/Off switch on the outside of the case. When the switch
is ON, the Red LED should be lit indicating normal operation.
The Receiver is equipped with an 8-position switch used to set the user security code. The security
code is provided to prevent unwanted operation of the Receiver by other devices. Only a
Transmitter with identical switch settings will be able to "talk" to this Receiver. When the switches
are set identically and the transmitter "talks" to the Receiver, the yellow “RECEIVE” light will
come on. This indicates that valid data with a matching security code has been received. Position
these switches to any desired On/Off pattern for your own security code. REMEMBER: The 8-
position switch on the Transmitter must be set IDENTICALLY. To access the security code switch,
remove the 6 screws securing the case from the rear and open the case.
NOTE: This is a TRI-STATE switch.
Each of the 8 switches has 3 positions
which must
be identically matched to the corresponding Trans-
mitter/Receiver.
These code switches are fully compatible with 8-
position Two- State On/Off switches by using the
“+” setting as ON and the “O” setting as OFF.

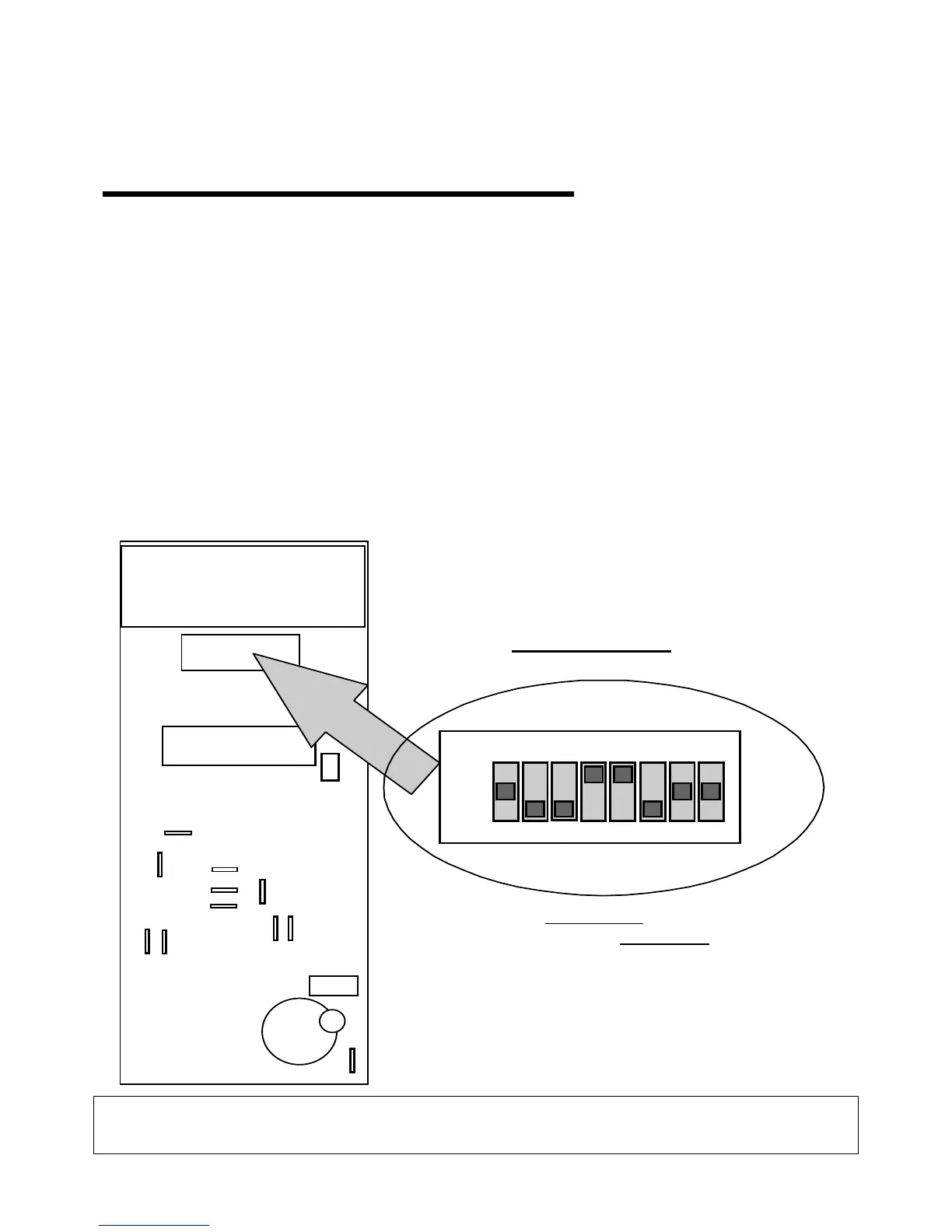

USER SELECTABLE
SECURITY CODE SWITCH
8 - POSITION MUST BE SET
IDENTICAL
TO THE TRANSMITTER
Receiver Circuit Board
O
1 2 3 4 5 6 7 8
-
+
DIP
