SLOW BLOW FUSE
REPLACEMENT AND INFORMATION
The slow blow fuse is located near the power
switch on the side of the ie series wheels. Push
and turn the cap labeled “fuse” to remove. The
cap should come out easily with the slow blow
fuse attached. Pull on slow blow fuse to remove
from cap. Refer to chart for replacement slow
blow fuse. Push the cap in and turn to lock the
new slow blow fuse into place.

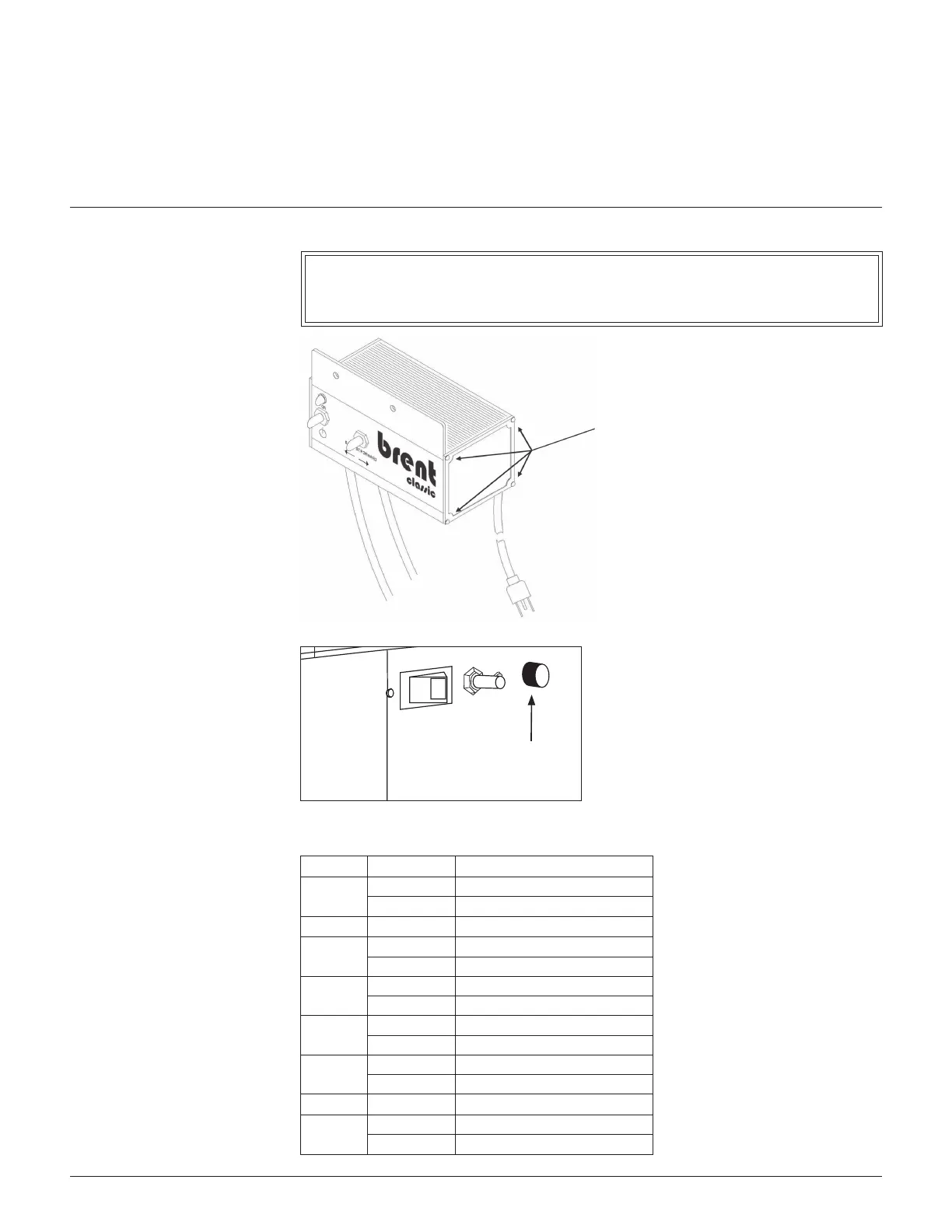

FUSE LOCATION
MODEL VOLTAGE FUSE TYPE SLOW BLOW
ie
110-120V 6 Amp Slow Blow
220-240V 6 Amp Slow Blow
ie-r
110-120V 6 Amp Slow Blow
ie-x
110-120V 6 Amp Slow Blow
220-240V 6 Amp Slow Blow
B
110-120C 20 Amp Slow Blow
220-240V 25 Amp Slow Blow
C
110-120V 20 Amp Slow Blow
220-240V 25 Amp Slow Blow
CXC
110-120V 20 Amp Slow Blow
220-240V 25 Amp Slow Blow
EX
110-120V 25 Amp Slow Blow
#16
110-120V 20 Amp Slow Blow
220-240V 25 Amp Slow Blow
REPLACING
THE SLOW
BLOW FUSE OF
MODELS:
B, C, CXC,
EX, and #16
REPLACING
THE SLOW
BLOW FUSE OF
MODELS:
IE, IER, and IEX
SLOW
BLOW FUSE
INFORMATION
All slow blow fuses are
1.25" x .25" or 6.35 x 31.75mm
CAUTION: UNPLUG THE POWER PRIOR
TO REPLACING THE SLOW BLOW FUSE!
Remove (4) screws from the power cable side
of the control box. The slow blow fuse will be
behind the cover. Carefully remove the slow blow
fuse, a tool may be needed to gently pry the slow
blow fuse out of the socket.
