Models 6000 & 6001
Models 6000 & 6001 are equipped with a single foot
pedal that controls the raising/lowering of the table.
Models 6500 & 6501
Models 6500 & 6001 are equipped with a dual foot pedal
that controls the raising/lowering of the table and raising/
lowering of the seat back. In addition, the control features
the following:
Return to Chair: When pressed, the table automatically
returns to the low chair position. The seat back will rise
to the full up position and the table will lower to the full
down position and stop. If the Emergency Stop or either
pedal is pressed while the table is in motion, the system
will return to manual mode and all motion will stop.
Emergency Stop: When pressed, stops the motion of all
functions.
Green Light (Models 6500 & 6501 only): Indicates that
there is power to the foot control (Safety On/Off switch at
back of table is ON).
Safety Switch for
Seat Back
Function
Safety Switches for Table
Bottom Raising/Lowering Function
Figure 9. Safety Switches
Safety Switches
all Models
All models are equipped with safety switches located
on the bottom and seat back of the chair assembly that
automatically stops the lowering function if an obstruction
is encountered.

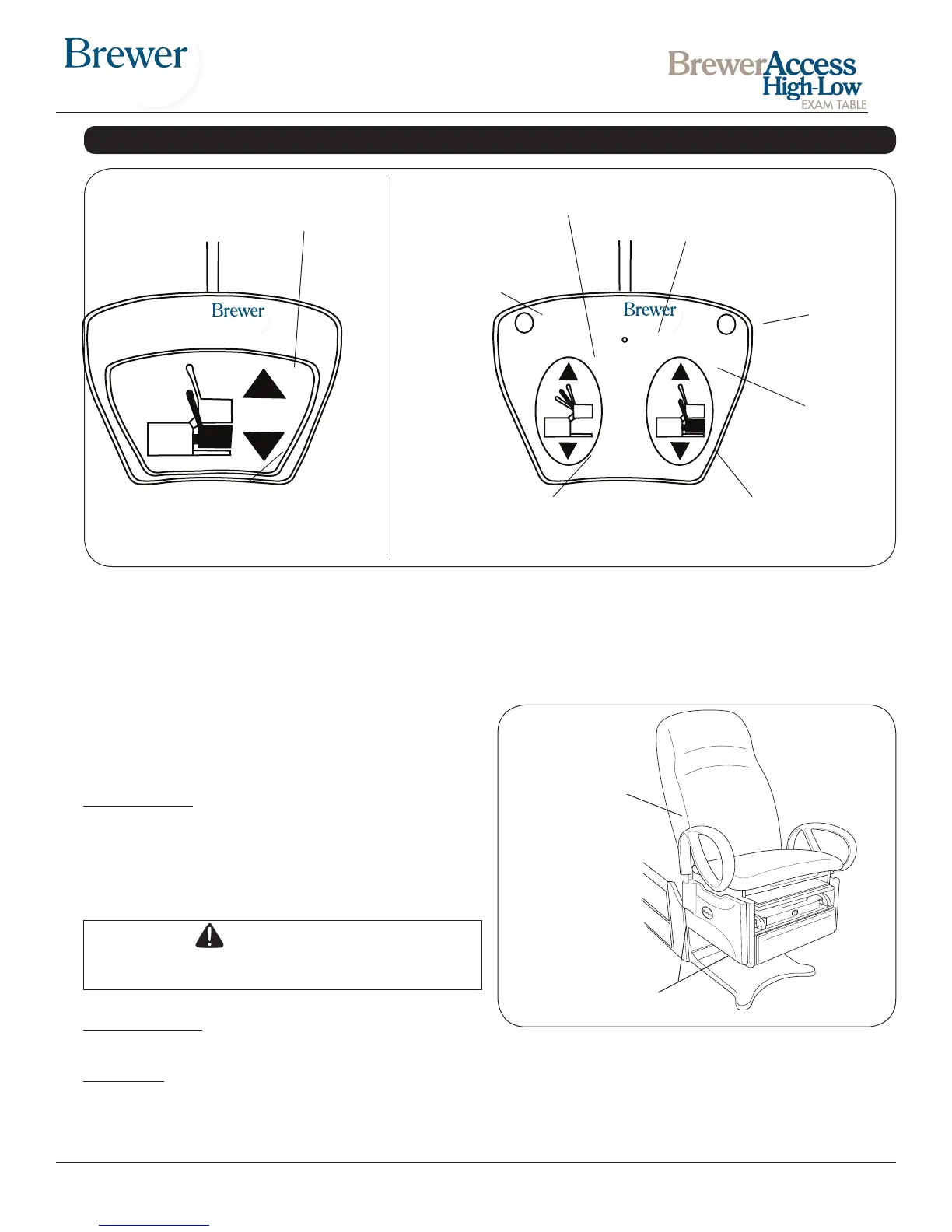

Figure 8. Foot Controls
TABLE UP
(Raises the entire
table upward)
TABLE DOWN
(Lowers the entire
table downward)
MODELS 6000 & 6001
MODELS 6500 & 6501
TABLE UP
(Raises the entire
table upward)
TABLE DOWN
(Lowers the entire
table downward)
BACK DOWN
(Lowers the back)
BACK UP
(Raises the back)
EMERGENCY STOP (RED)
(Stops all
functions
when pressed)
RETURN TO CHAIR
(BLUE)
(Returns table
to chair position
when pressed)
OPERATION (continued)
GREEN LIGHT
(Lights when power
to the foot control is ON)
CAUTION
Do not leave patient unattended when using the
Return To Chair feature.
Safety On/Off Switch
all Models
The On/Off switch (located on the back of the rear cabi-
net) can be set to the OFF position to disable all move-
ment of the table. Power to the drawer warmer (if so
equipped) and other portions of the table will remain on.
STOP
RETURN
TO CHAIR
