7712206-User Manual-EN-2019-9 6 | 22
Install two o-rings on the top two grooves on the center pipe. Use the size marked 16x2mm.
If you want a tighter fit, use the 18x2mm o-rings. Install 18x2mm o-rings on the dip-tube(s).
Finally, install 22x2mm o-rings on the outside grooves of the mash hat. The dip should be
installed on the right outlet port inside the tank. It is recommended to moisten the o-rings
before use. The dip tube position can be adjusted to your preference. More details on this
subject is described in the “Dip tube” section of the later on.

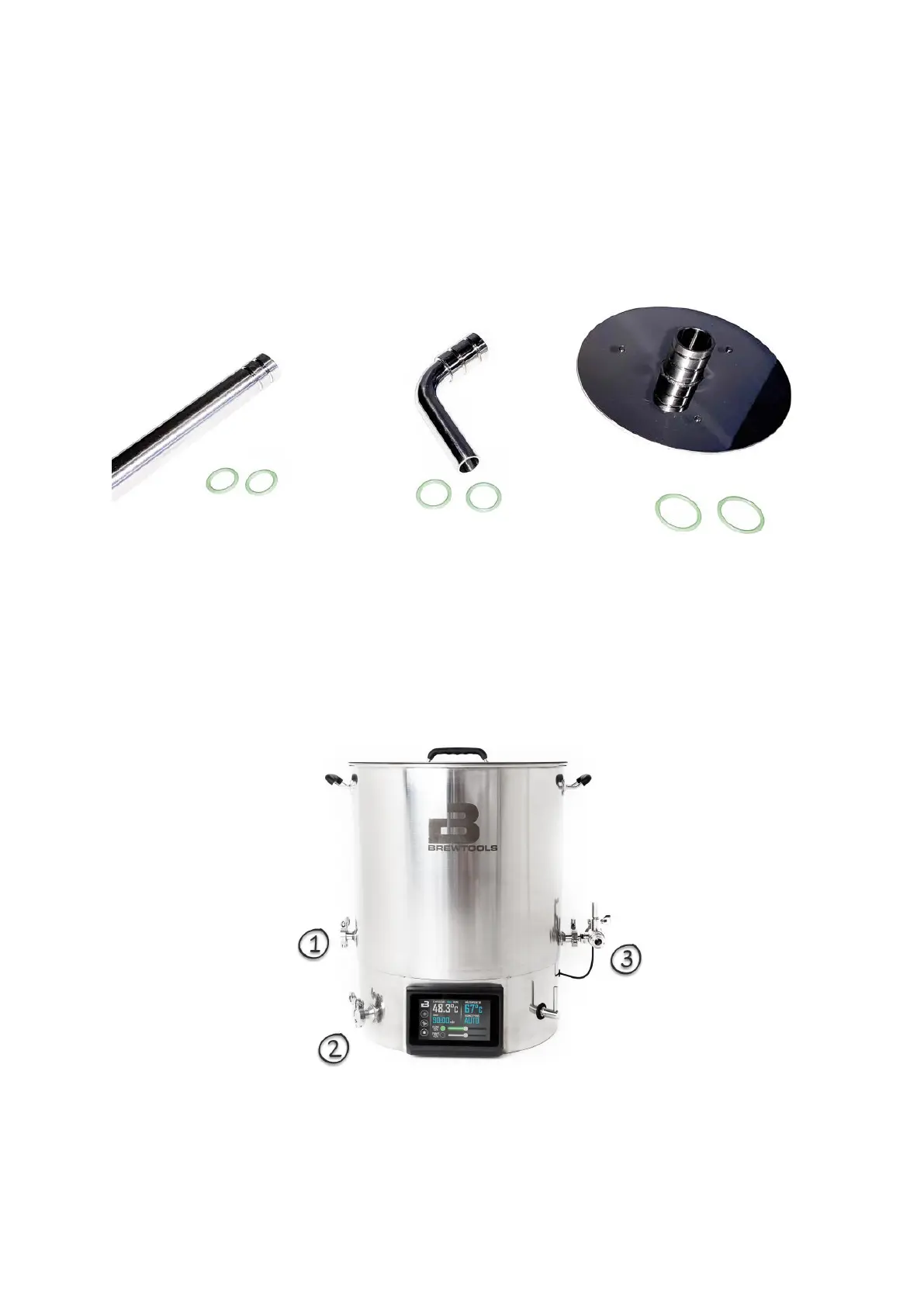

Center pipe (16x2mm), dip tube (18x2mm) and mash hat (22x2mm)
Install 3 blind caps on the open ports indicated below to avoid spilling. If you have extra
valve(s), you can use the blind caps as preferred.
B80pro – Recommended blind cap placement
