5

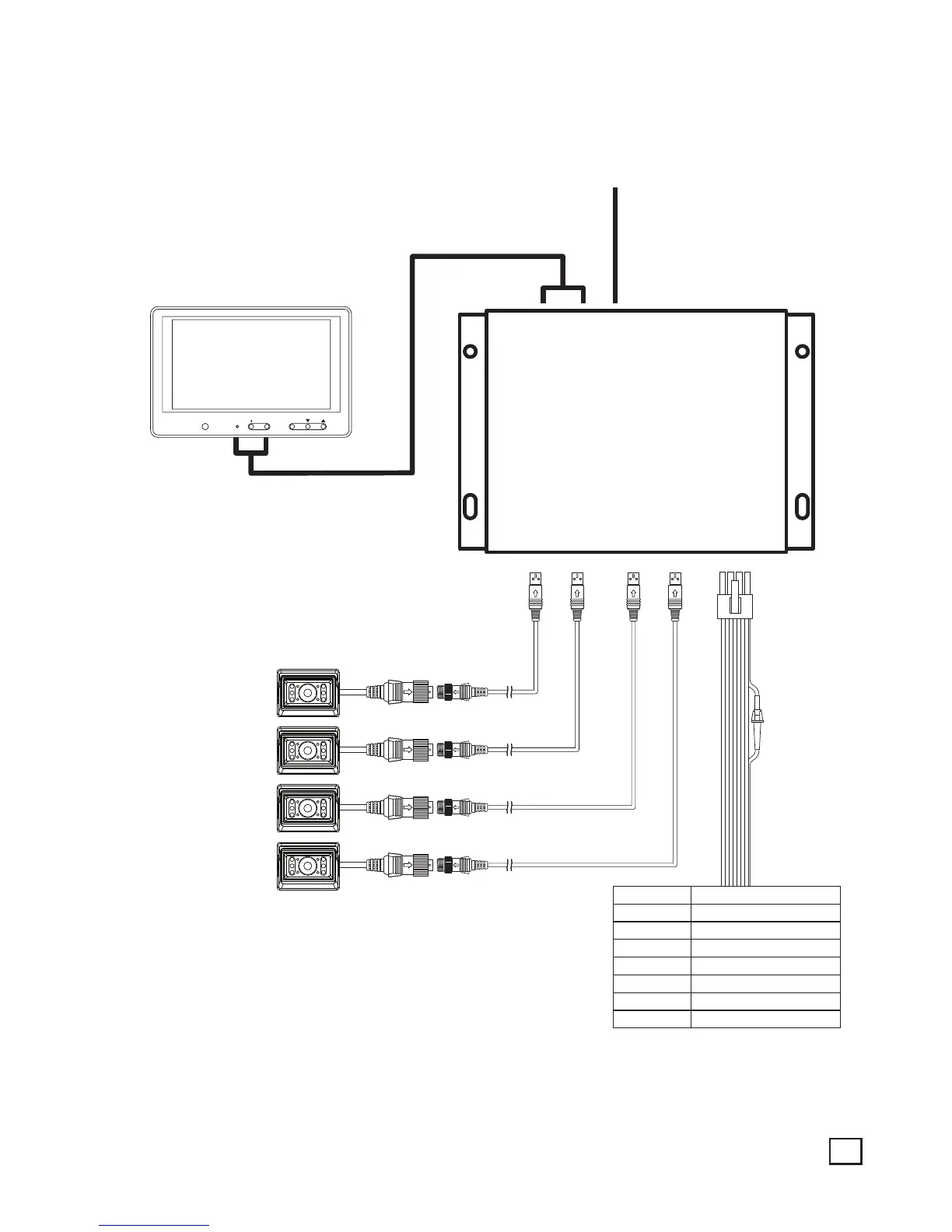

3 System connections
EDM-50
POWER
INPUT
10V~32V
CA1
AV-IN
IR Remote control sensor
A V
AV-OUT
A V
CA2 CA3 CA4
CA./SEL
MONITOR
MENU
RED 10~32Vdc
GREEN TRIGGER 1
WHITE TRIGGER 2
BROWN TRIGGER 5 (SPLIT)
BLACK GROUND
YELLOW TRIGGER 4
BLUE TRIGGER 3
ORANGE TRIGGER OUT
2 Installation
