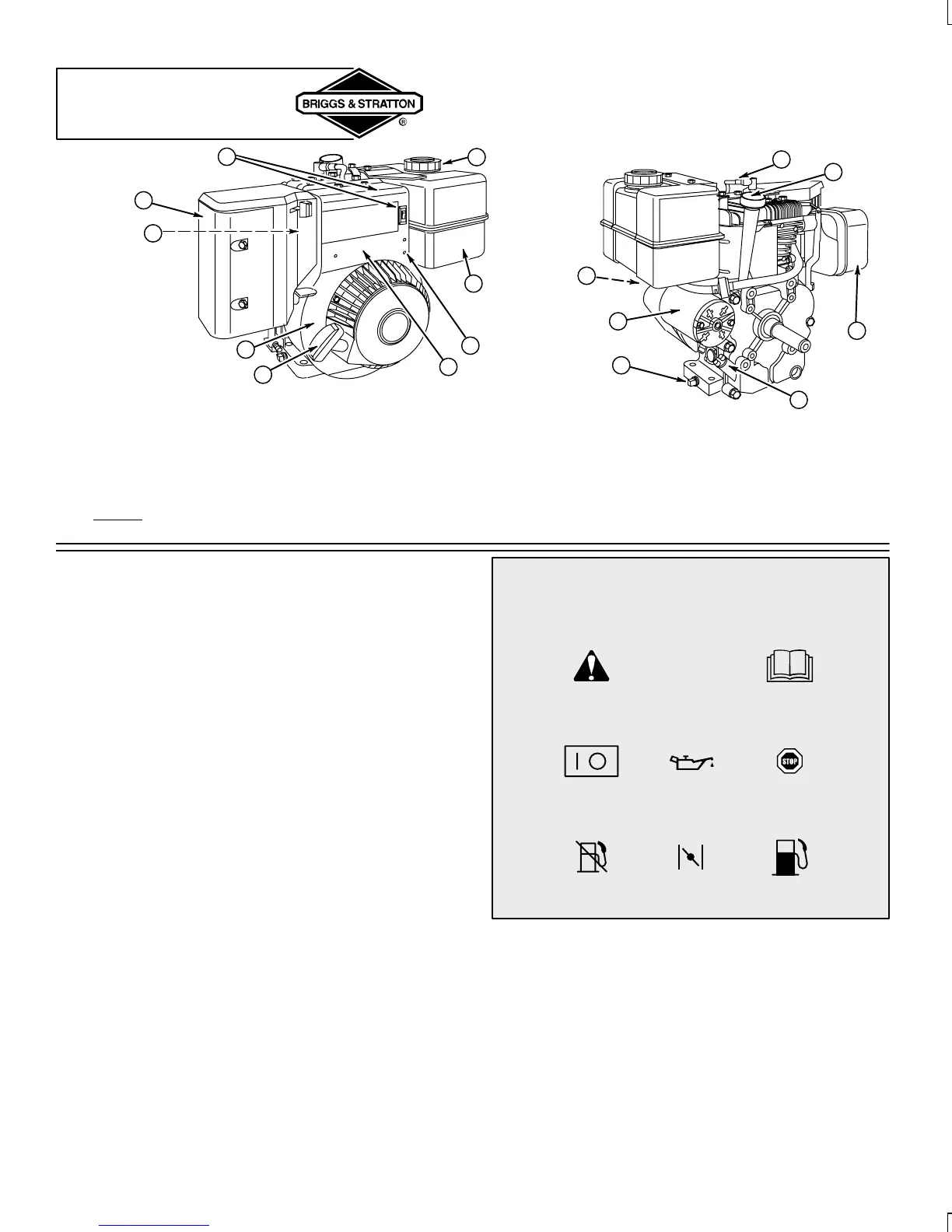

ENGINE PARTS
1. Rope handle
2. Blower housing
3. Carburetor
4. Air cleaner
5. Stop switch (if equipped)
6. Fuel fill
7. Fuel tank
8. OIL GARD (if equipped)
9. Engine Model Type Code
xxxxx xxxx xx xxxxxxxx
10. Spark plug wire
11. Extended oil fill/Dipstick (if equipped)
12. Muffler/(Muffler guard, if equipped)/
(Spark arrester, if equipped)
13. Oil fill plug
14. Oil drain plug
15. 12 V electric starter (if equipped)
16. Fuel shut-off valve
2
1
4
3
5
9
7
8
6
10
13
12
11
14
16
15
GENERAL INFORMATION
ENGINE MODEL
This is a single cylinder, L-head, air-cooled engine. It is a
low emissions engine.
MODEL SERIES 190000
Bore 3 in. (76.20 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stroke 2-3/4 in. (69.85 mm). . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 19.44 cu. in. (318.5 cc). . . . . . . . . . . . . . . .
MODEL SERIES 250000
Bore 3-7/16 in. (87.31 mm). . . . . . . . . . . . . . . . . . . . . . . . . .
Stroke 2-5/8 in. (66.68 mm). . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 24.36 cu. in. (399.3 cc). . . . . . . . . . . . . . . .
Note: For practical operation, the horsepower loading should
not exceed 85% of rated horsepower. Engine power will de-
crease 3-1/2% for each 1,000 feet (300 meters) above sea
level and 1% for each 10° F (5.6° C) above 77° F (25° C).
Engine will operate satisfactorily at an angle up to 15°.
TUNE-UP SPECIFICATIONS
Armature air gap 0.010 – 0.014 in. (0.25 – 0.36 mm). . .
Spark plug gap 0.030 in. (0.76 mm). . . . . . . . . . . . . . . . . .
Valve clearance with valve springs installed and piston 1/4 in.
(6 mm) past top dead center (check when engine is cold).
See Repair Manual P/N 270962.
Intake 0.005 – 0.007 in. (0.13 – 0.18 mm). . . . . . . . . . . . .
Exhaust 0.007 – 0.009 in. (0.18 – 0.23 mm). . . . . . . . . . .
THE INTERNATIONAL SYMBOLS USED
ON THE ENGINE OR
IN THIS MANUAL INCLUDE:
On Off
Fuel Shutoff
Read Owner’s
Manual
Stop
FuelChoke
Safety Alert
Oil
To Next Page
