Rewind Starter and Blower Housing
The starter rope and the rope handle are the only serviceable parts of the rewind assembly. Place the rewind
assembly inside the blower housing with the handle in the required position (Figure 13a). Align the tabs in the
housing and the rewind and press together until all tabs snap into place. Line up the tabs of the retaining ring
(Figure 13b) with the slots on the rewind and snap it into position.

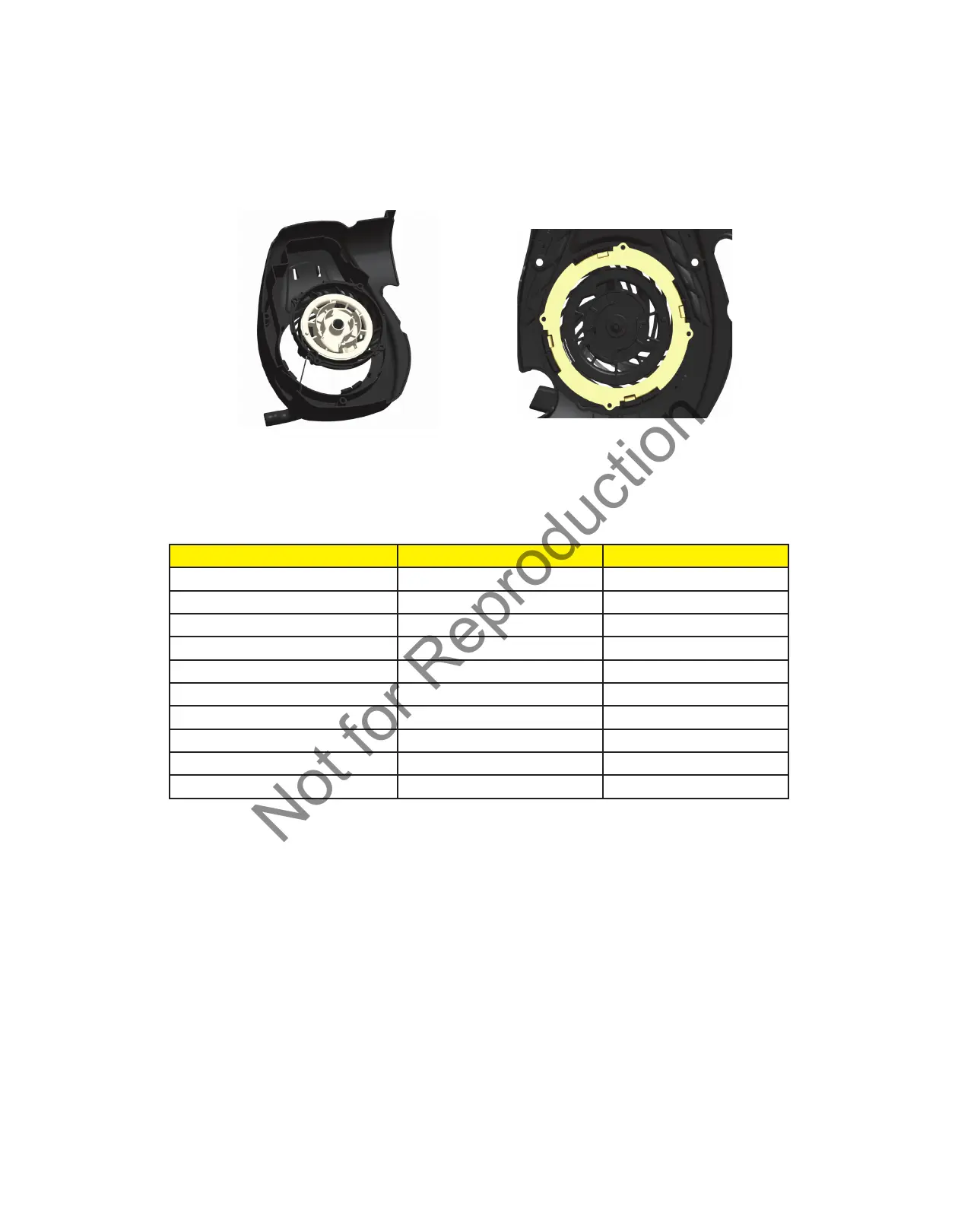

Figure 13a Figure 13b
ENGINE SPECIFICATIONS
Common Specifications SAE Metric
Armature Air Gap .006 - .014 in .15 - .36 mm
Bore and Stroke 2.49 x 1.75 in 63.4 x 44.5 mm
Crankshaft End Play .002 - .028 in .05 - 1.0 mm
Displacement 8.54 ci 140cc
Exhaust Valve Clearance (Cold) .004 - .008 in .10 - .20 mm
Intake Valve Clearance (Cold) .004 - .008 in .10 - .20 mm
Fuel Tank Capacity .8 qt .8 L
Oil Capacity 15 oz .44 L
Spark Plug Gap .020 in .51 mm
Spark Plug Torque 180 lb-in 20.3 Nm
