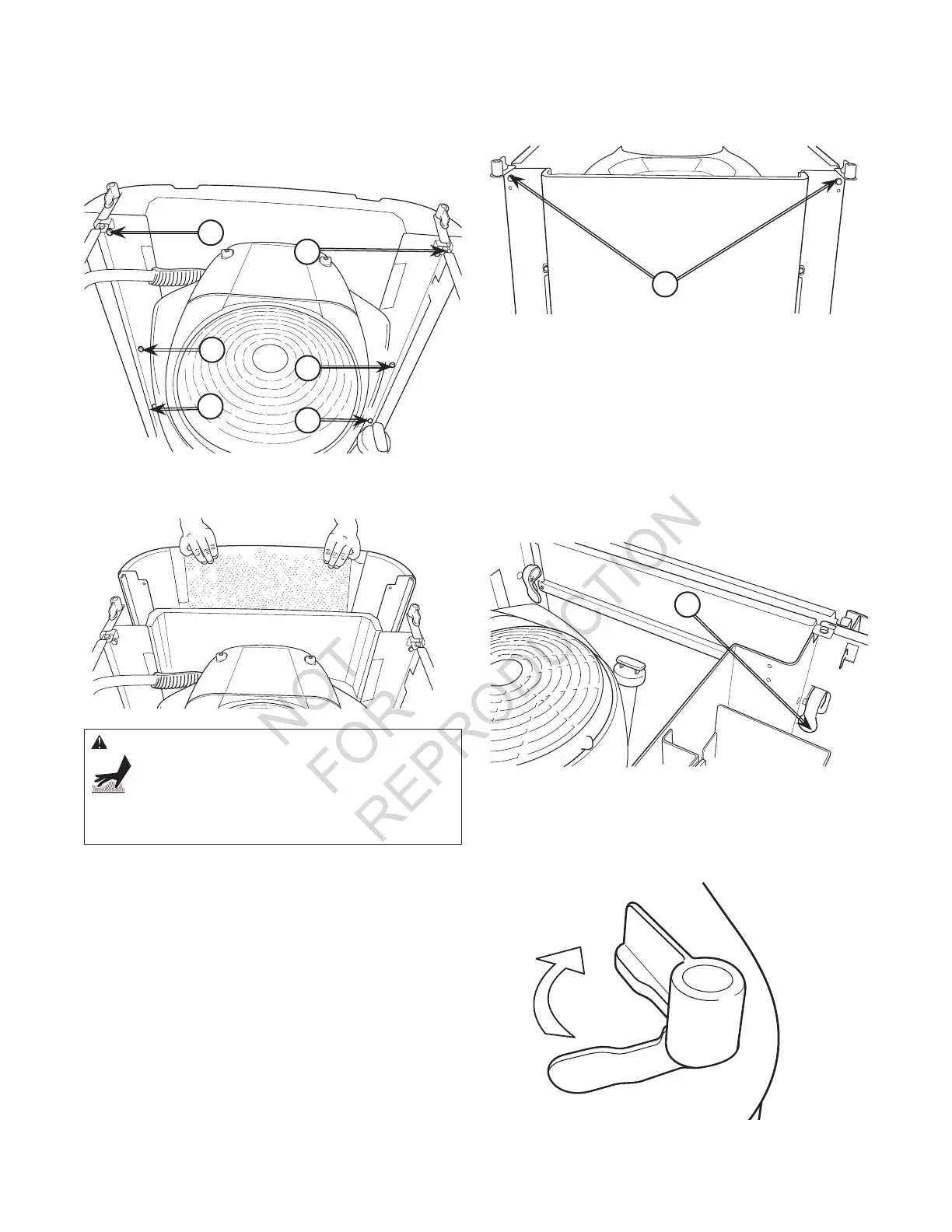

To remove exhaust panel:
1. Remove roof and divider.
2. Remove side panels.
3. Remove 6 screws (A) from exhaust panel.
4. Pull exhaust panel up and out of base.
5. Remove two screws (B) and pull muffler cover off.
6. Replace muffler cover and exhaust panel in reverse
order.
To install side panels:
1. Place panel in grooves and slide down in place.
2. Push latches (C) down on both sides of panel to lock
into place.
3. Replace divider and rotate knobs 1/4 turn to lock in
place.
4. Replace roof.
C
WARNING Contact with muffler area could cause
burns resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
A
A
A
A
A
A
B
