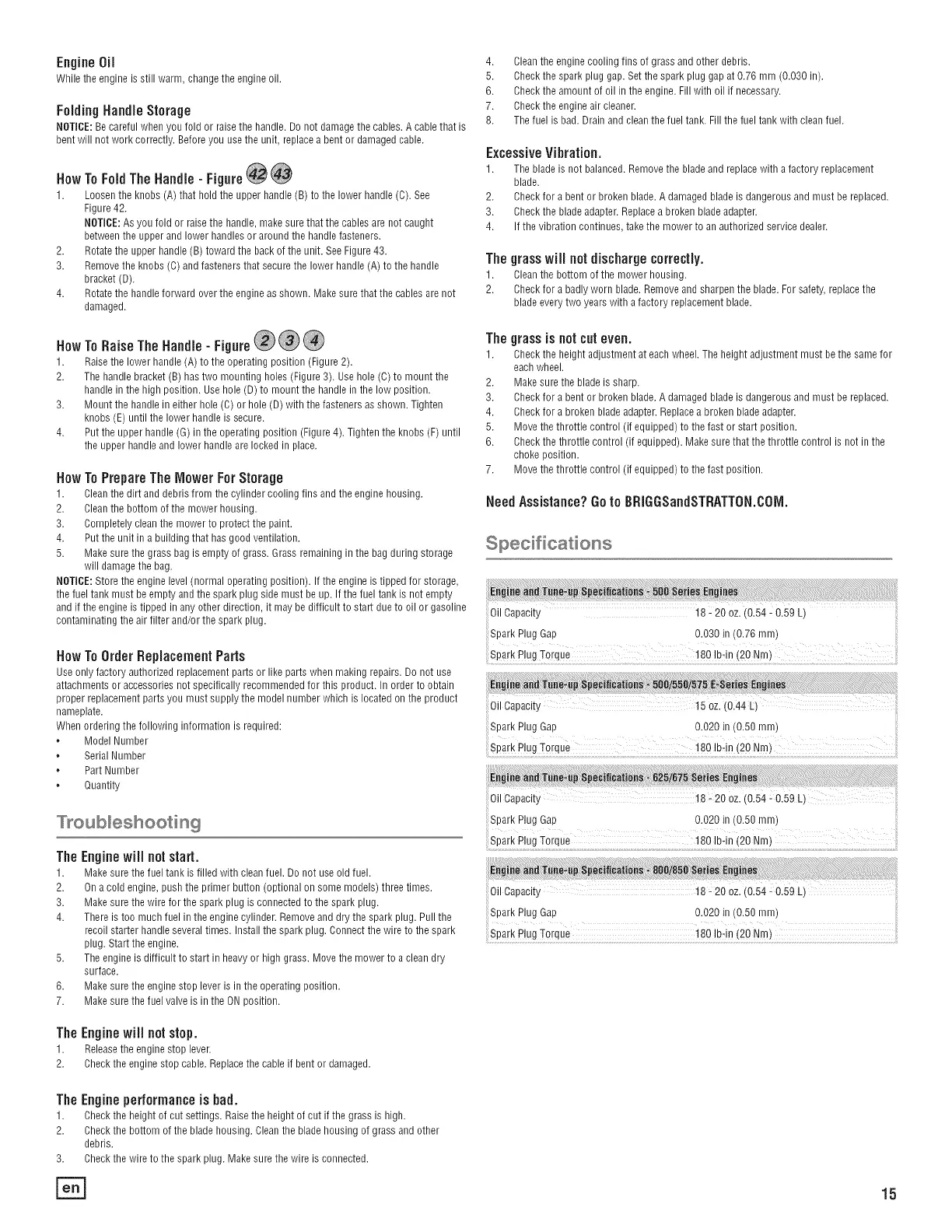

EngineOil
While theengine isstill warm, change theengine oil.
FoldingHandleStorage
NOTICE:Be careful when you fold or raisethe handle. Do not damage the cables. A cable thatis
bent will not work correctly. Before you use the unit, replace a bent or damaged cable.
HowToFoldTheHandle-Figure'_'_
1. Loosen the knobs (A) that hold the upper handle (B) to the lower handle (C). See
Figure42.
NOTICE:As you fold or raisethe handle, make sure that the cables are not caught
between the upper and lower handlesor around the handlefasteners.
2. Rotate the upper handle (B) toward the back of the unit. See Figure 43.
3. Remove the knobs (C) and fasteners that secure the lower handle (A) to the handle
bracket (D).
4. Rotate the handle forward over the engine as shown. Make sure that the cables are not
damaged.
HowToRaiseTheHandle- Figure__
1. Raise the lower handle (A) to the operating position (Figure 2).
2. The handle bracket (B) has two mounting holes (Figure 3). Use hole (C) to mount the
handle in the high position. Use hole (D) to mount the handle in the low position.
3. Mount the handle in either hole (C) or hole (D) with the fasteners as shown. Tighten
knobs (E) until the lower handle is secure.
4. Put the upper handle (G) in the operating position (Figure 4). Tighten the knobs (F) until
the upper handle and lower handle are locked in place.
HowToPrepareThe Mower ForStorage
t. Clean the dirt and debris from the cylinder cooling fins and the engine housing.
2. Clean the bottom of the mower housing.
3. Completely clean the mower to protect the paint.
4. Put the unit in a building that has good ventilation.
5. Make sure the grass bag is empty of grass. Grass remaining in the bag during storage
will damage the bag.
NOTICE:Store the engine level (normal operating position). If the engine is tipped for storage,
the fuel tank must be empty and the spark plug side must be up. If the fuel tank is not empty
and if the engine is tipped in any other direction, it may be difficult to start due to oil or gasoline
contaminating the air filter and/or the spark plug.
Now ToOrder Replacement Parts
Use only factory authorized replacement parts or like parts when making repairs. Do not use
attachments or accessories not specifically recommended for this product. In order to obtain
proper replacement parts you must supply the model number which is located on the product
nameplate.
When ordering the following information is required:
o Model Number
o Serial Number
o Part Number
o Quantity
4. Clean the engine cooling fins of grass and other debris.
5. Check the spark plug gap. Set the spark plug gap at0.76 mm (0.030 in).
6. Check the amount of oil in the engine. Fill with oil if necessary.
7. Check the engine air cleaner.
8. The fuel is bad. Drain and clean the fuel tank. Fill the fuel tank with clean fuel.
ExcessiveVibration.
1. The blade is not balanced. Removethe blade and replace with a factory replacement
blade.
2. Check for a bent or broken blade. A damaged blade is dangerous and must be replaced.
3. Check the blade adapter. Replace a broken blade adapter.
4. If the vibration continues, take the mower to an authorized service dealer.
Thegrasswill notdischargecorrectly.
1. Clean the bottom of the mower housing.
2. Check for a badly worn blade. Remove and sharpen the blade. For safety, replace the
blade every two years with afactory replacement blade.
Thegrassisnotcuteven.
1. Check the height adjustment at each wheel. The height adjustment must be the same for
eachwheel.
2. Make sure the blade is sharp.
3. Check for a bent or broken blade. A damaged blade is dangerous and must be replaced.
4. Check for a broken blade adapter. Replace a broken blade adapter.
5. Move the throttle control (if equipped) to the fast or start position.
6. Check the throttle control (if equipped). Make sure that the throttle control is not in the
choke position.
7. Move the throttle control (if equipped) to the fast position.
NeedAssistance?Goto BRiGGSandSTRATTON.COM.
Oil Capacity 18 - 20 oz. (0.54 - 0.59 L)
Spark Plug Gap 0.030 in (0.76 mm)
ii !ii
Spark Plug Torque 180 Ib4n (20 Nm)
Spark Plug Gap 0.020 in (0.50 ram)
The Enginewill not start.
1. Make sure the fuel tank is filled with cleanfuel. Do not use old fuel.
2. On a cold engine, push the primer button (optional on some models) three times.
3. Make sure the wire for the spark plug is connected to the spark plug.
4. There is too much fuel in the engine cylinder. Remove and dry the spark plug. Pull the
recoil starter handle several times. Install the spark plug. Connect the wire to the spark
plug. Start the engine.
5. The engine is difficult to start in heavy or high grass. Move the mower to aclean dry
surface.
6. Make sure the engine stop lever is in the operating position.
7. Make sure the fuel valve is in the ON position.
Spark Plug Gap 0.020 in (0.50 ram)
i; _!ii
Spark Plug Torque 180 Ib.in (20 Nm)
Spark Plug Gap 0.020 in (0.50 mm)
ii iii!
SParkPlug T0rque !80 !b-io (20 Nm)
The Enginewill not stop.
1. Release the engine stop lever.
2. Check the engine stop cable. Replacethe cable if bent or damaged.
TheEngineperformanceis had.
1. Check the height of cut settings. Raise the height of cut if the grass is high.
2. Check the bottom of the blade housing. Clean the blade housing of grass and other
debris.
3. Check the wire to the spark plug. Make sure the wire is connected.
[=e=_J 15
