BE3920 Edition 05/2020 Page 2 of 16
Brinkmann Immersions pumps of the series TH/STH2 ... TH/STH6
Contents
1 Indication to the manual .................................... 2
2 Description of product .................................... 2-8
3 Safety instructions ............................................. 9
4 Transport and storage ....................................... 9
5 Installation and Connection ............................. 10
6 Start up / Shut down ........................................ 11
7 Operation ......................................................... 11
8 Servicing and Maintenance ............................. 11
9 Trouble shooter’s guide ................................... 12
10 Spare part .................................................. 13-14
11 Repair ........................................................ 14-15
12 Disposal .......................................................... 15
13 EC declaration of conformity ........................... 16
1 Indication to the manual
This operating manual gives basic instructions
which are to be observed during installation, opera-
tion and maintenance of the pump. It is therefore
imperative that this manual be read by the respon-
sible personnel and operator prior to assembly and
commissioning. It is always to be kept available at
the installation site.
1.1 Identification of safety instructions in
the operating manual
Safety instructions given in this manual non-
compliance with which would affect safety are
identified by the following symbol
Safety sign according with
ISO 3864 – B.3.1
or where electrical safety is involved, with:
Safety sign according with
ISO 3864 – B.3.6
Where non-compliance with the safety instructions
may cause a risk to the machine and it’s function
the word
ATTENTION
is inserted.
2 Description of product
2.1 General description of the pump
Pumps of this type are multi-stage rotary pumps.
Series TH/STH use closed impellers in order to
minimizing power consumption and to optimize
hydraulic pump efficiencies. In addition, the
TH/STH series offers high pressures at short im-
mersion depths.
The pump shaft and the motor shaft are connected
by a coupling. The pump shaft is sealed by a rotat-
ing mechanical seal. The pump is protected again
impurity by a filter. Pump and motor form a compact
and space-saving unit.
Vertically mounted pumps are equipped with a
mounting flange. The pump end immerses into the
tank and the motor extends vertically above the
tank.
2.2 Intended use
The immersion pumps of the series TH/STH have
been especially developed to supply internally
cooled tools with coolant fluid within the limiting
application in accordance with table 1.
Limit of Application (Table 1)
ATTENTION
The pumps are to be operated within their design
limits. Applications outside of these limits are not
approved. The manufacturer is not responsible for
any damages resulting from use of the pumps in
such applications.

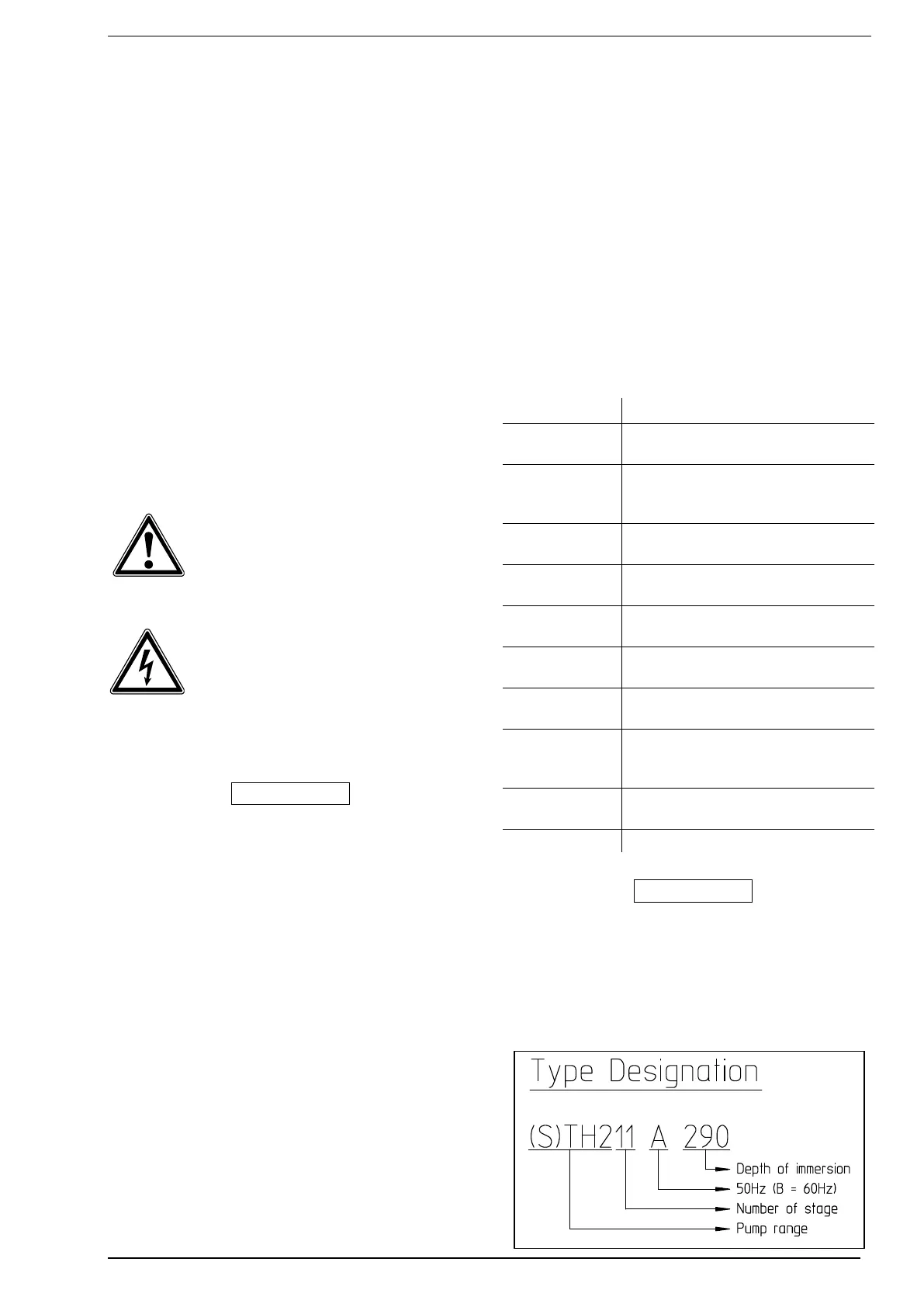

2.3 Type Designation
Type
TH/STH2...6
Mediums
Industry water, cooling emulsions,
cooling- and cutting-oils
Kinetic viscosi-
ty of the medi-
um
...25 mm
2
/s
Temperature of
medium
0 ... 80 °C
Particle-size in
the medium
1 mm
max. operation
pressure
27 bar
min. delivery
volume
1% of Q max.
Dry running
The pumps are not suitable for dry
running.
Switching-on
frequency per
hour
Motors less 3 kW max. 200
from 3 kW to 4.0 kW max. 40
from 5.0 kW to 10.3 kW max. 20
Ambient tem-
perature
40 °C
Set-up altitude
1000 m
