Brinkmann Camping lantern - Shutter Control

3
To Replace Bulb
Only use fluorescent bulbs that are designed for the Brinkmann
Rechargeable Fluorescent & L.E.D. Camping Lantern as a
replacement. Use of any other bulb may result in poor performance
and may damage your lantern.
Step 1: Remove the retaining nut on the top of the lantern.
Step 2: Remove the top cap of the lantern.
Step 3: Remove the inner cap by turning it counterclockwise.
Step 4: Pull the fluorescent tube out of the lantern.
Step 5: Replace a new fluorescent tube by inserting it into lantern.
Step 6: Close and secure the inner cap by turning it clockwise.
Step 7: Replace the top cap by aligning the center hole of the top cap with
the center screw.
Step 8: Firmly secure the retaining nut back in place.
FUNCTION
SELECTOR
L.E.D.
OFF/RECH.
FLUORESCENT
FLUORESCENT
+
L.E.D.

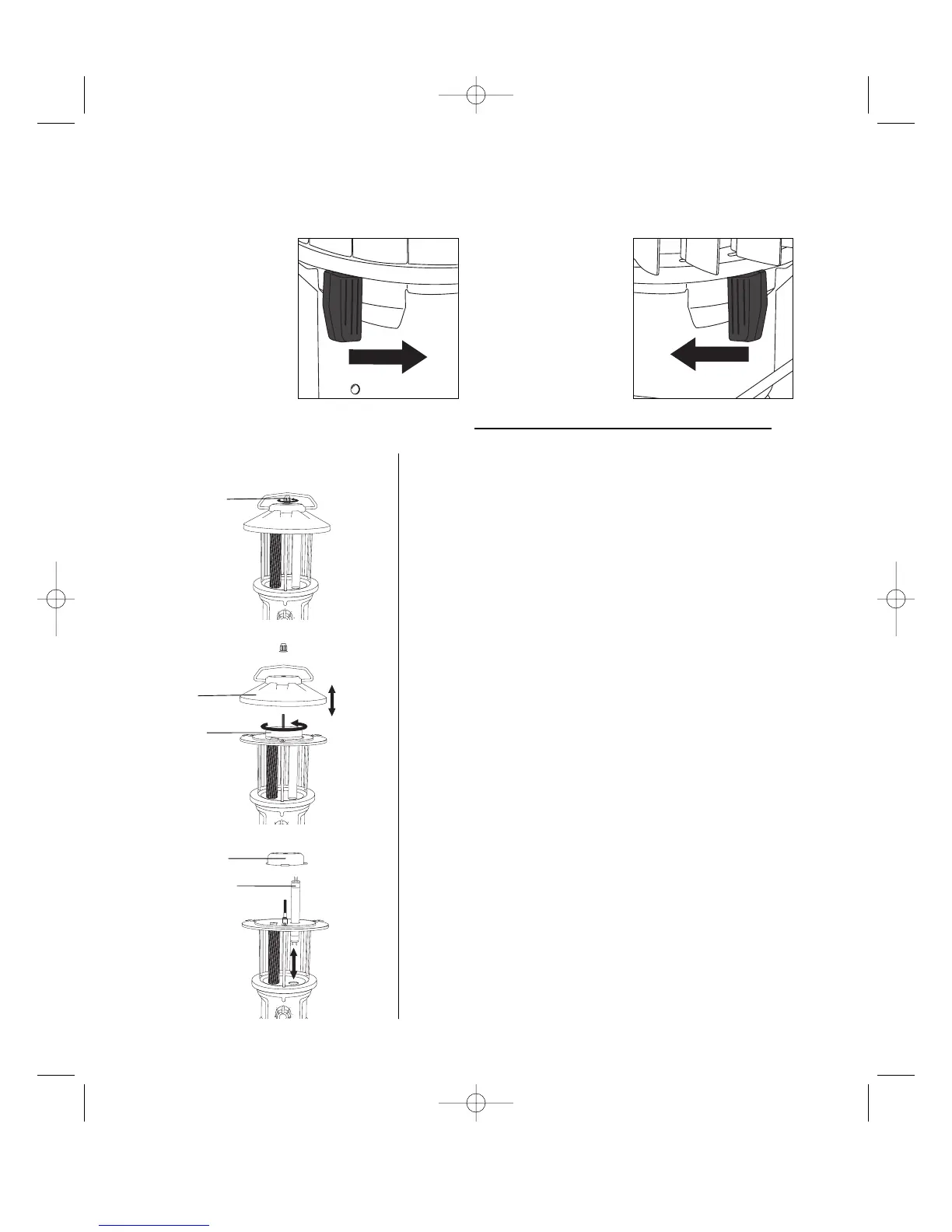

Shutter Control
For directional lighting, slide lever over to
right to close shutter.
For 360º lighting, slide lever over to
left to open shutter.
L.E.D.
OFF/RECH.
FLUORESCENT
FUNCTION
SELECTOR
L.E.D.
OFF/RECH.
FLUORESCENT
FLUORESCENT
+
L.E.D.
Retaining
Nut
Top Cap
Inner Cap
Fluorescent
Tube
Inner Cap
