x4

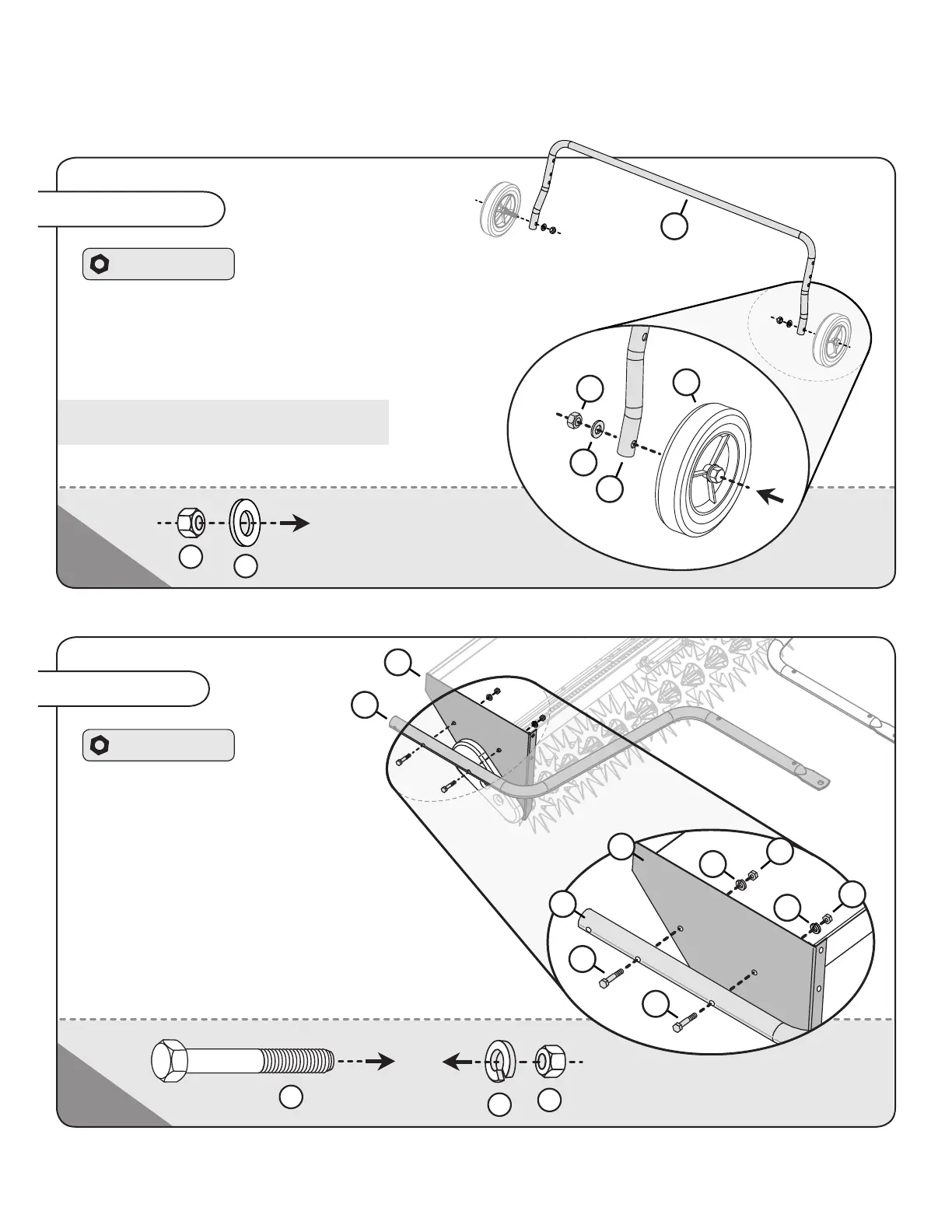

Assembly Step 2
Hardware Panel 2
1. Align one of the tow bars (20) with
the small, side panels of the hopper
assembly (7) as illustrated.
2. From the outside edge of the hopper, run
two 5/16 x 2” hex bolts (34) through the tow
bar and hopper assembly (7).
3. Tightly secure each bolt (34) in place with a 5/16”
lock washer (44) and 5/16” jam nut (40).
4. Repeat this step on the other side of the hopper with
the additional tow bar and hardware provided.
34
40
44
34
44
44
40
40
20
20
7
7
34
ASSEMBLY
English Manual
( and the hardware bag )
8 L-1711BH-F
x2
Assembly Step 1-B
Hardware Panel 1
60
47
1. Add a wheel (28) from Step 1-A to the support assembly
(21). NOTE: Run each bolt from the outside, through the
holes at the base of the assembly as illustrated.
2. Add one 1/2” at washer (47)
to the 1/2 x 3-1/2” hex head bolt (32).
3. Tightly secure in place with one of the 1/2”
lock nuts (60) from the hardware bag.
Repeat this step with the other wheel as illustrated.
47
21
21
28
60
To Next Page
