Lighting the Boiler - User Control Panel
General Description
The User Control Panel consists of
two toggle buttons, a reset button
and display, which will indicate, with
symbols, the status of the boiler,
refer to diagram 2.

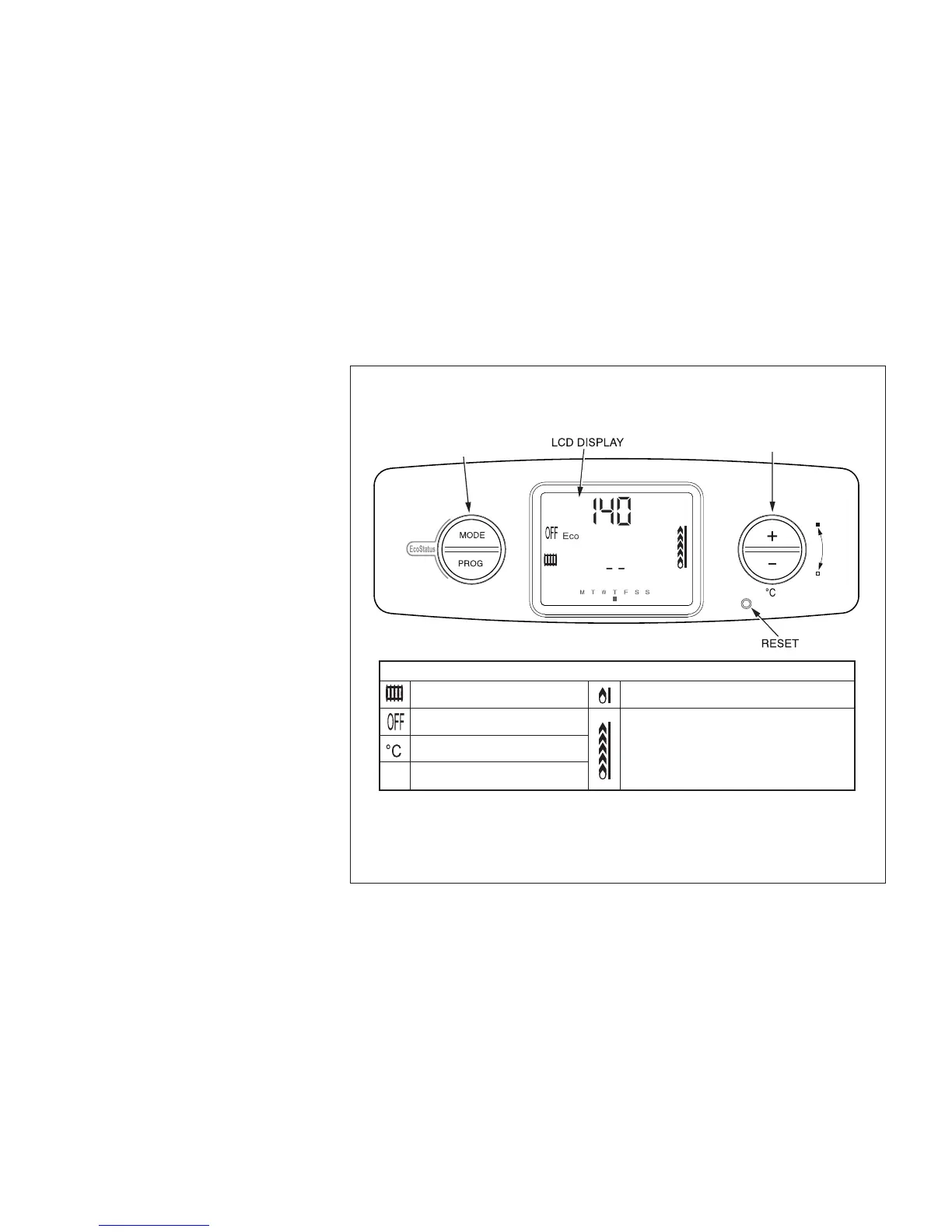

Diagram 2
14619
MODE
CONTROL BUTTON
WATER FLOW TEMPERATURE
CONTROL BUTTON
SYMBOLS DISPLAYED ON THE LCD AND DESCRIPTIONS
Max burner display
Glow-worm control (Optional)
Min burner display
Temperature
Appliance OFF
Central Heating Function
Ext
