8
300mm
• From a flue terminal, cowl or combustion air intake.
• Below eaves, balconies or other projections.
• From the ground, above a balcony or other surface.
• To a return wall or external corner.
• Measured horizontally, from an opening window, door, non-mechanical air inlet or any other opening into the
building (except sub floor ventilation) or 1500mm in direction of discharge.
500mm
• From an electricity meter or fuse box (prohibited area extends to ground level).
1000mm
• Measured vertically, from an opening window, door, non-mechanical air inlet or any other opening into the
building (except sub floor ventilation).
• From a gas meter.
• From a mechanical air inlet, including a spa blower, measured both vertically and horizontally.
• A flue terminal of this type shall not be located under a roofed area, unless the roofed area is fully open on at
least two sides, and a free flow of air at the appliance is achieved.
4. StarPro B-Max Model Guidelines

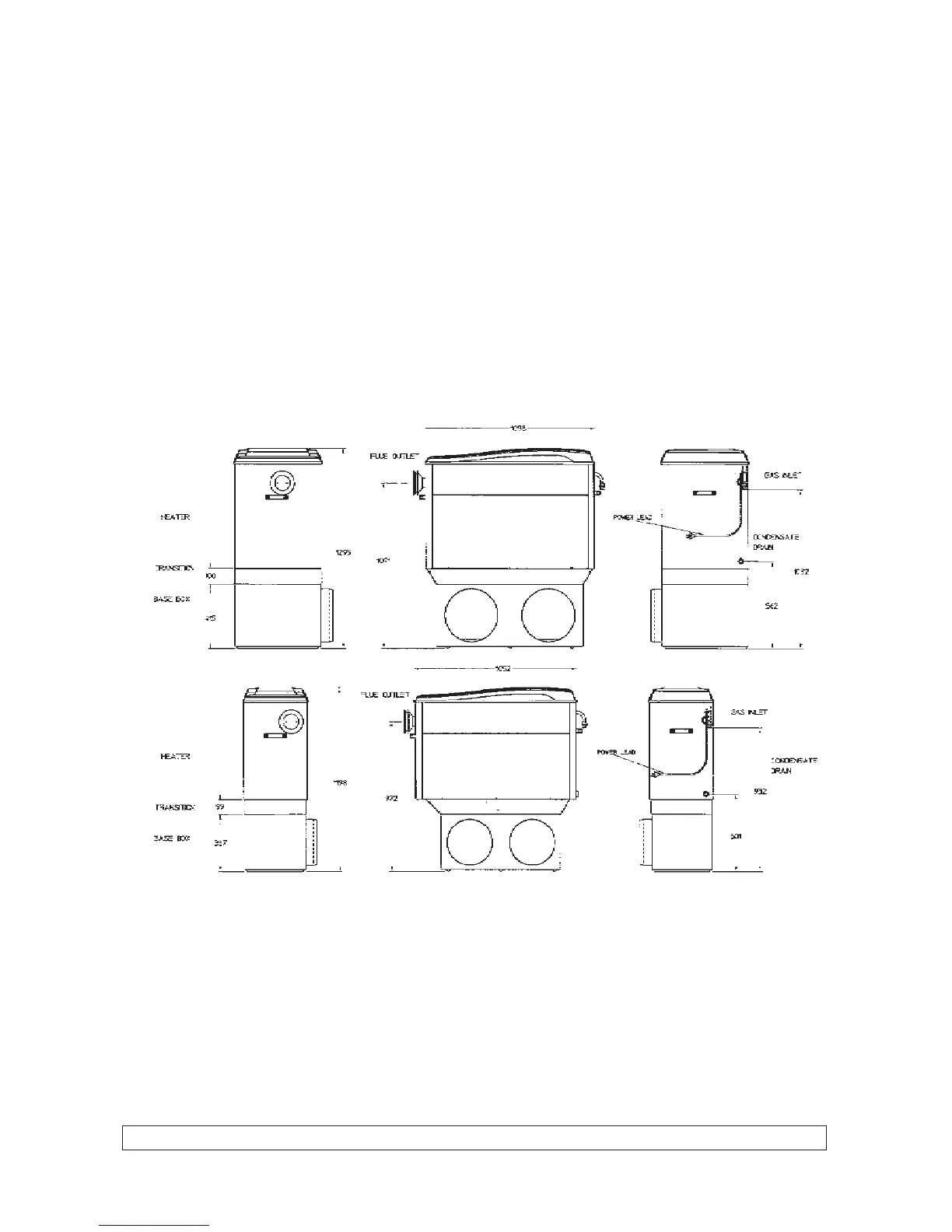

4.1 Heater Dimensions
4.2 Service Clearances
Side A minimum of 500mm must be provided at the side facing away from the house.
Front/Back A minimum of 300mm must be provided at each end of the heater.
Top A minimum of 1000mm must be provided above the heater r
oof. This clearance must be maintained for the
entire surface area of the heater roof.
4.3 Installation of Flue Terminal
The flue terminal is supplied inside the heater under the roof. On one end of the heater you will find the flue outlet
socket under an installer instruction label.
Remove the label and insert the flue terminal firmly into the flue outlet socket in the correct orientation to ensure
the f
lue gases are expelled away from the house (see diagram on page 7).
Note: The flue terminal must always be installed before starting the heater.
BH20E
BH28E
