BRKT ARM3780HD - Step 2 A: Center Universal Monitor Plate; Centering Monitor Plate on Panel; Step 2 B: Secure Universal Monitor Plate Vertical Rails; Securing Vertical Rails to Monitor Plate

P6

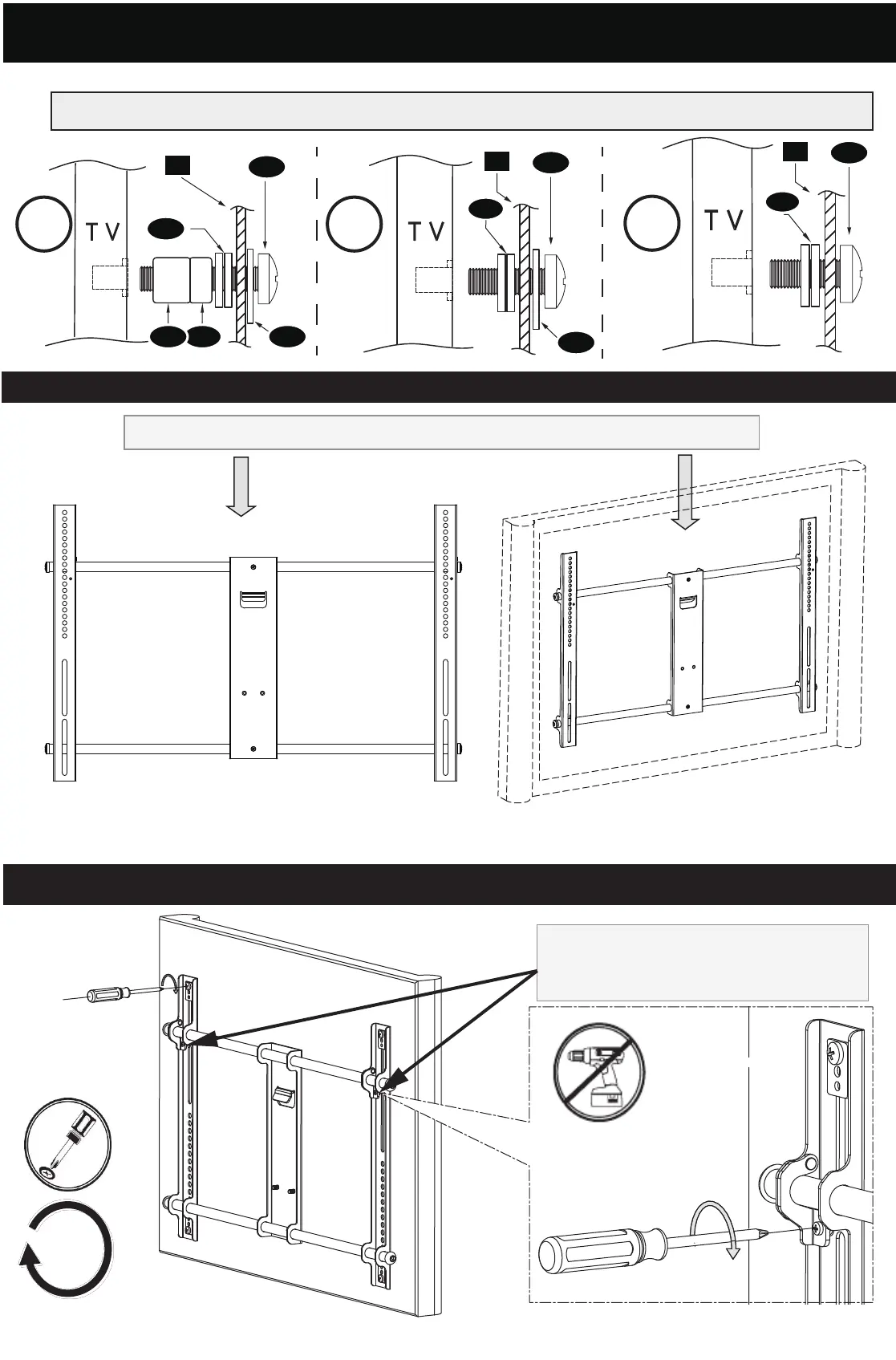

STEP 2A - CENTER UNIVERSAL MONITOR PLATE
Monitor Plate must be centered (horizontal plane) on back of flat panel
OPT
A
OPT
B
OPT
C
STEP 1- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT
ARE TOO LONG
B
4~7
11
11
11
8
8
910
Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into
back of flat panel television.
B
1~3
B
1~3
P 6
STEP 2B- SECURE UNIVERSAL MONITOR PLATE VERTICAL RAILS
X2
Secure vertical rails to horizontal
chrome rod on Monitor Plate with
pre-installed screws.
