Broadcom 96xx User Guide Broadcom
®
96xx PCIe 4.0, 24G SAS MegaRAID
™
and eHBA Tri-Mode Storage Adapters

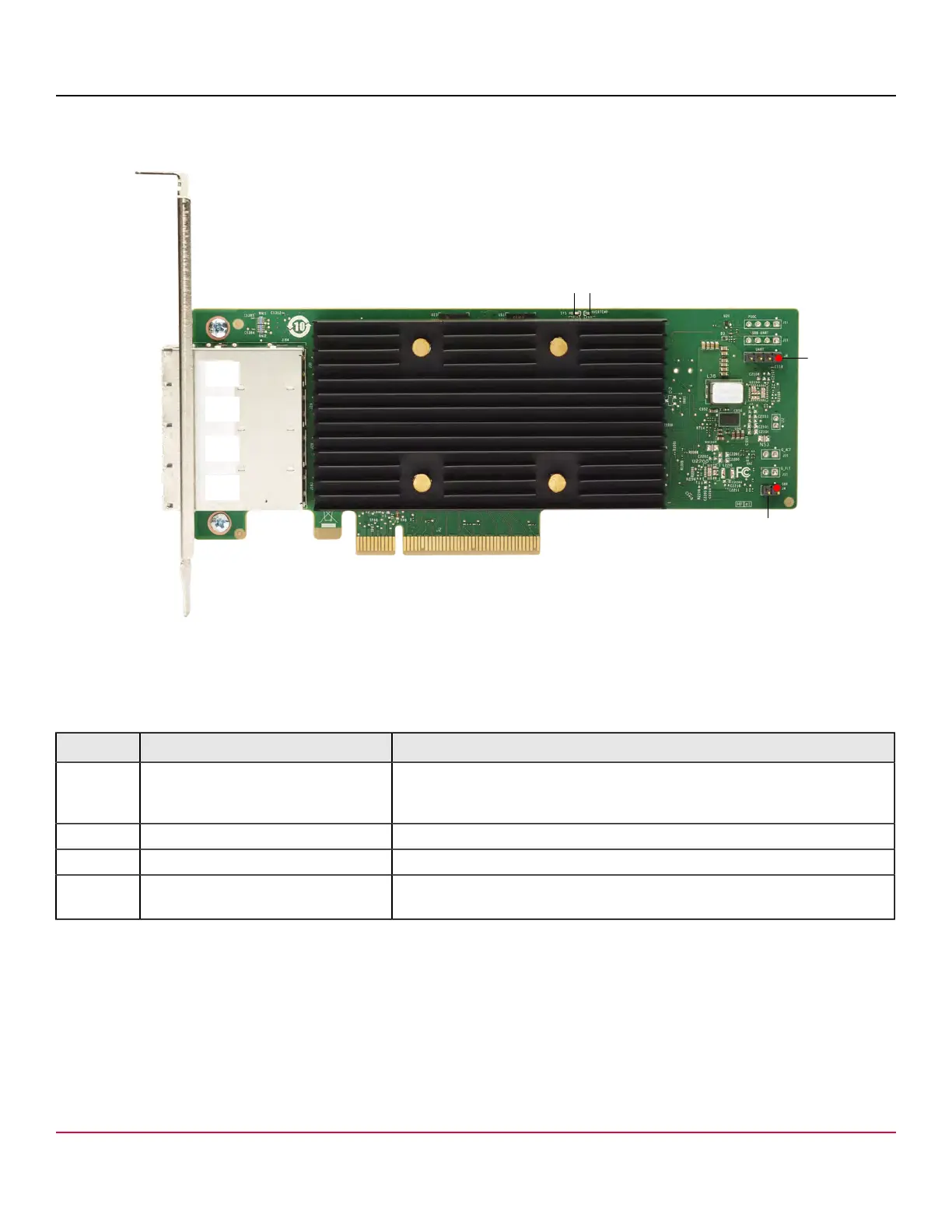

Figure 14: Card Layout of the eHBA 9600-16e Storage Adapter
J29
LED2LED3
J4
J2
J8
C3
C2
C1
C0
J30
J28
J163
The following table describes the headers and connectors on the adapter.
Table 37: Connectors
Connector Type Description
J2 Standard board edge connector PCIe x8 board edge connector.
With the PCIe interface, this connector provides power to the board and an I
2
C
interface connected to the I
2
C bus for the IPMI.
J4 Default SBR header
2-pin connector. Reserved for Broadcom use.
J8 Onboard serial UART connector
4-pin connector. Reserved for Broadcom use.
J30, J29,
J28, J163
Storage interface connectors Four SFF-8674 external connectors.
Connect the adapter by cable to the storage devices.
The following table describes the LEDs on the adapter.
