Broan B5630SS - Service Parts; Wiring Diagram

MODELS B5630SS • B5636SS • B5730SS • B5736SS
Page 9

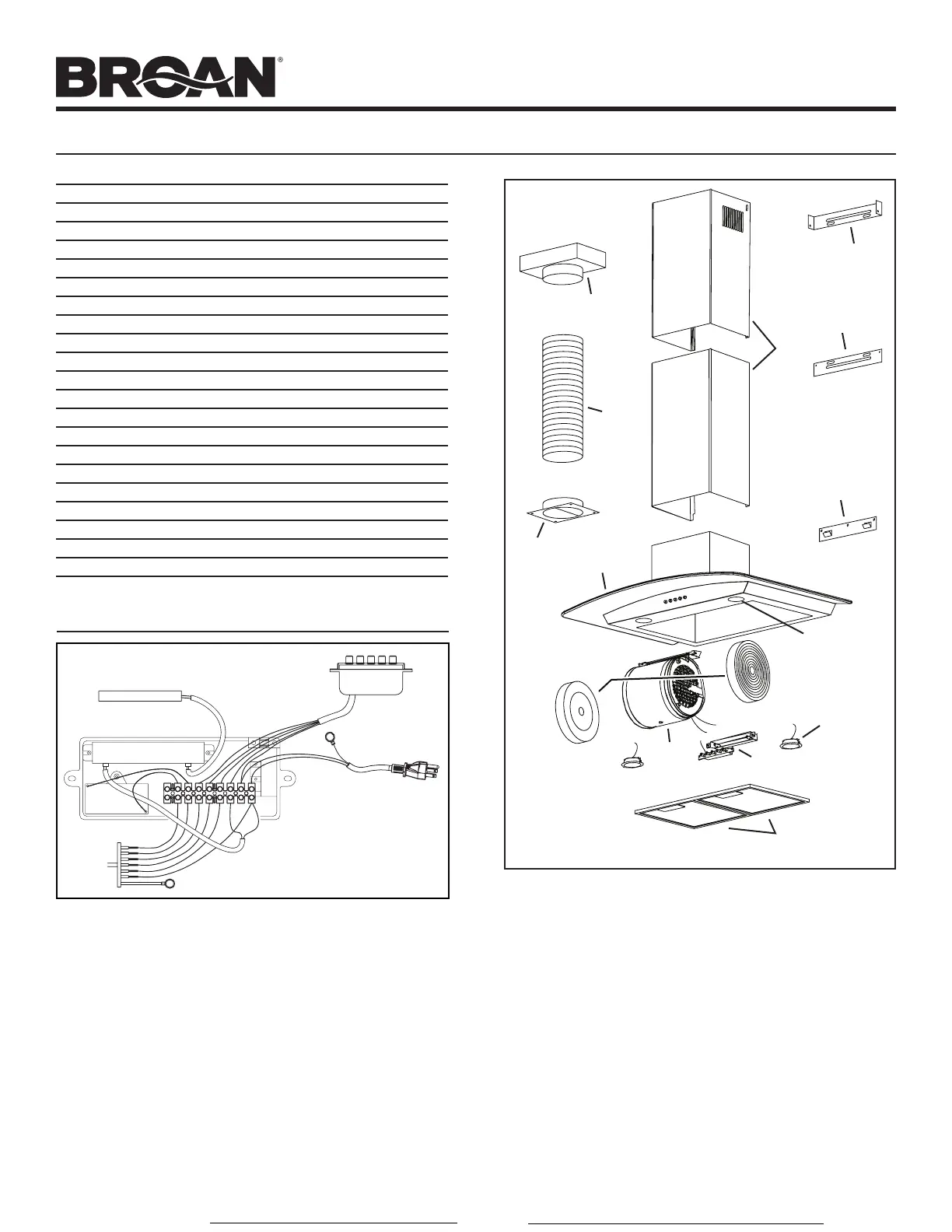

SERVICE PARTS
1
2
4
5
6
7
9
10
11
12
13
14
KEY PART NO. DESCRIPTION QTY.
1 S99526973 Decorative Upper and Lower Flues 1
2 S99526974 Motor / Blower Assembly 1
3 S99526975 Light Socket Assembly 2
4 S99527010 Light Trim Ring / Lens Assembly 2
5 S99526976 Push Button Assembly 1
6 S97018029 Aluminum Grease Filters (pair) 2
7 S97018030 Non-Duct Recirculation Filters (pair) 2
8 S99526981 Curved Glass Plate (B5630SS) 1
S99527024 Curved Glass Plate (B5636SS) 1
S99526982 Curved Metal Plate with Rail (B5730SS) 1
S99527025 Curved Metal Plate with Rail (B5736SS) 1
9 S99526983 Damper / Duct Connector 1
10 S99526984 6” Dia. Expandable Flexible Aluminum Duct 1
11 S99526985 Non-Duct Plenum Assembly 1
12 S99526987 Hood Mounting Bracket 1
13 S99526989 Lower Flue Mounting Bracket 1
14 S99526991 Upper Flue Mounting Bracket 1
S99527011 Transformer (not shown) 1
S99527012 Capacitor (not shown) 1
S99527013 Plastic Cover (not shown) 1
S99526994 Parts Bag (not shown) 1
Order service parts by Part No. - not by Key No.
8
WIRING DIAGRAM
TO MOTOR
HALOGEN LIGHTS
TRANSFORMER PCB
CAPACITOR
PUSHBUTTON
B
R
N
B
L
K
BLK
BLK
R
W
Y
B
R
N
WG
R
Y
B
L
K
O
BLK
W
R
BRN
WOR
stop low mid
high lamp
GRN
B
L
K
BLU
W
GRN / YLW
3
