INSTALLATION MANUAL
INSTALLATION
9

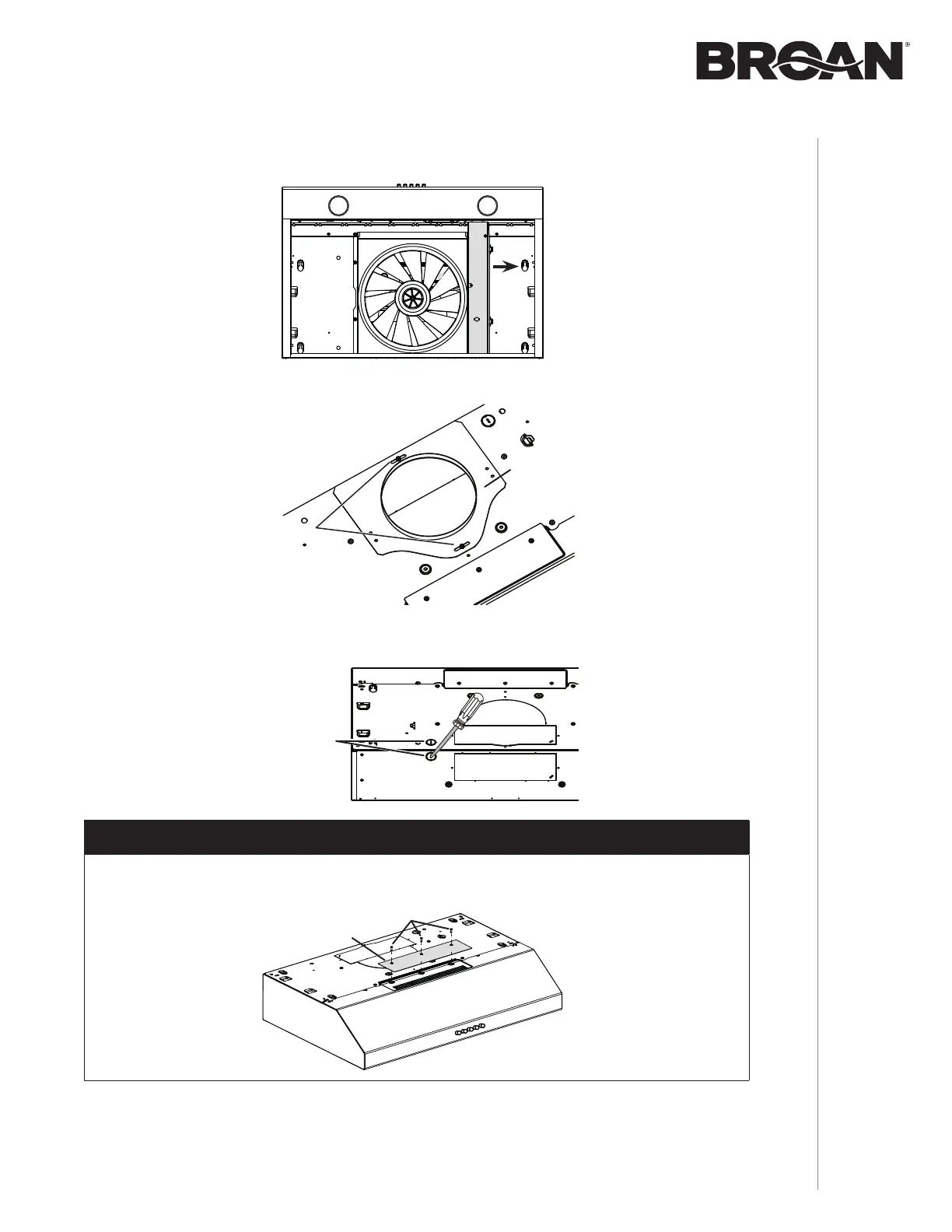

4 ] Remove the wiring cover (shaded part on illustration below) by sliding it out from the hood
and set it aside.
5 ] Remove 7” Round Duct Plate from top/back of hood (see illustration below).
6 ] Remove Electrical Power Cable Knockout from top (vertical wiring) or back (horizontal wiring)
of hood. Install an appropriate strain relief, 1/2” diameter (not included)
7” ROUND
DUCT
PLATE
2 SCREWS
ELECTRICAL
POWER CABLE
KNOCKOUT
RECIRCULATION
COVER PLATE
SCREWS
NON-DUCTED INSTALLATION ONLY
7 ] Remove 3 screws retaining the recirculation cover plate (shaded part in illustration
below) to the hood. Discard this plate with its screws.
To Next Page
