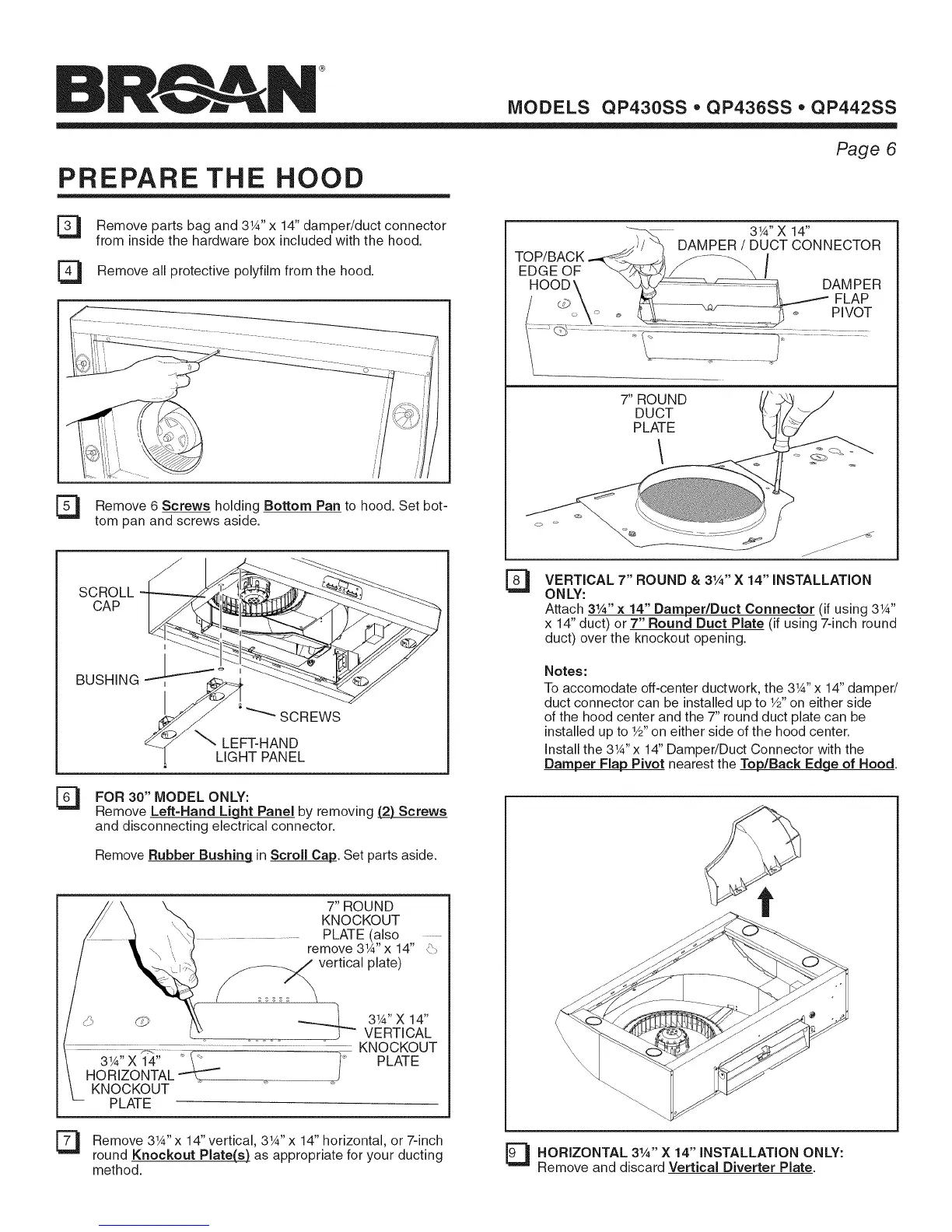

PREPARE THE HOOD
Remove parts bag and 3W' x 14" damper/duct connector
from inside the hardware box included with the hood.
Remove all protective polyfilm from the hood.
El Remove 6 Screws holding Bottom Pan to hood. Set bot-
tom pan and screws aside.
SCROLL
CAP
BUSHING _ °
I
_ SCREWS
LEFT-HAND
LIGHT PANEL
7" ROUND
DUCT
PLATE
VERTICAL 7" ROUND & 3W' X 14" INSTALLATION
ONLY:
Attach 3W' x 14" Damper/Duct Connector (if using 3W'
x 14" duct) or 7" Round Duct Plate (if using 7-inch round
duct) over the knockout opening.
Notes:
To accomodate off-center ductwork, the 3W'x 14" damper/
duct connector can be installed up to 1/2"on either side
of the hood center and the 7" round duct plate can be
installed up to W' on either side of the hood center.
Install the 3W'x 14" Damper/Duct Connector with the
Damper Flap Pivot nearest the Top/Back Edge of Hood.
FOR 30" MODEL ONLY:
Remove Le_Hand Light Panel by removing (2) Screws
and disconnecting electrical connector.
Remove Rubber Bushing in Scroll Cam. Set parts aside.
7" ROUND
KNOCKOUT
PLATE (also .......
remove 3W'x 14" <%
vertical plate)
./_ (_ 31A"X 14"
VERTICAL
KNOCKOUT
3W' X 14" .1_j PLATE
®
KNOCKOUT
PLATE
3 Remove 3_A'' x 14"vertical, 3W' x 14" horizontal, or 7-inch
round Knockout Plate(s) as appropriate for your ducting
method.
I_ HORIZONTAL 3W' X 14" INSTALLATION ONLY:
Remove and discard Vertical Diverter Plate.
