Broan K41 - Install Backsplash; Install the Ductwork; Install Mounting Brackets; Install the Hood

- 3 -
DEPTH ADJUSTMENT
SCREWS
FRAMING BEHIND DRYWALL
WALL FRAMING
ADDITIONAL
MOUNTING
SCREWS
RECTANGULAR CUTOUTS
MOUNTING
BRACKETS
HEIGHT
ADJUSTMENT
SCREWS
ADDITIONAL
MOUNTING
SCREWS
38
3
/
1
6
 to 44
3
/
1
6
 above cooktop
38
3
/ 16 "= bottom of hood 24" above cooktop
44
3
/ 16 "= bottom of hood 30" above cooktop
24” TO 30” ABOVE
COOKING SURFACE
ROOF CAP
WALL
CAP
6” ROUND
ELBOW
(8” for
K42)

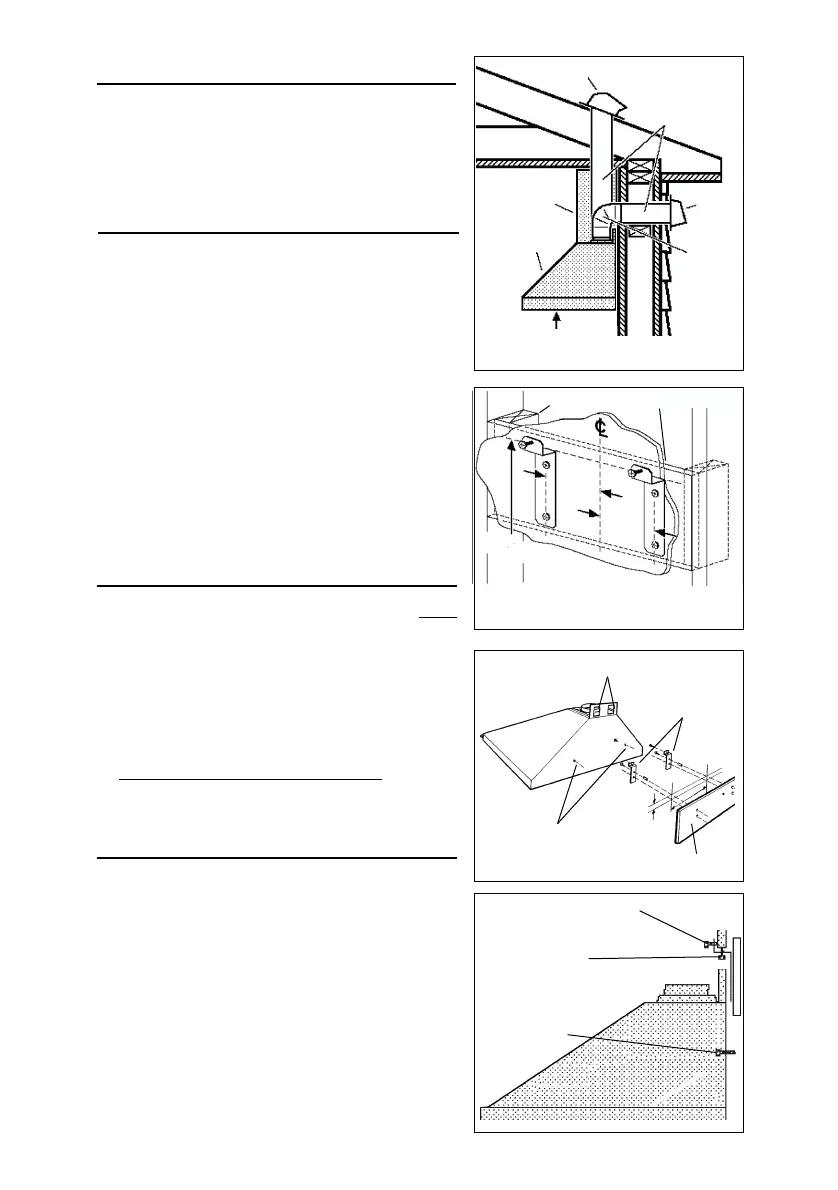

INSTALL BACKSPLASH (OPTIONAL)
If optional backsplash are used, attach it to the
finished wall. Secure hood mounting brackets
to the backsplash and omit wall framing
described below.
INSTALL THE HOOD
3. Hang the hood from the brackets through
the rectangular cut-outs on the back of the
hood. Cut-outs are larger than the brackets
to allow for horizontal adjustment.
The bottom of the hood should be 24" to 30"
above the cooking surface.
4. Height adjustment screws provide vertical
adjustment.
5. Depth adjustment screws provide
horizontal adjustment.
6. Secure the hood with additional mounting
screws. Use drywall anchors, provided, if
wall studs or framing are not available.
INSTALL MOUNTING
BRACKETS
1. Construct wood wall framing that is flush
with interior surface of wall studs.
Make sure:
a) the framing is centered over installation
location.
b) the height of the framing will allow the
mounting brackets to be secured to the
framing within the dimensions shown.
2.
After wall surface is finished, secure
mounting brackets to framing using
dimensions shown.
INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only
metal ductwork.
1. Decide where the ductwork will run between
the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most efficiently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use as
few of them as possible.
4. Install a roof or wall cap. Connect 6" round
metal ductwork (8” for K42) to cap and work
back towards hood location. Use duct tape
to seal the joints between ductwork sections.
3-3/4
3-3/4
HOOD
DECORATIVE
FLUE
6” ROUND
DUCT
(8” for K42)
