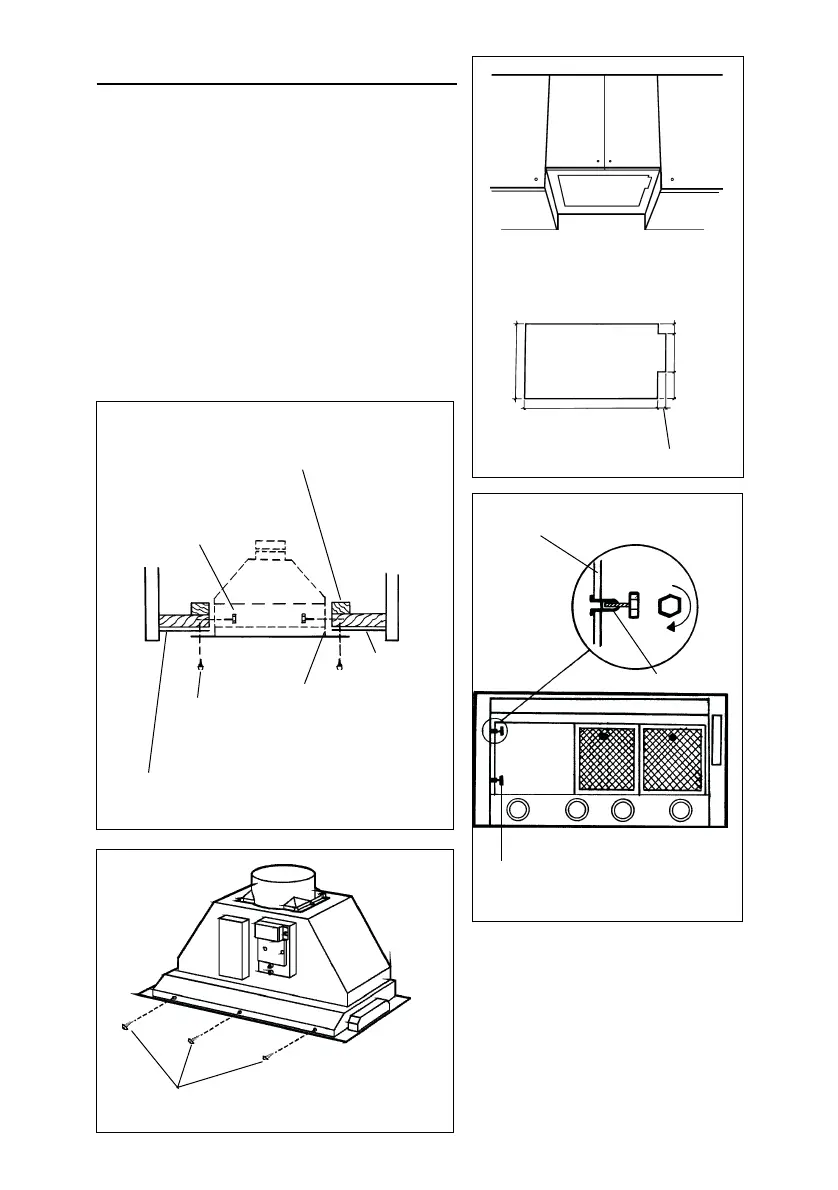

INSTALL THE HOOD
1. Cut a hole in the bottom of the pensile
cupboard in order to settle the hood.
2. Insert (3) supplied metric screws through
side of hood behind filters with bushing
so they do not protrude externally.
3. Insert the appliance and fix it temporarily
by screwing the 3 screws A.
4. After unit is inserted and is flush to bottom
of opening, use the (4) supplied screws
on the metal flange face and secure to
bottom face to draw the flange in flush.
If necessary you can fix it additionally
inserting the screws B into the two longer
sides of the hood.
(3) METAL
SCREWS A
4 SCREWS
(TYPICAL)
METAL OR
OTHER NON-
COMBUSTIBLE
MATERIAL
WOOD OR METAL
FLANGE TO SECURE
SIDES OF UNIT
BTM
SEE
CUTOUT
DIMENSIONS
CUT A HOLE IN THE BOTTOM OF
THE PENSILE CUPBOARD
26" - 34-11/16"
1-9/16"
1-9/16"
14-3/4"
8-11/16"
4-1/2"
FRAME
BUSHING
TOTAL
OF 3
3 METAL
SCREWS (A)
SCREWS B
