Page 4

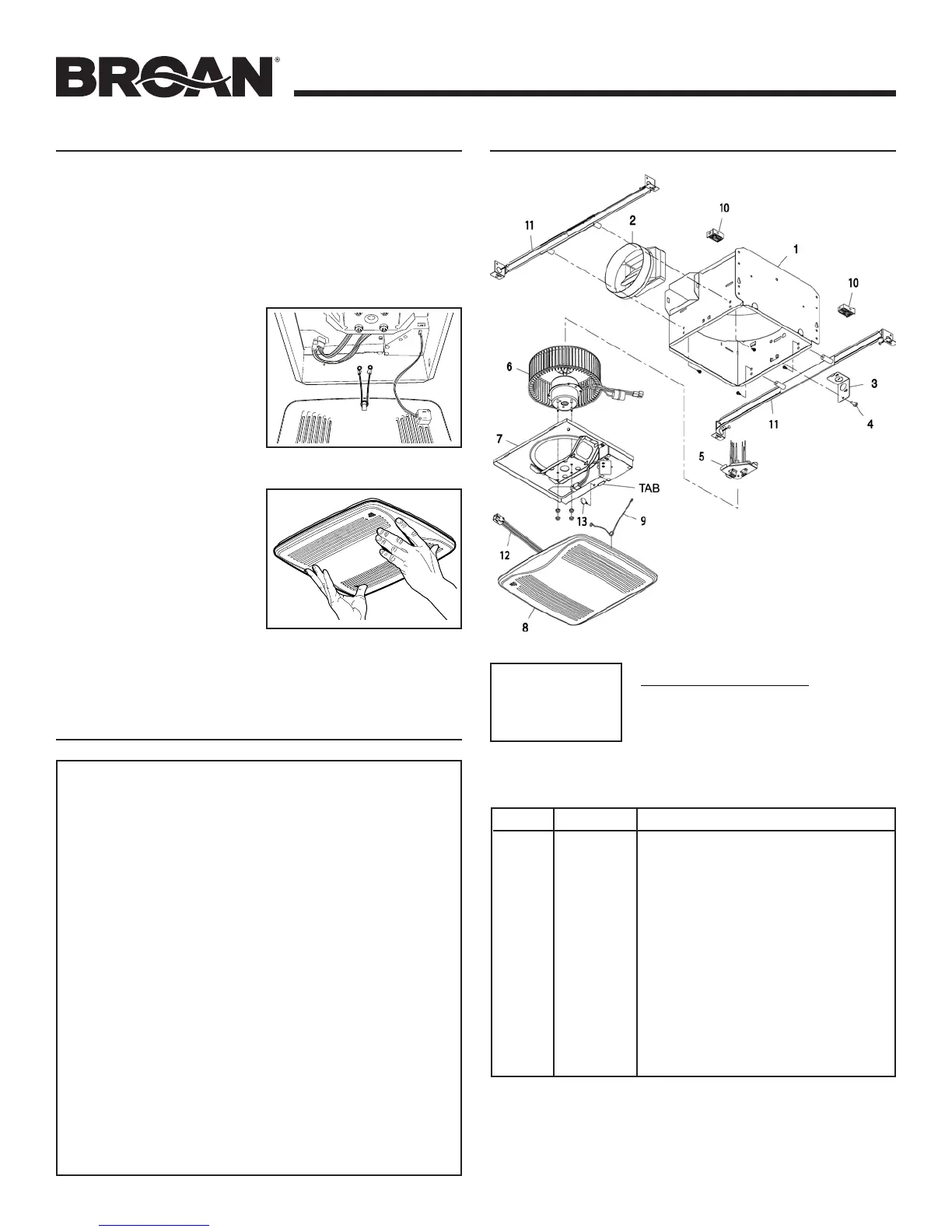

MODEL QTXE110S
SERVICE PARTS
99044985A
Key No. Part No. Description
1 97016466 Housing
2 97016450 Duct Connector-6”
3 98010102 Wiring Plate
4 99170245 Screw, #8-18 X .375
5 97017085 Wire Panel/Harness Assembly
6 97017999 Motor/Blower Wheel Assembly
7 97017083 Motor Plate & Control Assembly
* 97017087 Blower Assembly
(includes key nos. 6 & 7)
8 97016963 Grille Assembly
(includes key nos. 9 & 12)
9 99140199 Grille Spring (2 req’d)
10 97018014 Spacer (2 supplied)
11 QTHB1 Hanger Bar Kit
12 99271344 Sensor Wire Harness
13 99420665 Thumbscrew, #8-18 x .375
* Parts not listed are included with Assembly.
Order service parts by “Part No.” - not by “Key No.”
INSTALL GRILLE
6. Finish ceiling.
Install ceiling material. Cut out around housing.
7. Plug in wiring.
Plug wiring into the proper receptacles.
8. Attach grille to
housing.
Squeeze grille springs
and insert them into slots
on each side of housing.
9. Push grille against
ceiling.
WARRANTY
SERVICE NOTE
To remove Blower Assembly: Unplug motor.
Remove thumbscrew (13) from motor plate
flange. Find the single TAB on the motor plate
(located next to the receptacle). Push up near
motor plate tab while pushing out on side of
housing. Or insert a straight-blade screwdriver
into slot in housing (next to tab) and twist
screwdriver.
Replacement parts
can be ordered on
our website. Please
visit us at
www.broan.com
BROAN THREE YEAR LIMITED WARRANTY
Broan warrants to the original consumer purchaser of its products that such products
will be free from defects in materials or workmanship for a period of three years from
the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this three-year period, Broan will, at its option, repair or replace, without charge,
any product or part which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND
TUBES. This warranty does not cover (a) normal maintenance and service or (b) any
products or parts which have been subject to misuse, negligence, accident, improper
maintenance or repair (other than by Broan), faulty installation or installation contrary
to recommended installation instructions.
The duration of an implied warranty is limited to the three-year period as specified
for the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.
BROAN’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN’S OPTION, SHALL BE
THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.
BROAN SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PER-
FORMANCE. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan at the address or telephone
number stated below, (b) give the model number and part identification and (c)
describe the nature of any defect in the product or part. At the time of requesting
warranty service, you must present evidence of the original purchase date.
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
