Broan ZB80 - New Construction: Wiring and Knockout Plate

ZB80
n
ZB110 Installation Guide
Page 5
3
4
1
2

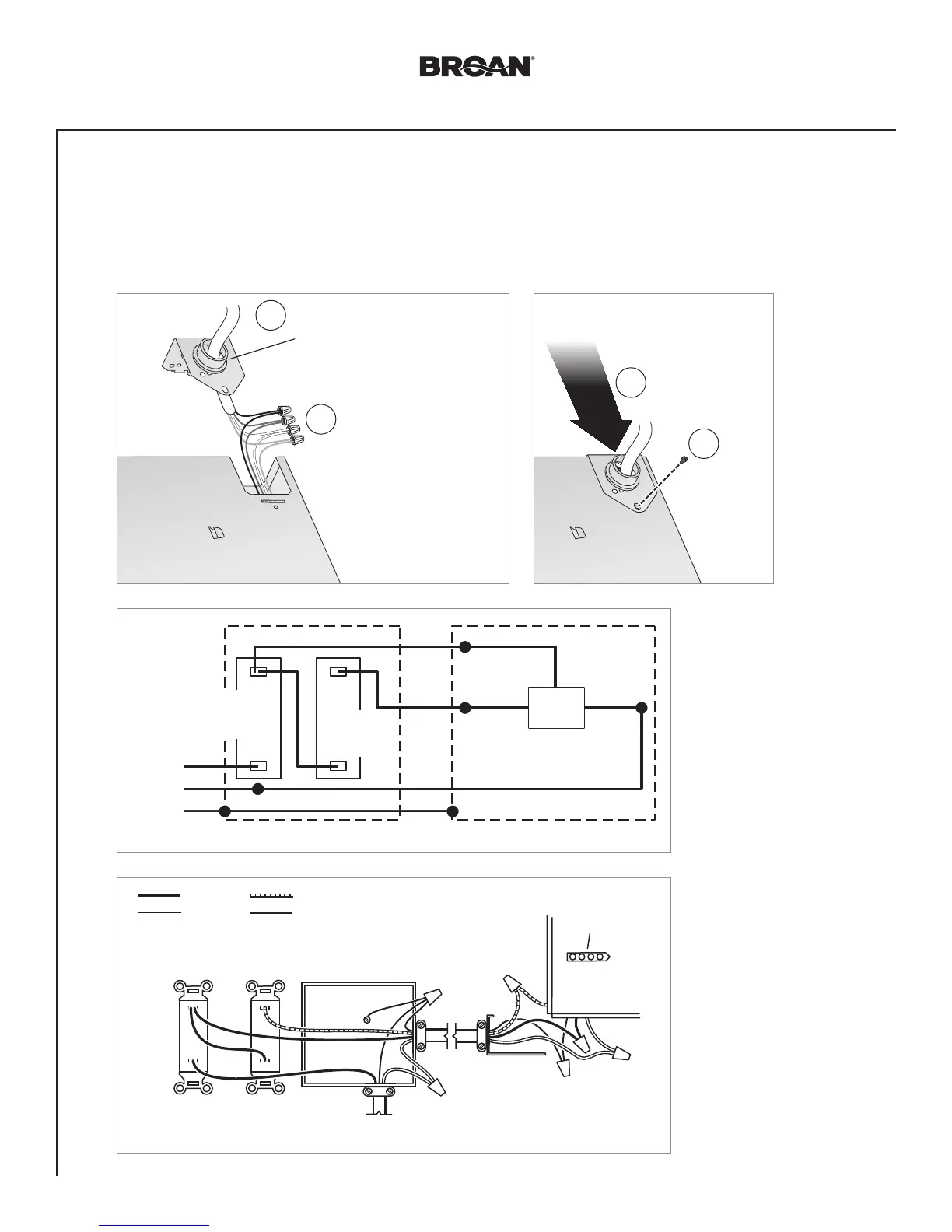

New Construction Installation
5
Connect Wires and Install Knockout Plate
• Run 120VAC electrical wiring to the installation location.
• Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag.
• Connect wires as shown in wiring diagram.
Screw from
Parts Bag
Attach cable clamp to Knockout
Plate. Knockout Plate mounts to
outside of Housing and may be
oriented as desired.
Connect wires
LINE
IN
GRD GRD
WHT
BLK
BLK
BLK
RED
WHT
WHTRED
MASTER
ON/OFF
SWITCH
MASTER
ON/OFF
SWITCH*
MODE
SELECT
SWITCH
MODE
SELECT
SWITCH*
FAN
UNITSWITCH BOX
KNOCKOUT
PLATE
RECEPTACLE
120 VAC
LINE IN
SWITCH BOX
BLACK
WHITE
RED
GROUND (green or bare)
*
purchase separately
LINE
IN
GRD GRD
WHT
BLK
BLK
BLK
RED
WHT
WHTRED
MASTER
ON/OFF
SWITCH
MASTER
ON/OFF
SWITCH*
MODE
SELECT
SWITCH
MODE
SELECT
SWITCH*
FAN
UNITSWITCH BOX
KNOCKOUT
PLATE
RECEPTACLE
120 VAC
LINE IN
SWITCH BOX
BLACK
WHITE
RED
GROUND (green or bare)
*
purchase separately
