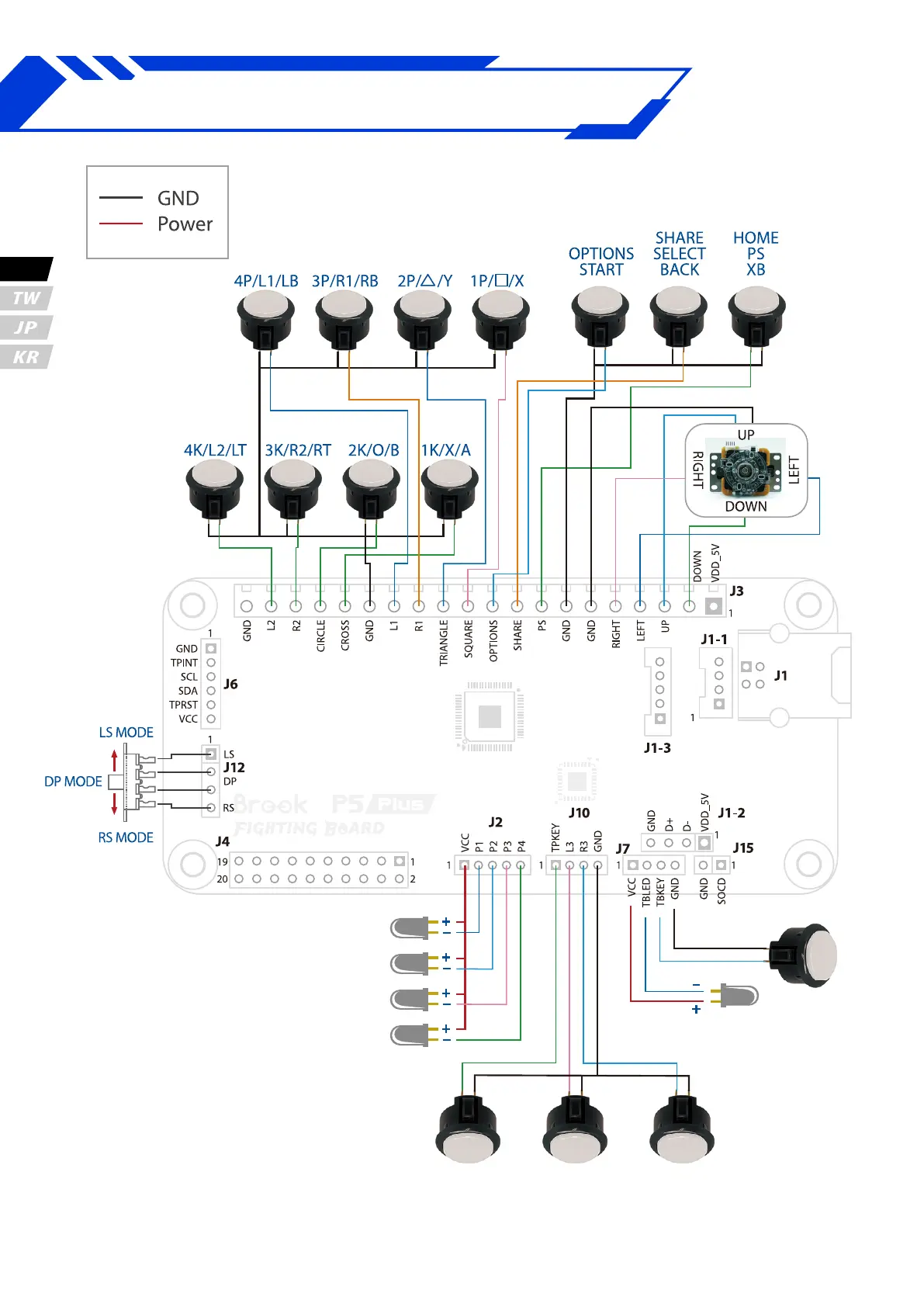

How to connect
GND
D+
D‒
VDD_5V
GND
GND
D+
D‒
VDD_5V
L3 R3
TURBO
KEY
TURBO
LED
PLAYER
LED
TOUCH PAD
KEY
VDD_5V GND 3K / R2 / RT 1K / X / A 4P / L1 / LB 2P / / Y START / OPTIONS SELECT / SHARE / BACK RIGHT UP
VDD_5V
GND
4K / L2 / LT
2K / / B
GND
3P / R1 / RB
1P / / X
HOME / PS / XB
