Brook Universal Fighting Board - J6-1 Cable Wiring Diagram; J8 Turbo Function Setting; J9 Pinout Diagram

4

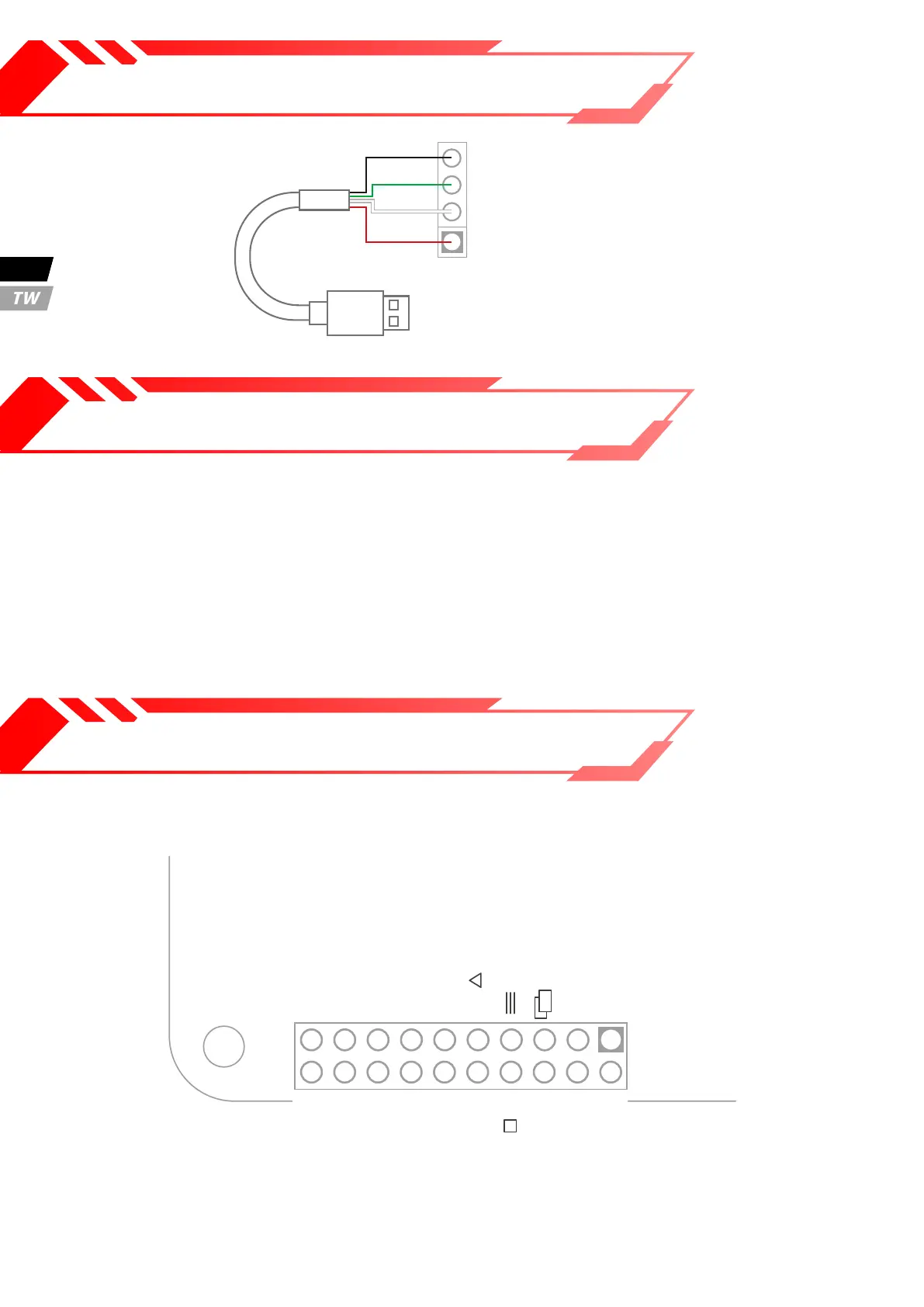

J6 - 1 Detail
G
D+
D-
V
Red
White
Green
Black
J8 Turbo function setting
Hold down the turbo button, then press the button for the
function you want to set or cancel.
The following buttons can be set to the Turbo function：
1P、2P、3P、4P、1K、2K、3K、4K、L3、R3
J9 Detail
VCC GND 3K/ R2/ RT 1K/ X/ A 4P/ L1/ LB 2P/ / Y
RIGHT UP
/ START/ OPTIONS / SELECT/ SHARE/ BACK
19
20
1
2
J9
VCC
GND
4K/ L2/ LT
2K/ 0/ B
GND
3P/ R1/ RB
HOME/ PS/ XB
LEFT
DOWN
1P/ / X
EN
TW
EN
TW
