Brook XB Fighting Board - Console Connectivity; Console USB Interface Setup

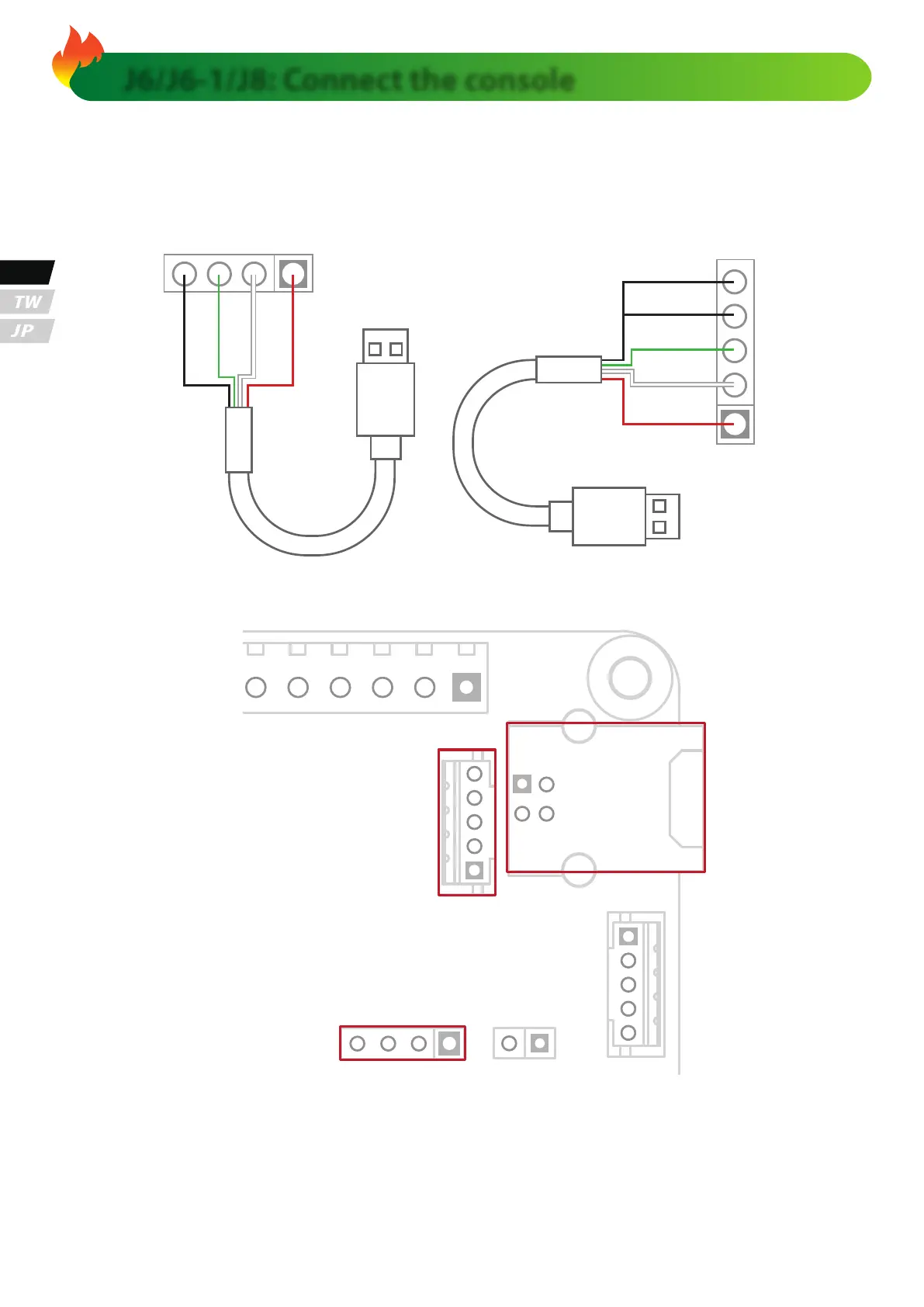

J6/J6-1/J8: Connect the console
Choose one USB interface with a corresponding USB extension cable
for the connection.
＊When using J6 and J6-1, please double-check whether the
corresponding pin order is correct.
＊Improper connection may cause the ghting board to burn.
G D+ D- V
J6-1
Red
White
Green
Black
G
D+
D-
V
Red
White
Green
Black
J6
J6-1
GND D+ D- VDD_5V
1
1
Y
X
MENU
VIEW
GUIDE
GND
1
SHARE LSB RSB GND
J13
1
J10
1
3DVR_EN
GND
1
J6
J8
GND
D+
D -
VDD_5V
5
EN
JP
TW
