eVo5MS07‐11  08/07/2011

Assembly–Logstorageoption
Onarrivalyourstovewillbecompletewithoutsmallbase.Thelogstorewillbeshippedseparately.
Onopeningthestovepackagingthefirststepistoremovethegrateandgratesupportalongwith
theashpan.
Nextsteprequiresthetemperatureshieldatthe
topofthelogbasetoberemoved.Thisisdoneso
bylooseningthesecuringclips(Seefigure3b).Thestovebodycannowbeattachedtothetopofthe
logbase.Thereare2holesthatallowconnectionbetweenthelogstoreandthebaseofthe
stove,
pleaseusethescrewsprovided.(SeebelowFigure3a).
Itisimportanttoensurethelogstoreislevelbeforeapplyingthestove.Atthisstageitis
recommendedtositethelogstoreinpositionandmakelevel.Thereareadjustmentboltsonthe
baseforthisstep.Once
stablethestovecannowbeattached.Itmayrequire2peopletoliftthe
stovesectionintoposition.
Oncethestovehasbeenliftedintopositionensurethe2holeslineupwiththelogbase.Pleaseuse
boltspro videdandensurethereisatightconnectionandthat
thestoveandlogbasearesecurely
attached.




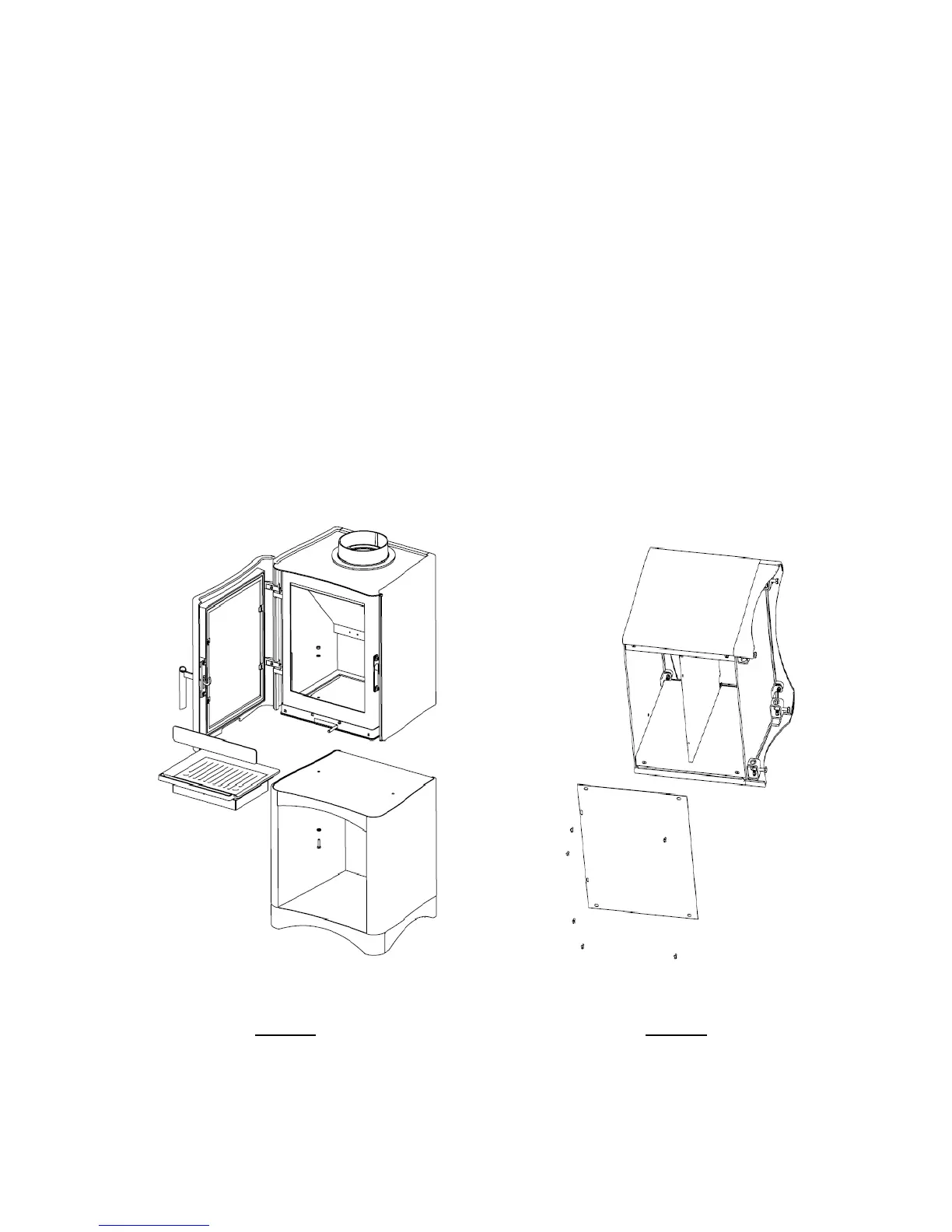

Figure3a
      Figure3b


