eVo5MS07‐11  08/07/2011

Assembly–Smallbaseoption
Thestovewillarriveseparatelyfromthesmallbase.Thisbasecanbeeasilyfittedonsite.On
openingthestovepackagingthefirststepistoremovethegrateandgratesupportalongwiththe
ashpanandlogretainer.Thestovebodycannow
beattachedtothetopofthesmallbase.Thereare
2holesthatallowconnectionbetweenthesmallbaseandthebaseofthestove,pleaseusethe

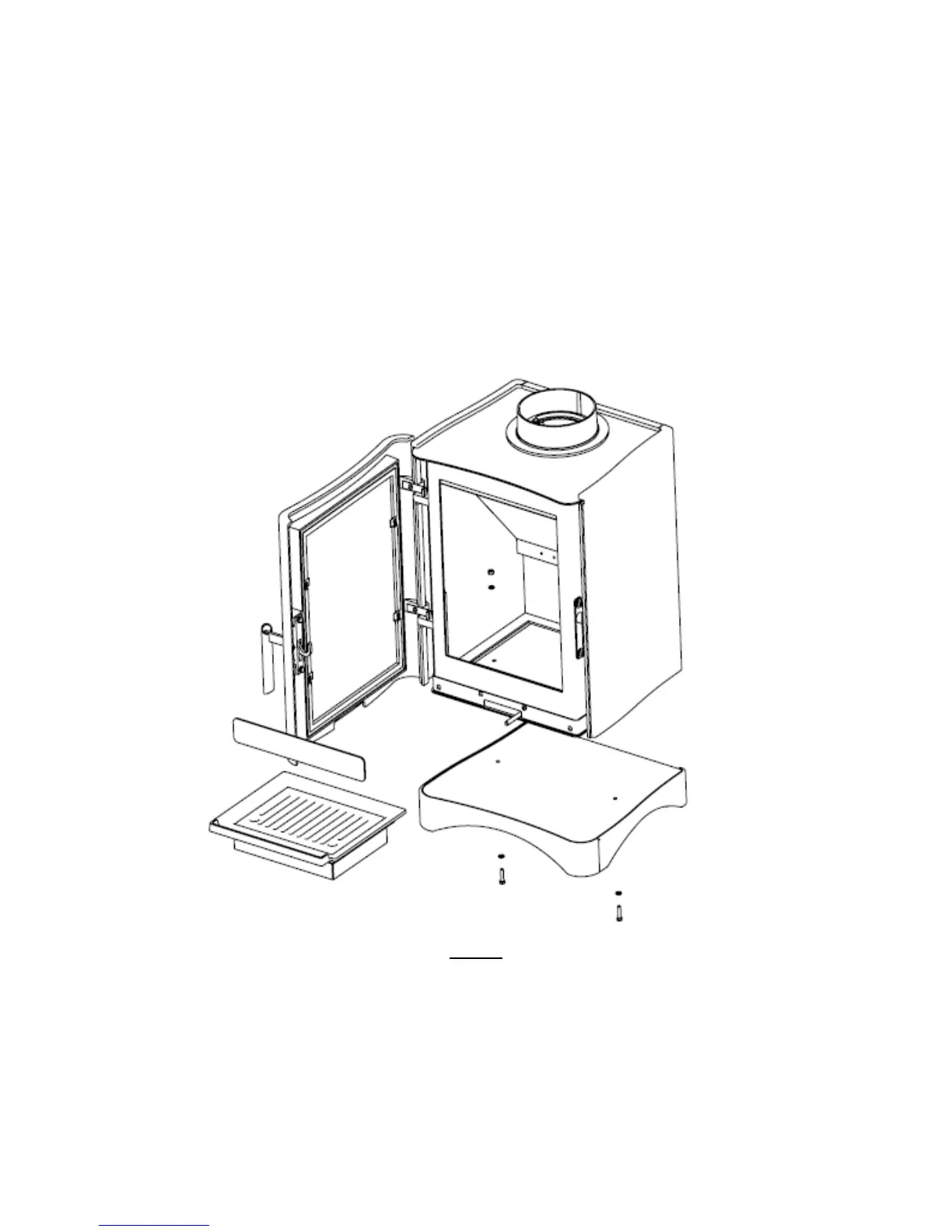

screwsprovide.(Seefigure2below).


















Figure2





