3-28

Confidential

9.5 Front cover ASSY / Support flap

 Manual feed models

(1) Open the Front cover ASSY.

(2) Remove the Collar 4 to remove the Develop joint link from the Front cover ASSY.

(3) Lift the Rib on the Front chute ASSY, and slide the Front cover ASSY in the direction of the

arrow A to remove it.

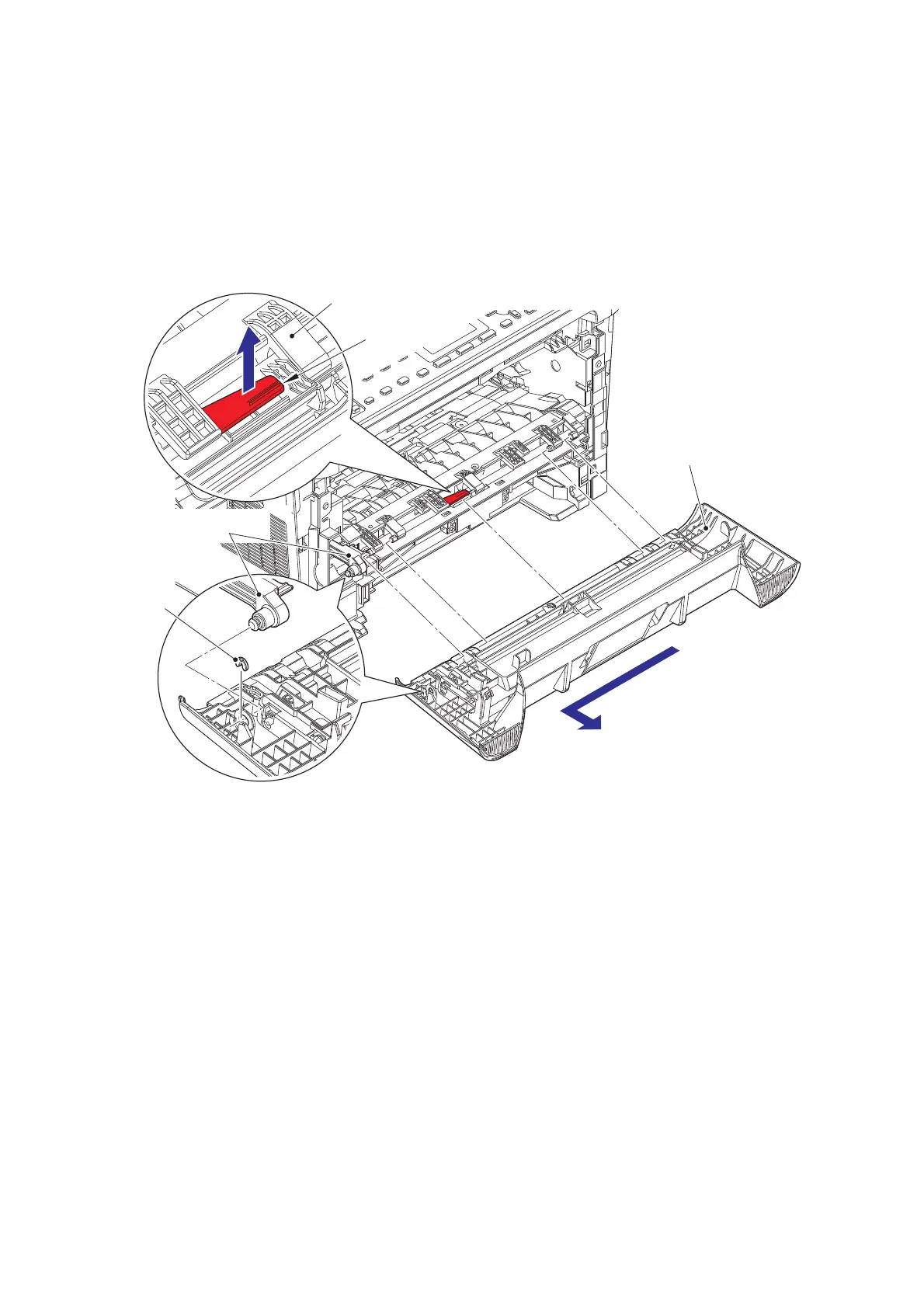

Fig. 3-13

Rib

Front chute ASSY

Develop joint link

Front cover ASSY

Collar 4
