Brother DCP-L2535DW User Manual

3-33
Confidential
9.8 Inner chute ASSY
(1) Pull down the Green envelope levers on both sides of the Fuser unit.
(2) Remove the two Taptite bind B M4x12 screws, and remove the Inner chute ASSY.

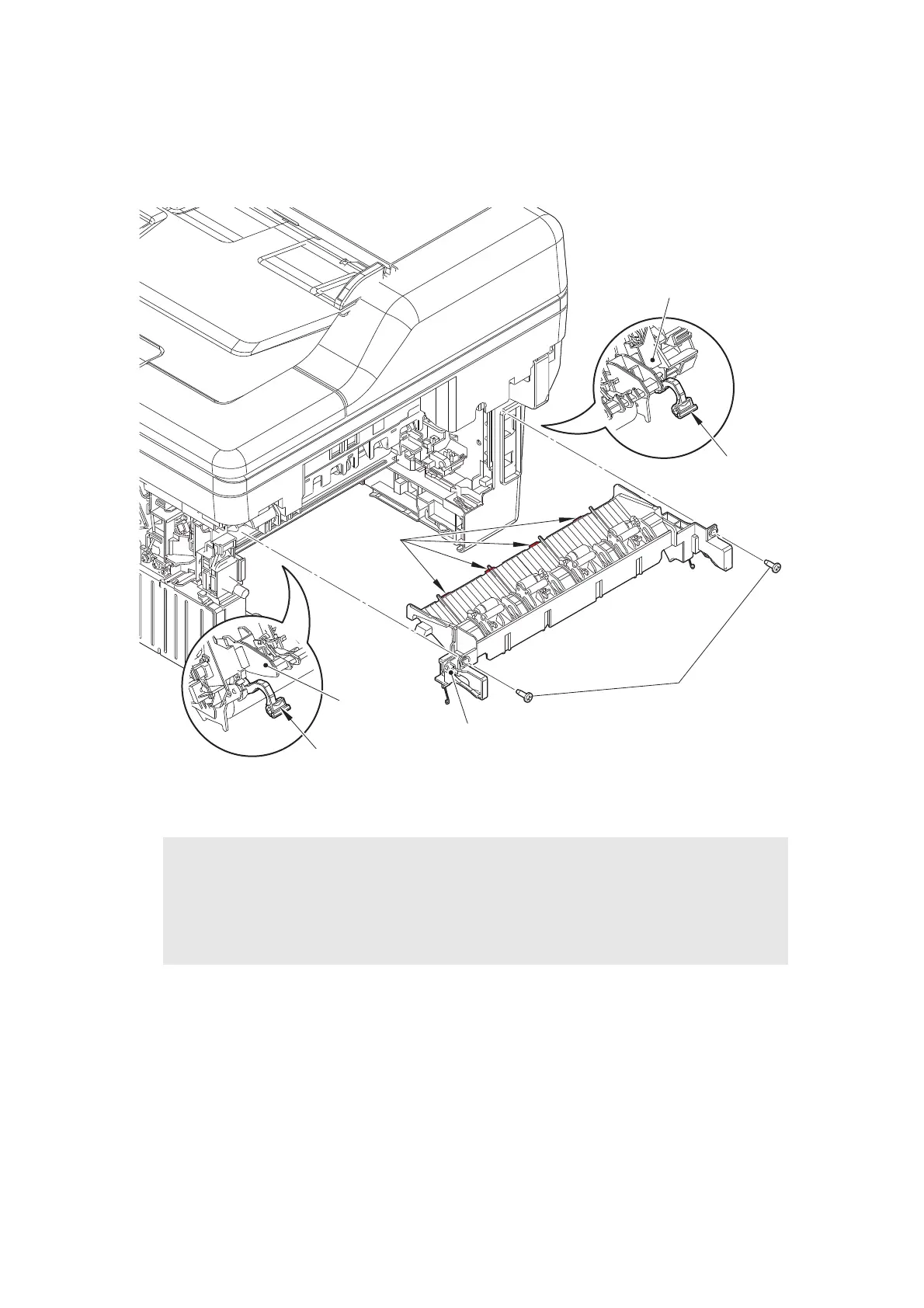

Fig. 3-20
Assembling Note:
• When attaching the Inner chute ASSY, engage the Hooks on the Inner chute ASSY
with the Positioning holes on the Joint cover ASSY.
• After assembling the Inner chute ASSY, pull up the Green envelope levers on both
sides of the Fuser unit.
Fuser unit
Hooks
Green
envelope lever
Taptite bind B
M4x12
Inner chute ASSY
Green envelope lever
Fuser unit

Brother DCP-L2535DW Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Print Speed (Black)	30 ppm
Print Resolution	2400 x 600 dpi
Copy Speed (Black)	30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	1200 x 1200 dpi
Paper Capacity	250 sheets
Display	LCD
Scan Type	Flatbed
Duplex Printing	Yes (Automatic)
Connectivity	USB, Wi-Fi
Mobile Printing	Brother iPrint&Scan, Apple AirPrint, Google Cloud Print
