Brother DCP-L2540DN Service Manual

4-8
Confidential
3.1 Entering Adjusted Value of Laser Unit
<Operating Procedure>
Common to all models
(1) Enter the maintenance mode. (Refer to “1.1 How to
Enter Maintenance Mode” in Chapter 5)
(2) Connect the machine to your computer using the USB
cable.
(3) Double-click the "BrUsbsn.exe" file that was copied to
the temporary folder in the computer to start it.

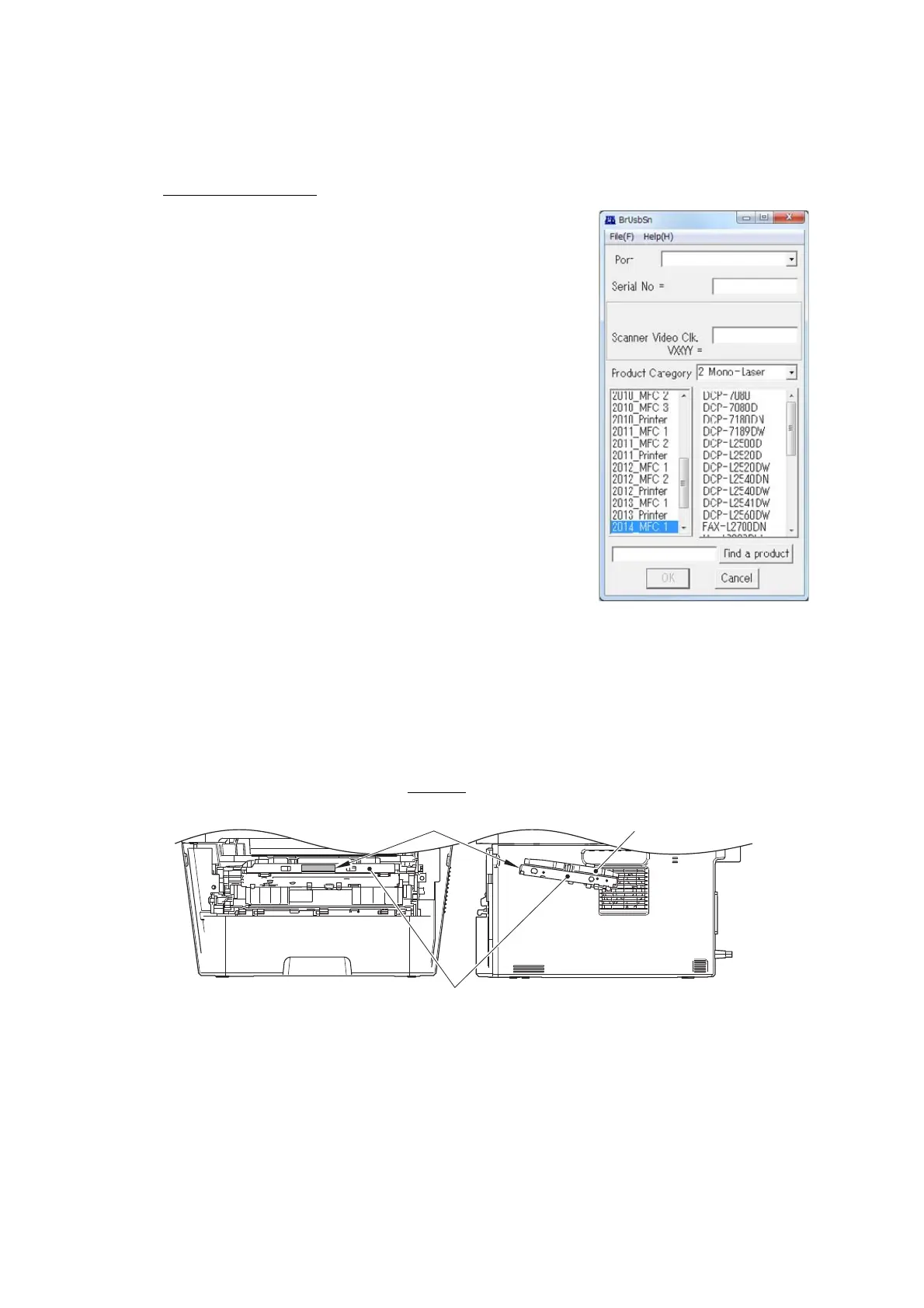

"BrUsbSn" screen shown on the right appears.
(4) Enter the model name of your machine in the [Find a
Product] field (ex: DCP-L2520D) and click the [Find a
Product] button. [Find a Product] button turns into [Find
Next] button, and model name appears in the box above
the [Find Next] button.
(5) Check if the model name of your machine is shown in
the box above the [Find Next] button. If you can not find
the model name of your machine, keep clicking the [Find
Next] button until it appears.
(6) In the [Port] field on the "BrUsbSn" screen, select the
port number assigned to the "Brother Maintenance USB
Printer".
If the port number is unknown, follow the steps below to
check it.
1) Click "Start", "Settings", and "Printers and Faxes". The "Printers and Faxes" window
appears.
2) Right-click the "Brother Maintenance USB Printer" icon.
3) Click "Properties". The "Brother Maintenance USB Printer Properties" window appears.
4) Click the "Ports" tab. The Brother Maintenance USB Printer port number is displayed.
(7) Check the laser serial number label attached to the location shown in the figure below.
(8) Enter the five digits of the laser serial number in the [Scanner Video Clk] field.
ex.) SN011406058461734753
Fig. 4-2
(9) Click the [OK] button. The adjusted value of laser unit is written to the machine.
(10) Turn OFF the power switch of the machine and disconnect the USB cable from the
machine and computer.
Laser unit
Laser serial number label
Scanner plate

Brother DCP-L2540DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Duplex print speed (color, normal quality, A4/US Letter)	6.5 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4, 6, 9, 16, 25
Time to first copy (black, normal)	10 s
Copy speed (black, normal quality, A4)	26 cpm
Scan to	E-mail, File, FTP, Image, OCR
Scan drivers	ICA, SANE, TWAIN, WIA
Grayscale levels	256
Input color depth	30 bit
Maximum scan area	A4 (210 x 297) mm
Output color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Faxing	No
PCL fonts	66
Printing colors	Black
Maximum duty cycle	10000 pages per month
Recommended duty cycle	250 - 2000 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, GDI, Microsoft XPS, PCL 6, PDF 1.7
Processor family	ARM9
Sound power level (standby)	33 dB
Sound pressure level (printing)	50 dB
Sound pressure level (quiet mode)	45 dB
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	100 sheets
Multi-Purpose tray input capacity	1 sheets
Auto document feeder (ADF) input capacity	35 sheets
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Auto Document Feeder (ADF) media weight	64 - 90 g/m²
Display	LCD
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Cabling technology	10/100Base-T(X)
Security algorithms	APOP, SMTP-AUTH, SNMP
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port 9100, IPP, FTP Server, SNMPv1/v2c/v3, HTTP Server, TFTP Client/Server, SMTP Client, ICMP, Web Services (Print/Scan), SNTP Client, POP3, IMAP4
Supported network protocols (IPv6)	NDP, RA, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/ Port 9100, IPP, FTP Server, SNMPv1/v2c/v3, HTTP Server, TFTP Client/Server, SMTP Client, ICMPv6, Web Services (Print/Scan), SNTP Client, POP3, IMAP4
Direct printing	-
Standard interfaces	Ethernet, USB 1.1, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1104 W
Power consumption (off)	0.08 W
Power consumption (standby)	60 W
Power consumption (PowerSave)	6.6 W
Power consumption (average operating)	510 W
Minimum storage drive space	500 MB
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	Nordic Swan Ecolabel, Blue Angel, ENERGY STAR
Package depth	567 mm
Package width	517 mm
Package height	435 mm
Package weight	14200 g
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	409 mm
Width	398.5 mm
Height	316.5 mm
