Brother JS1410 User Manual

Application of
Assembly
3 - 35
Bobbin winder, Upper shaft, Needle-Presser module
Application o
f
Assembly
Application of
Assembly

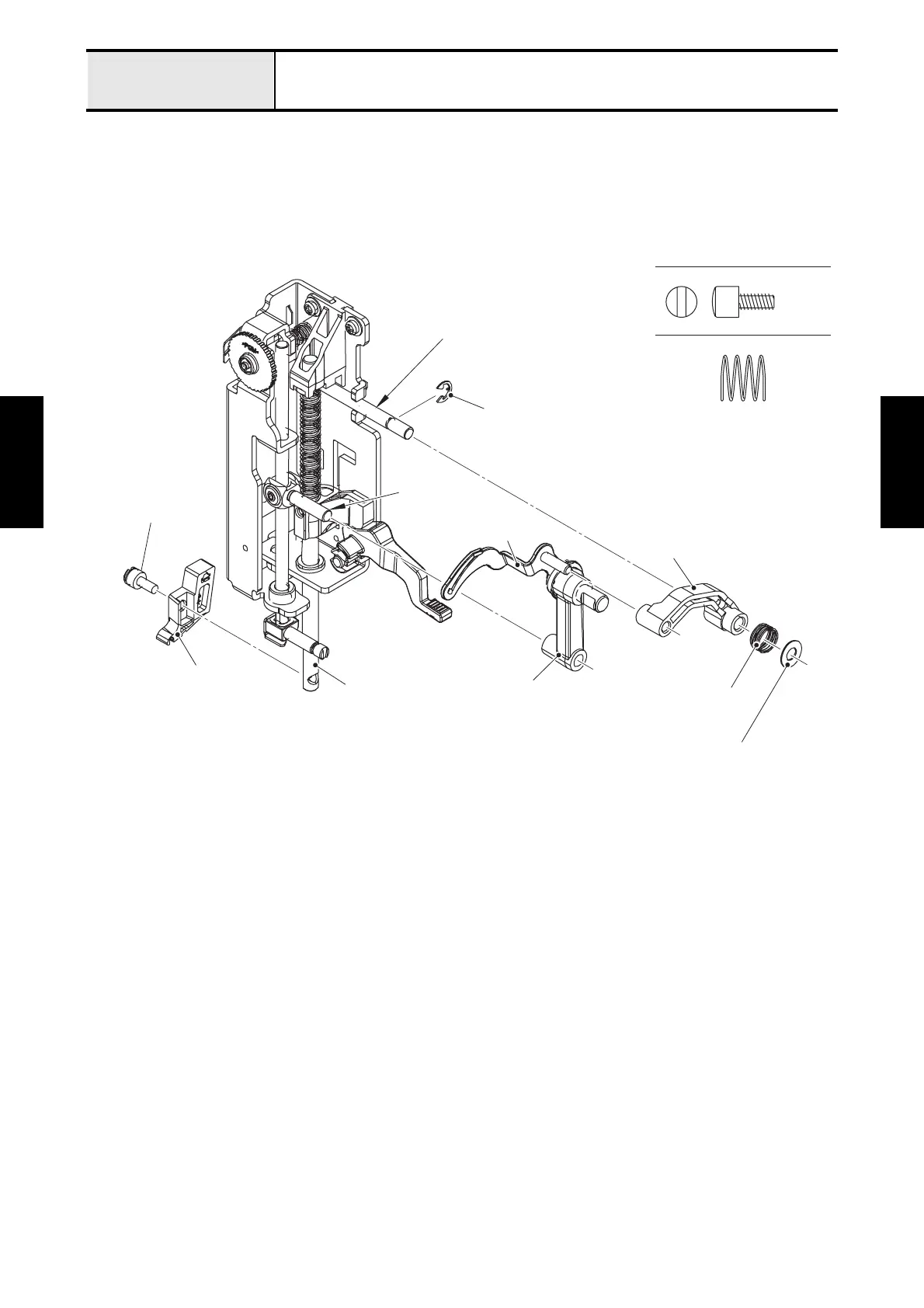

12.Set the thread take-up lever and the needle bar crank rod assy to the needle bar block shaft of needle
bar crank rod assy.
13.Set the thread take-up lever link to the shaft and the shaft of thread take-up lever. And set the spring
(XF3413) and the washer, and attach the retaining ring E4.
14.Set the presser foot holder to the presser bar sub assy, and secure it with the screw (tightening screw
3.57).
Tightening screw 3.57
Spring (XF3413)
Tightening screw 3.57
Presser foot holder
Retaining ring E4
Needle bar
block shaft
Thread take-up lever
Needle bar
crank rod assy
Thread take-up lever link
Spring (XF3413)
Washer
Shaft
Presser bar sub assy
