9.11.3ADF cover ASSY, Document stopper

(1) Open the ADF cover ASSY. Release the two bosses to remove the ADF cover ASSY

from the ADF unit.

(2) Release the two bosses to remove the document stopper from the ADF unit.

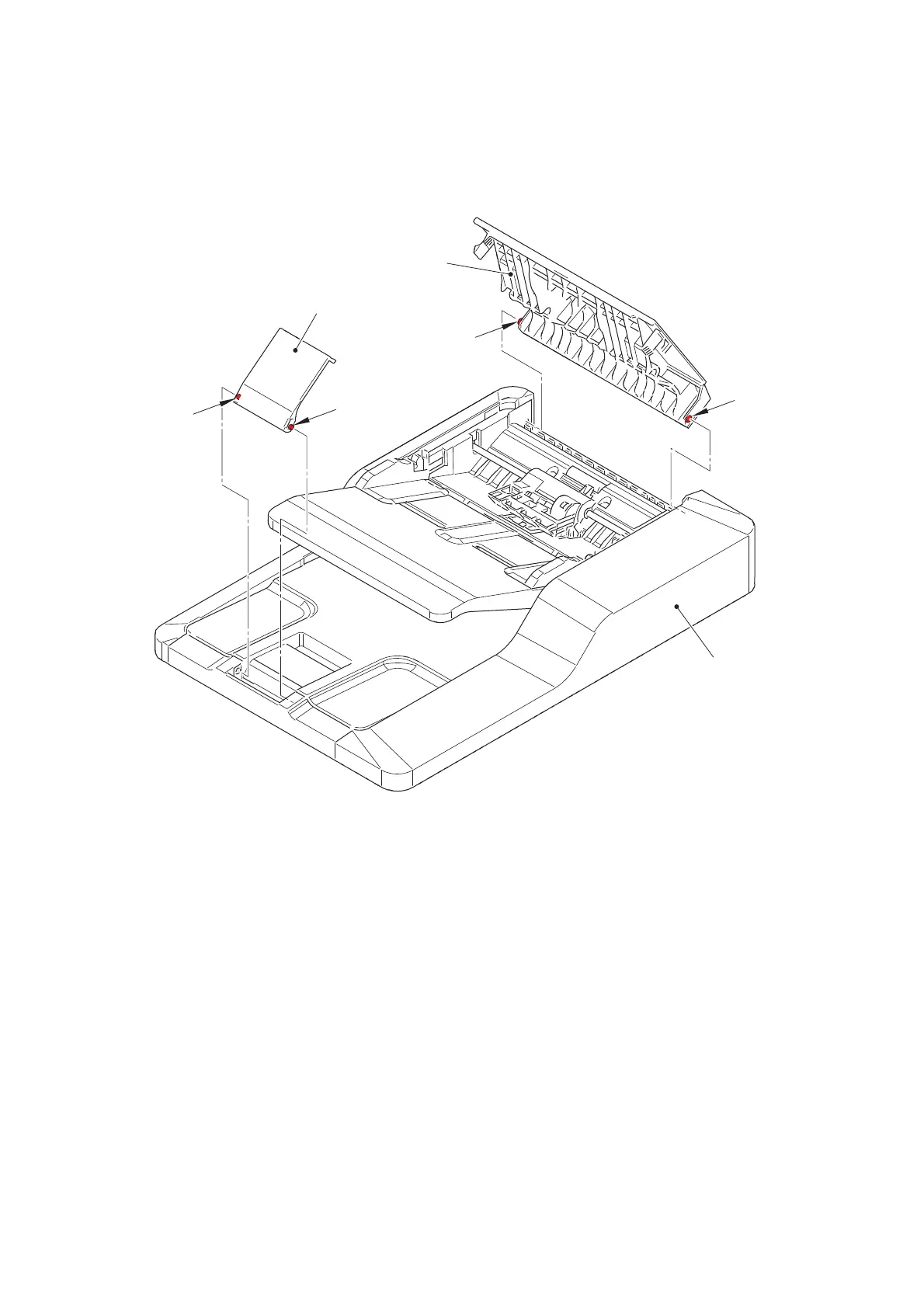

Fig. 3-37

Boss

ADF cover ASSY

Document stopper

ADF unit
