3 - 83
Feed unit
Main unit
Assembly

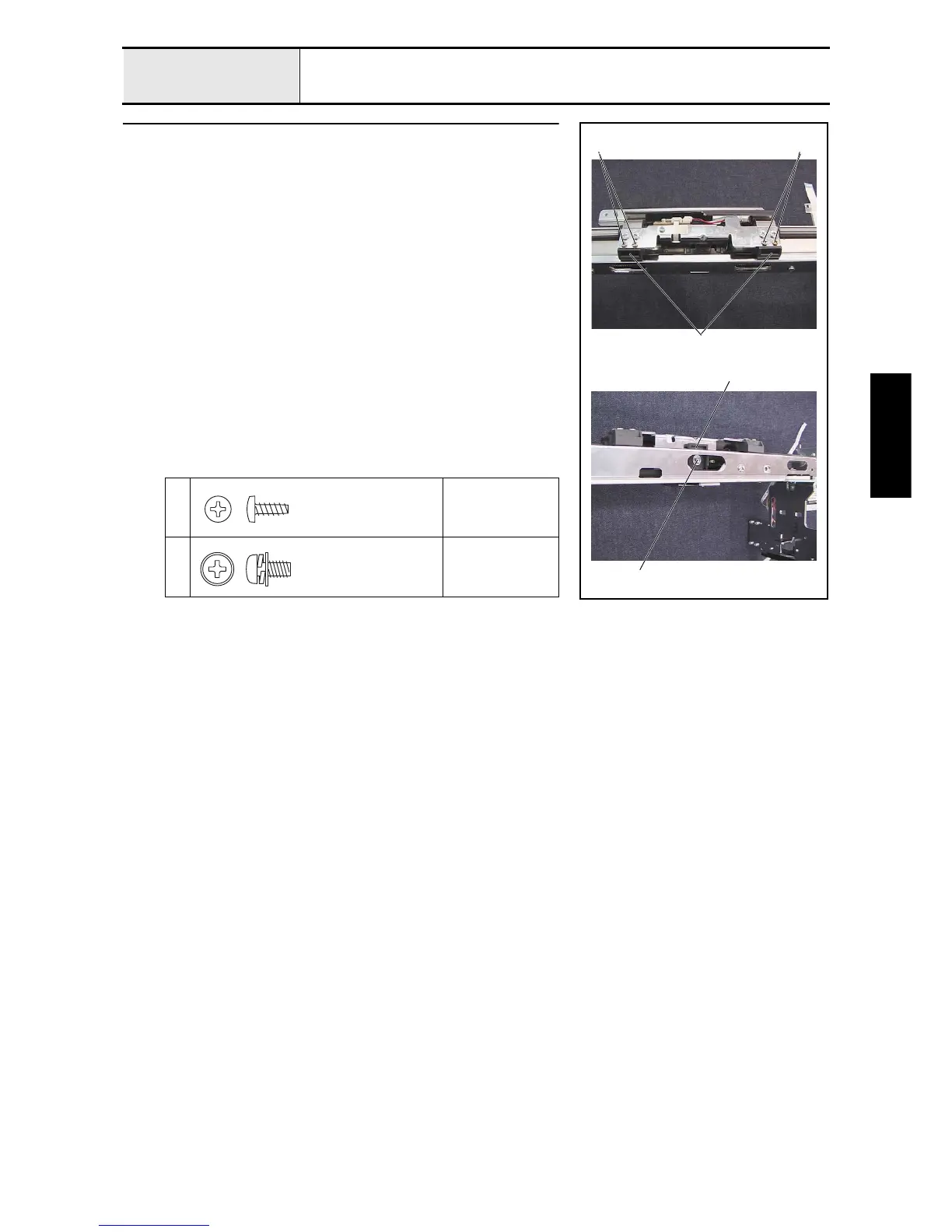

11 Y-frame spacer and X-belt presser attachment
1. Attach the 2 Y-frame spacers 1 to X-carriage B with the 4 screws 1.
2. Align the X-belt presser 2 with the highest point of the T-belt, and then
attach the X-belt presser to X-carriage B. Secure them with the screw 2.
1
Torque
0.39 – 0.78 N-m
2
Torque
0.78 – 1.18 N-m
2
2
1 1
1
Taptite, Bind B
M3X8
Screw, Pan (S/P washer)
M4X8DA
