Removing/Replacing Cutting Blades

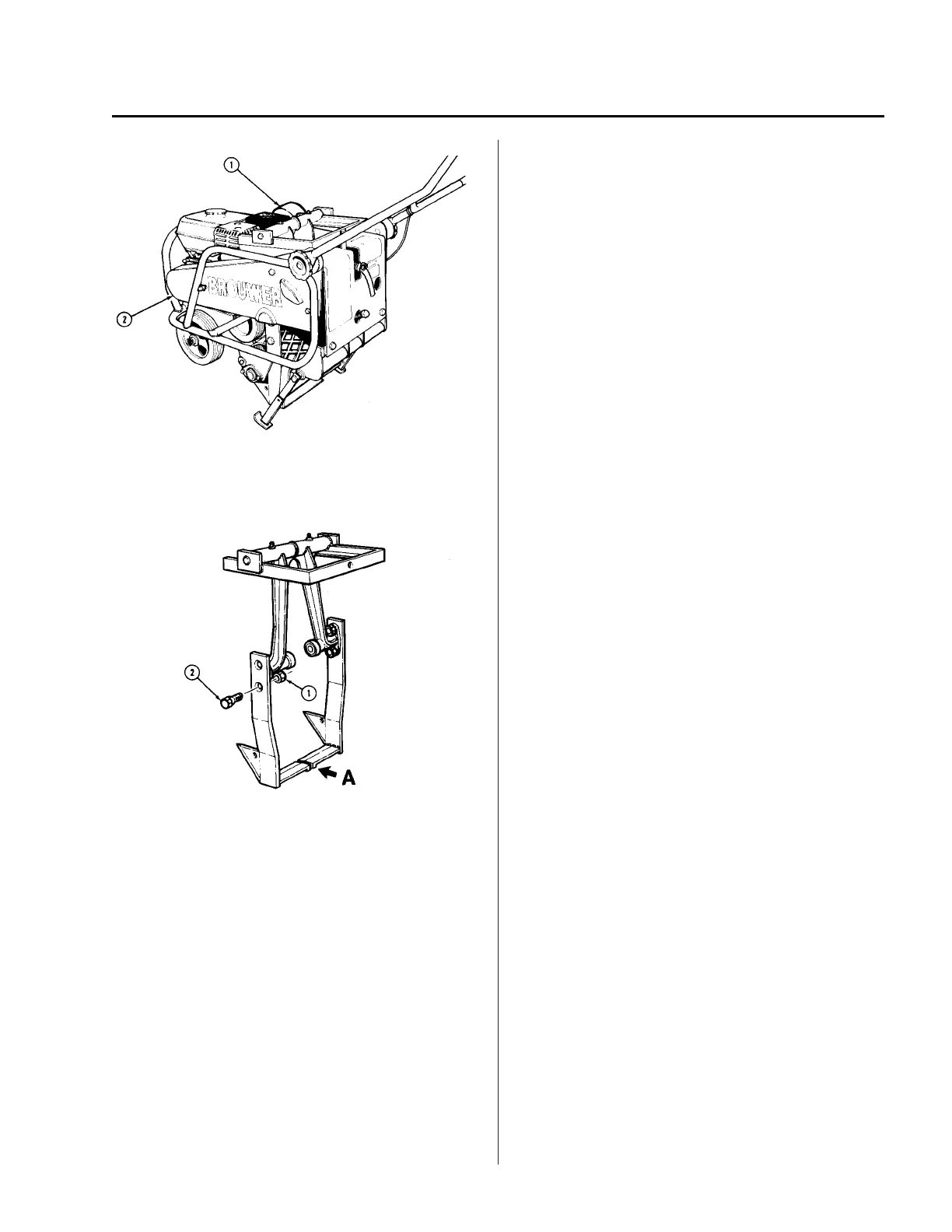

See Drawing 16. Place unit on kickstand. Remove
the chain guard (1) and main drive belt guard (2).
See Drawing 17. Remove the self locking nuts (1)
and special bolts (2) from both sides. Remove
blades. Replace sharpened, or new, blades in
reverse procedure.
NOTE: On reassembly, the bolts (2) must be
tightened to the correct torque of 105 ft.lbs. Check
that there is no contact between the blades at point
“A”.
