Assembly
18

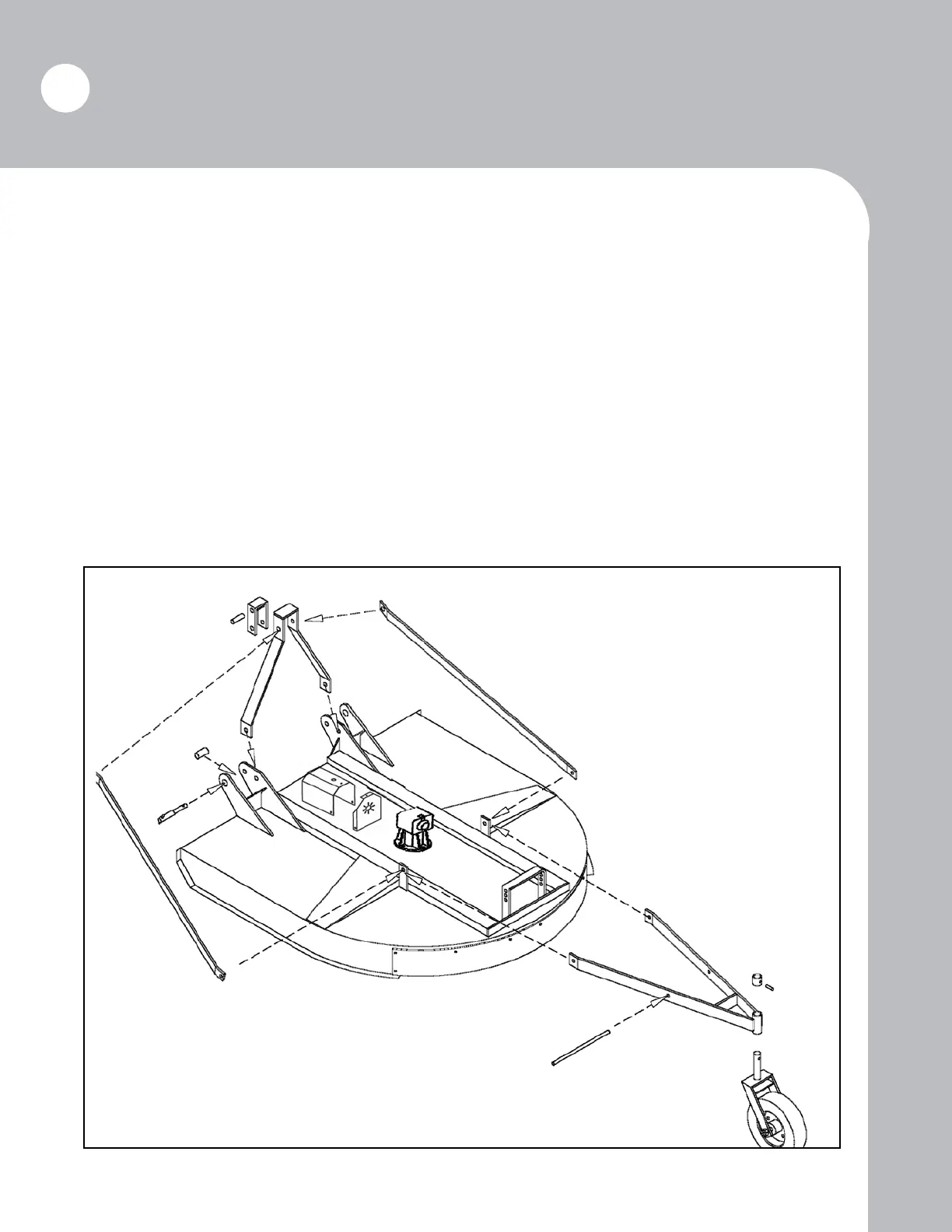

1. Fold tailwheel arm back from its shipping position toward the height adjustment brackets. Install
tailwheel stem into fork holder tube, placing collar over stem and inserting roll key through collar and
stem. Install height adjustment pin through arm and bracket. Assembly for models 460D and472D
and 484 is almost identical to that of the 460 and 472; the 460D, 472D and the 484 have twin tail
wheels and require this step to be completed twice.
2. Install A-frame braces to outside of front tailwheel brackets. Remove bolt from top of A-frame and
mount A-frame braces to outside surface of A-frame.
Note: Keep top toggle in position when reinstalling A-frame bolt.
3. Raise the cutter with a tractor and properly adjust the tailwheel height. Next, reinstall lynch pins
into height adjustment pin.
Note: Proper cutting height is covered on the following page.
4. Tighten all bolts securely.
